Total connected loads GS 630
48 English
19 Total connected loads GS 630
Voltage Fuse
Tank
heating
Boiler
heating
Pumps + Control
unit
Total connected
load
380 – 415 V 3 N~ 16 A 5.3 kW 5.3 kW 1.8 kW 7.1 kW
230 V 3 ~ 20 A 4.9 kW 4.9 kW 1.7 kW 6.6 kW
380 – 415 V
Australia
3 N~ 16 A 6.5 kW 6.5 kW 1.8 kW 8.7 kW
200 V 3 ~ 25 A 4.9 kW 4.9 kW 1.7 kW 6.6 kW
20 Niche dimensions GS 630

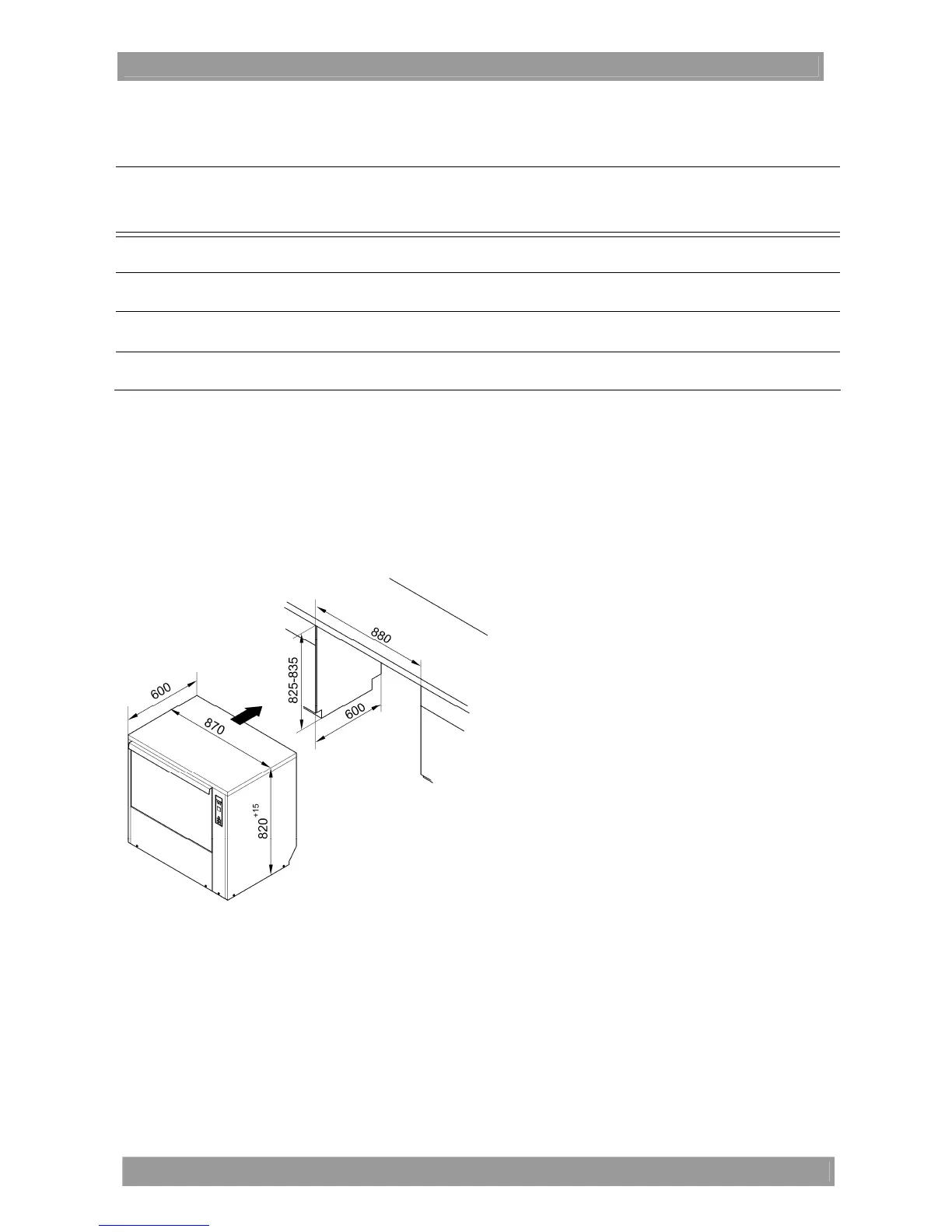

If the machine is to be installed into a counter, the following niche dimensions must be adhered to.
It is not necessary to secure the machine in the counter.
In the vicinity of the machine, use furniture that is appropriate for commercial areas in order to prevent
damage to the machine due to steam.
Dimensions in mm
For further machine dimensions, see page 46
