Wisenet PNM-9002VQ User Manual

installation & connection
12_ installation & connection
Frame wall
VIDEO
CH1
CH2
CH4
LENS
CH3
RESET
CH
1
0
1
0
VIDEO
CH1
CH2
CH4
LENS
CH3
RESET
CH
1
0
1
0

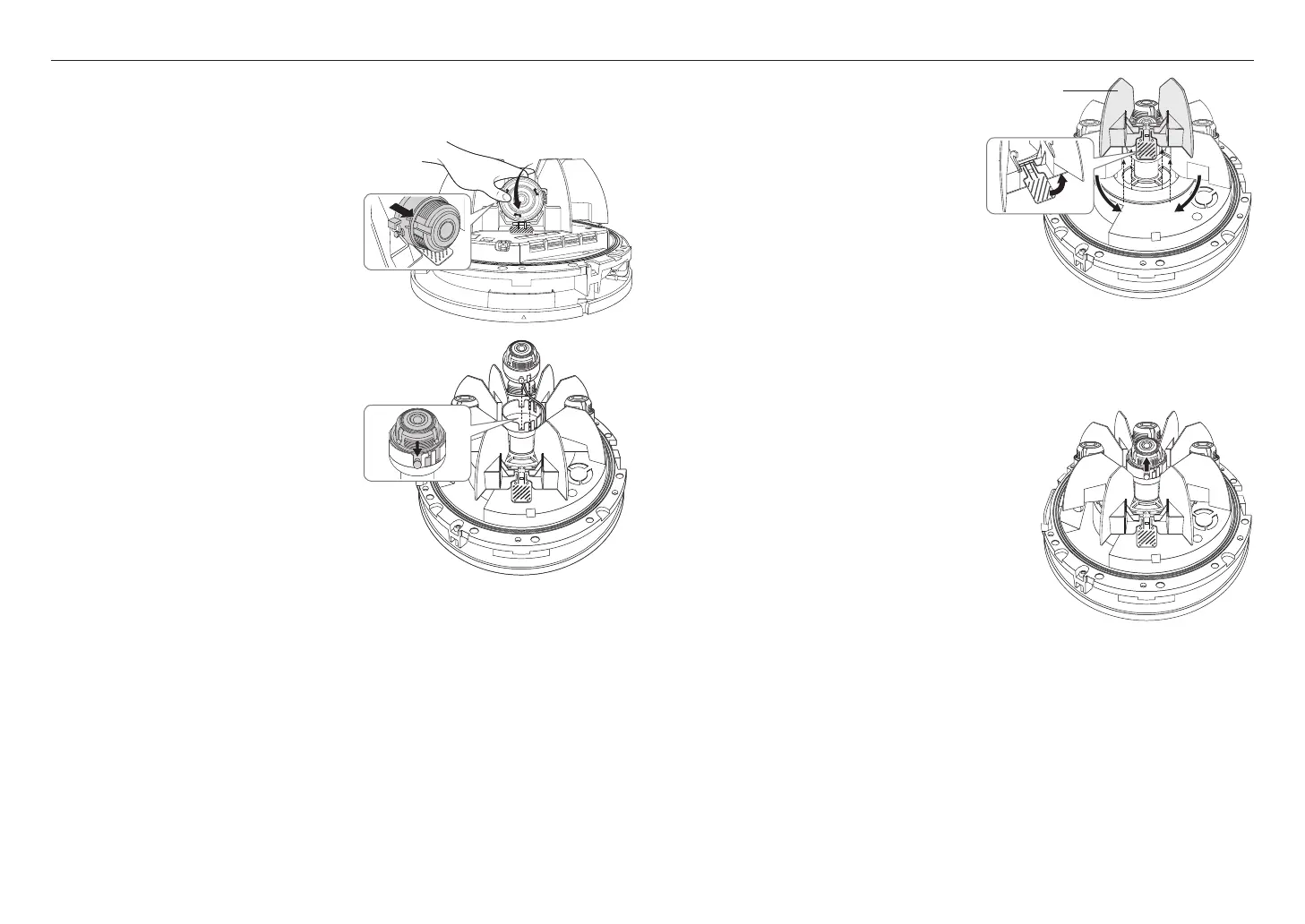

How to install using the perpendicular falling method
You can move the lens for only one channel to see the video after installing it in the direct-lit manner.
In this case, the lens direction of the moved channel can be tilted up to 90 degrees.
1. Tilt the lens module part forward-facing and then pull it.
2. Align the groove with the center of the rotating part.
3. Lift the part with diagonal lines to release the frame
wall.
4. Move the three channel lenses along the bottom rail.
How to install using the tilting method
You can move the lenses of CH1 - CH4 along the bottom rail to view videos by installing them using the
tilting method.
In this case, the orientation of the lens cannot be tilted by 90 degrees.
1. Mount the frame wall.
2. Remove the direct-lit lens from the rotation center.
3. Move the four channel lenses along the bottom rail.
