GMZ-E Operating manual Page 10 of 31 B0668
3.5 Technical data
3.5.1 Group of components
The pump unit GMZ-E consists of up to 3 groups of components which may vary, depending
on the specification of the pump:
 Pump body with motor
 Barrel lid (optional)
 Grease follow-up plate (optional)

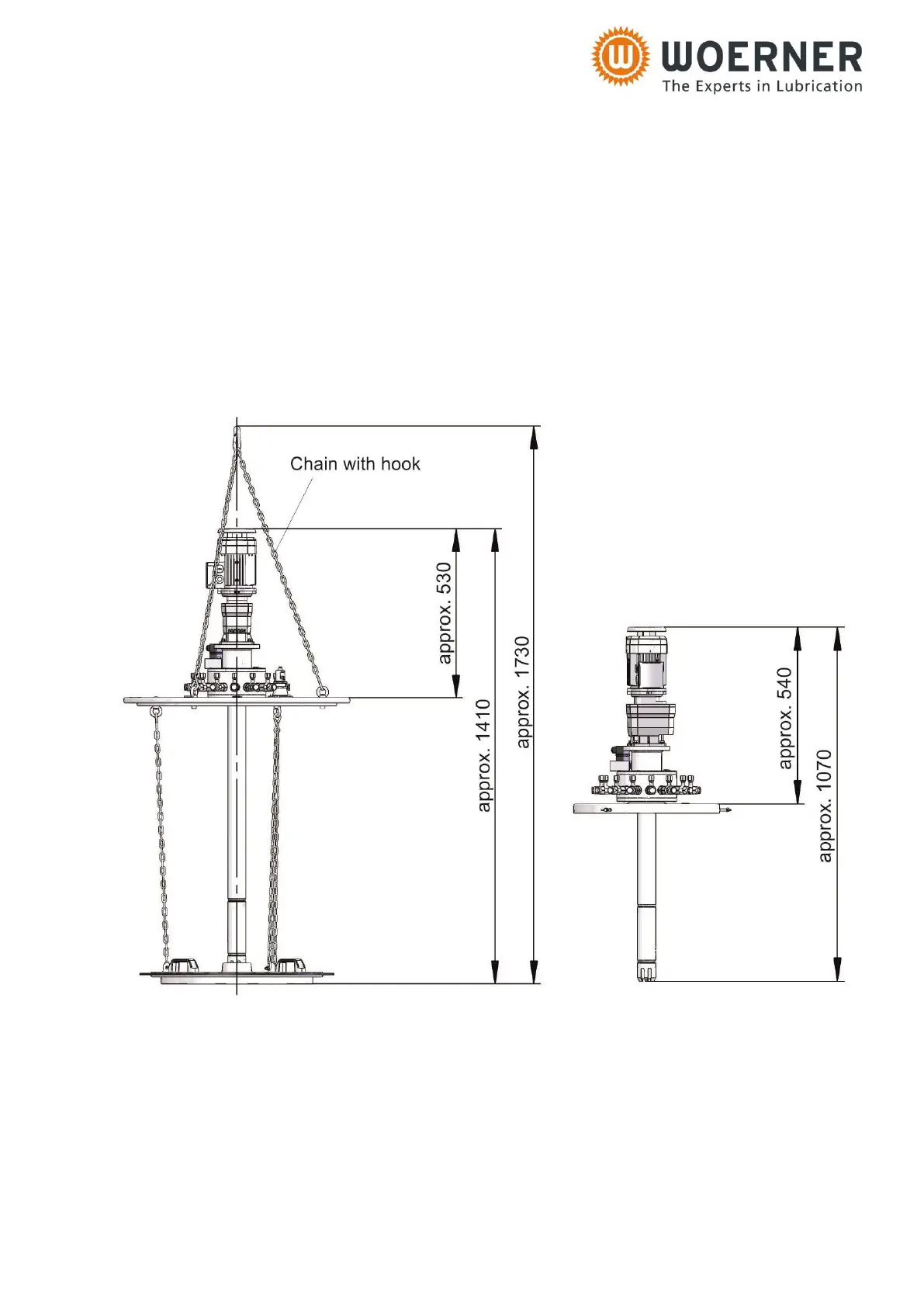

3.5.2 Dimensions
Pump unit for 200 l barrel Pump unit for 50 l barrel
Dimensions:
with option of barrel lid ø700 mm ø438 mm
Weight: approx. 45 kg approx. 33 kg
Inclusive of barrel lid
and follow-up plate
