Outputsetting(parameterGB04orHG04)
TheoutputsettingcanbemodiedwithWolfcontrolaccessorieswitheBUScapability.
The heating output is determined by the gas fan speed. By reducing the gas fan speed in accordance with the table, the maximum
outputwillbematchedat80/60°CtonaturalgasE/H/LLandLPG.NaturalgasLLisnotapplicableforAustria/Switzerland.LNG
is not applicable for Switzerland.
21.Limitingthemaximumoutput
CGB-75
Heatingoutput (kW) 18 22 25 29 33 37 40 44 48 51 55 59 63 66 70
Display value (%) 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Table: Output settings
CGB-100
Heatingoutput (kW) 18 23 28 34 39 44 49 55 60 65 70 75 81 86 91
Display value (%) 25 30 36 41 46 52 57 63 68 73 79 84 89 95 100

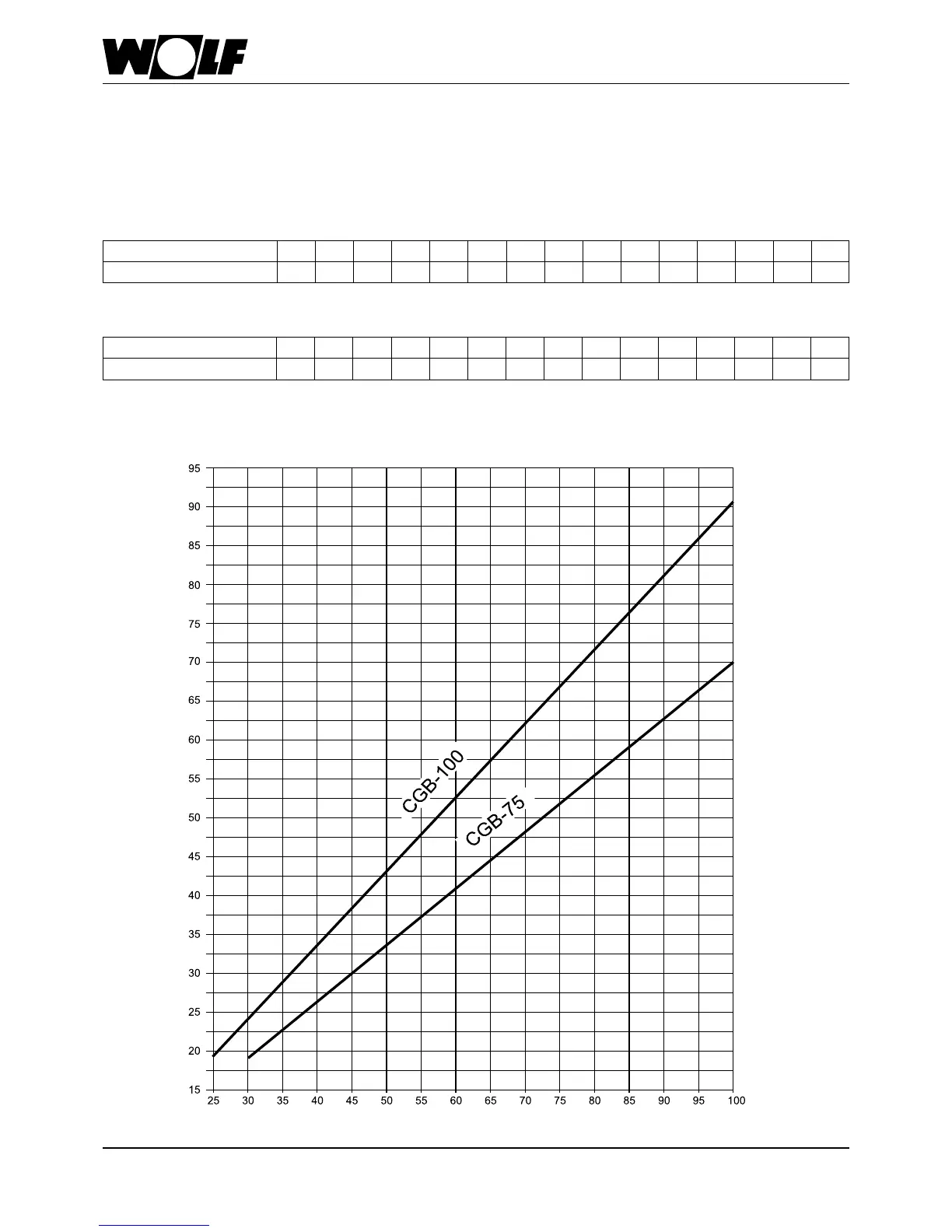

Limitingthemaximumheatingoutputrelativetoaow/returntemperatureof80/60°C
SettingsforparameterGB04/HG04orwithWolfconnectionaccessorieswitheBUScapabilityin[%]
MaximumoutputinkW
