Convection Steam Oven (CSO24)
Installation Information
2-6
#821162 - Revision A - January, 2012

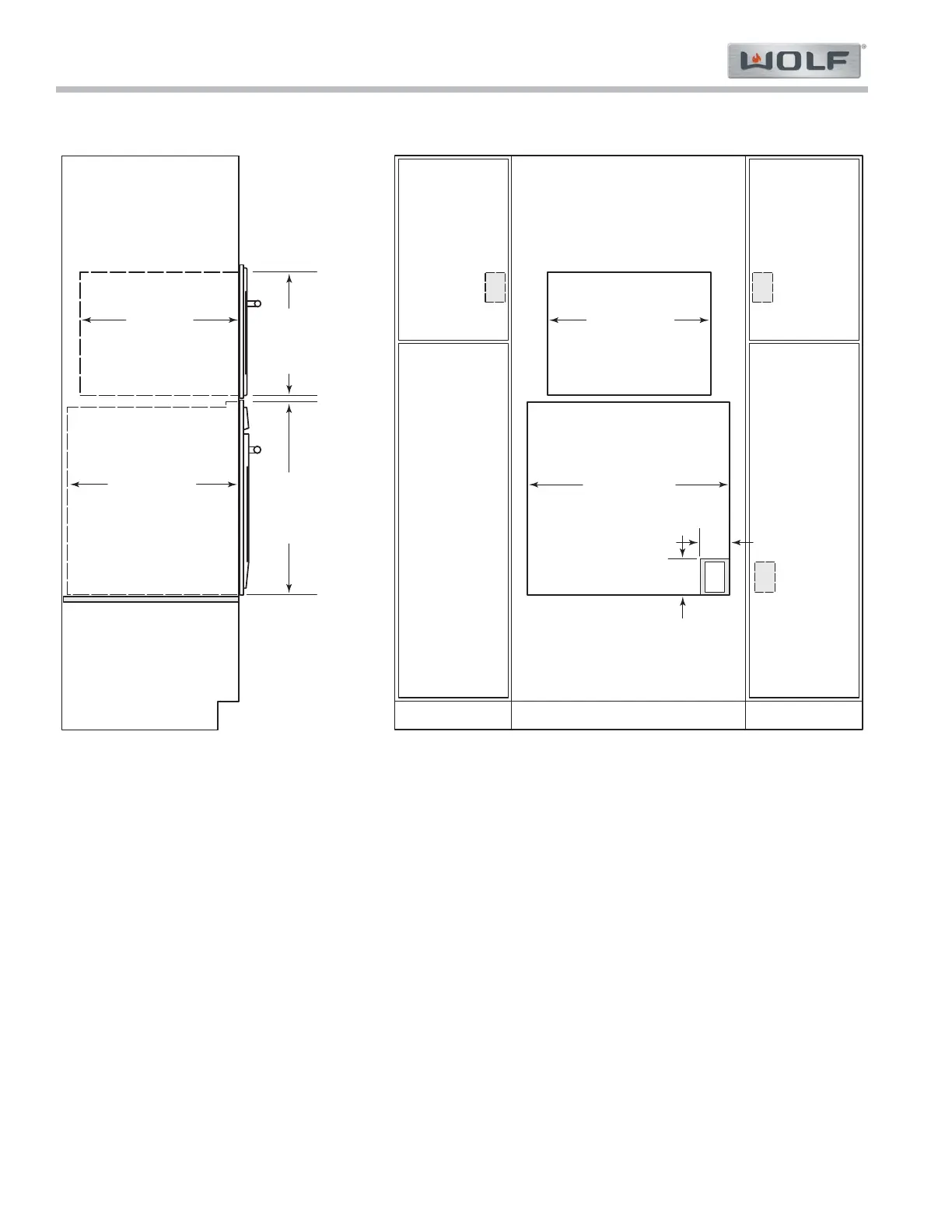

Standard Installation with L-Series Wall Oven
FRONT VIEWSIDE VIEW
28
1
/2" (724)
L SERIES OVEN
OPENING WIDTH
E
E
5"
(127)
4"
(102)
NOTES: Minimum base support for steam oven 100 lbs (45 kg) and L series oven 250 lbs (113 kg).
Electrical supply for steam oven must be located in adjacent cabinet within 3'
(.9 m) of opening.
Location of electrical supply within L series oven opening may require additional cabinet depth.
Dashed line represents profile of unit.
24" (610) min
OPENING DEPTH
27
3
/16"
(691)
OPENING
HEIGHT
3
/16"
(5) min
17
11
/16"
(449)
OPENING
HEIGHT
21
9
/16"
(548) min
OPENING DEPTH
22
1
/4" (565)
STEAM OVEN
OPENING WIDTH
EE
