Induction Cooktop
Installation Information
2-9

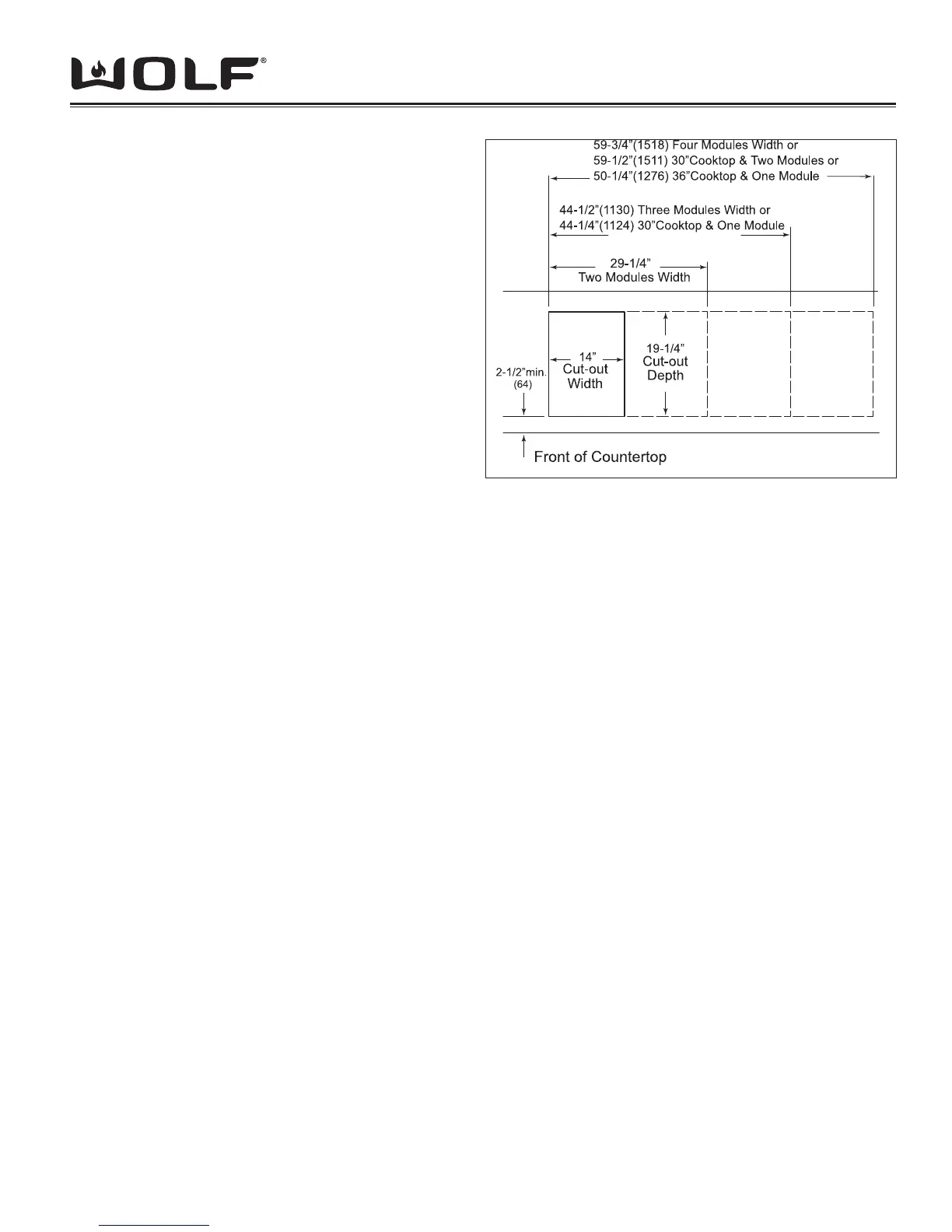

Figure 2-9 Multiple Cooktop Arrangements
Multiple Cooktop Installations
If the induction cooktop is to be used with any
combination of additional cooktop units or modules with
a fi ller strip, the cut-out width is calculated by adding
the corresponding units’ cut-out dimensions plus 1-1/4”
(32mm) for each additional unit. (See Figure 2-9)
NOTE: For Model CT15I, the cut-out width should be
increased from 13-3/8” (340mm) to 14” (356mm) when
installed with multiple units.
NOTE: When multiple units are installed side by side,
each unit must have its own separate recommended
electrical circuit.
NOTE: It is recommended that you operate the Wolf
induction cooktop with either a Wolf cooktop ventilation
hood, downdraft system or Pro ventilation hood.
When two or more modules are installed together,
an integrated module fi ller strip (IFILLER/S) is
recommended. If a 30” (762mm) downdraft ventilation
system is also installed, an integrated module support
for downdraft ventilation (ISUPPORT) is also required.
Contact your Wolf dealer for information on these
accessory components.
Ventilation Options
NOTE: It is recommended that you operate the Wolf induction cooktop with either a Wolf cooktop ventilation hood,
downdraft system or Pro ventilation hood. Contact your Wolf dealer for details.
The following is a list of ventilation units that can be used with the induction cooktops.
Cooktop Wall Hood – 30” (762) or 36” (914) widths in classic stainless steel.
Cooktop Island Hood – 42” (1067) width in classic stainless steel.
Downdraft Ventilation System – 30” (762), 36” (914) or 45” (1143) widths, with top cover and control panel in classic,
platinum and carbon stainless steel fi nishes. 45” (1143) downdraft available in classic fi nish only.
Pro Wall Hood – 22” (559), 24” (610) or 27” (686) depths and 30” (762) to 66” (1676) widths in classic stainless steel.
Pro Island Hood – 36” (914) to 66” (1676) widths in classic stainless steel.
Pro Hood Liner – available in widths to accommodate 36” (914) to 60” (1524) hoods.
NOTE: When installing a ventilation hood, refer to the specifi c requirements of the hood for the minimum dimension to
counter top.
