Induction Cooktop
Electronic Control
3-7
Hot Surface LED
As an added safety precaution, a hot surface indicator
light will illuminate when the surface temperature of the
glass is above 65°C. Even if the cooktop controls are
turned off, the indicator light will illuminate to show the
user that the cooktop surface remains hot. (See Figure
3-3)
Universal “OFF” Key
In an emergency situation where there is a need to turn
off all heating elements, press the universal “OFF” touch
pad to turn the entire unit off. (See Figure 3-3).
Induction Wattage and Hi Power Boost for 36” Units
Only two elements can have the “Boost” function on at a
time.
If all elements are on “High”, and the front left inductor
Boost is engaged and then the back right inductor Boost
is engaged, the power level of the 4000 W element will
be limited to 3600 W. The power distribution can be seen
in Figure 3-5. The middle back inductors Boost function
will not work.
If all inductors are on High, and the front left inductor
Boost is engaged and the middle back inductor Boost is
engaged, the 4000 W Boost will not work. This power
distribution can be seen in Figure 3-6.
NOTE: If one inductor is not on High these rules do not
apply.
Hi Power Boost 15” and 30” Units
Turn on and activate element as described on the
previous page. Touch “HI POWER” to boost the rear
element wattage output from 1800W maximum to 3000W
maximum. Indicator light under “HI POWER” touch pad
will be illuminated.
NOTE: When “HI POWER” is active, the corresponding
1200W element will be limited to 600W maximum output,
and LEDs will display this change in power.
Touch “HI POWER” again to de-activate “HI POWER”
mode. The light under “HI POWER” touch pad will go
out.
CLEAR
OFF
888
HOT
Lock
Pad
Universal Touch Pads
Hot Surface
LED

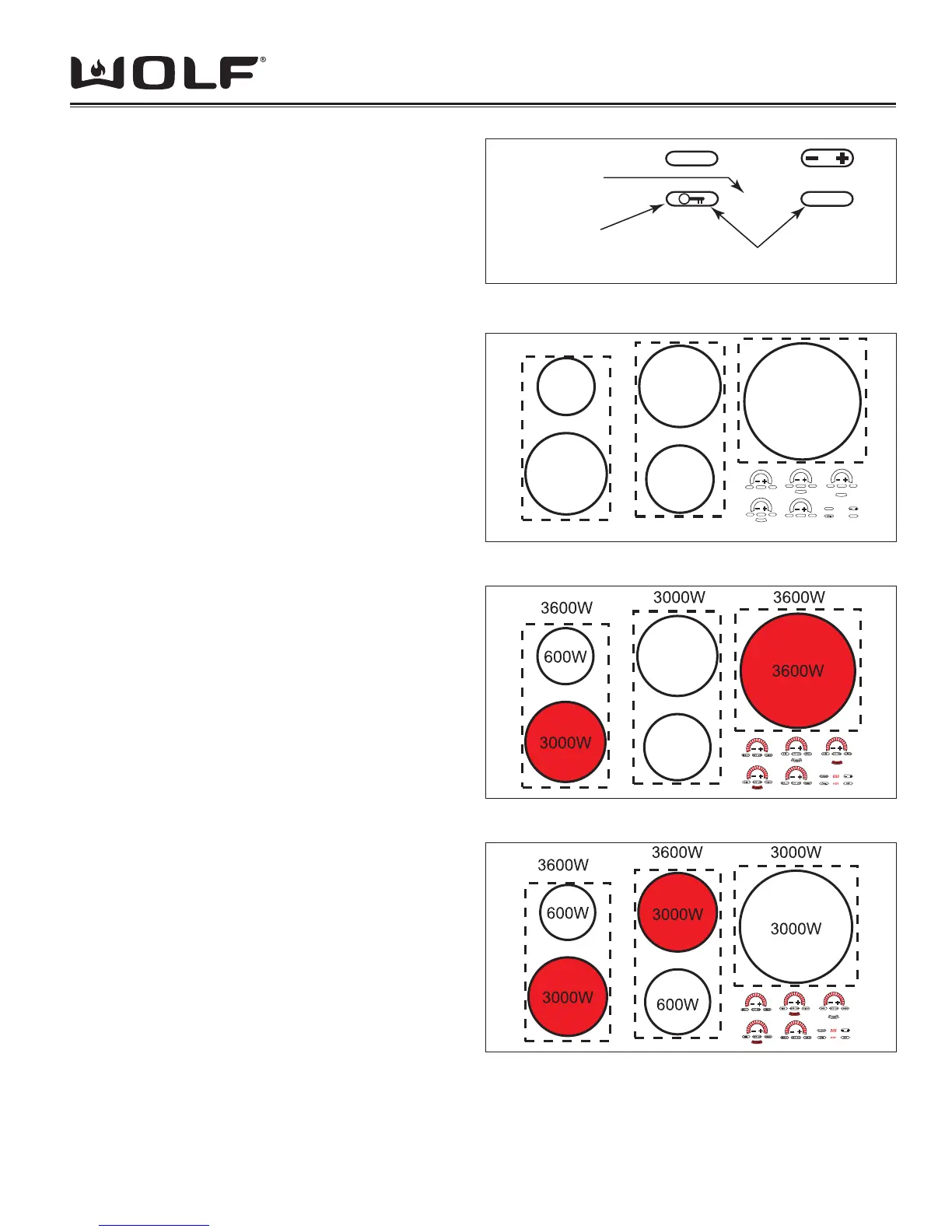

Figure 3-3 Global Controls
1800W/
1200W
1200W
MELT
OFF ON
HIGH
MELT
OFF ON
HIGH
CLEAR
OFF
888
HOT
OFF ON HIGH SIM
H
I
P
O
W
E
R
OFF ON HIGH SIM
H
I
P
O
W
E
R
OFF ON HIGH SIM
H
I
P
O
W
E
R
3000W Boost
1800W/
3000W Boost
Generator 1 Generator 2
Generator 3
3000W/
4000W Boost
Figure 3-4 Unit Wattage Layout
1800 W
1200 W
Figure 3-5 With Boost Activated Combination #1
Figure 3-6 With Boost Activated Combination #2
