Induction Cooktop
Access and Removal
4-3

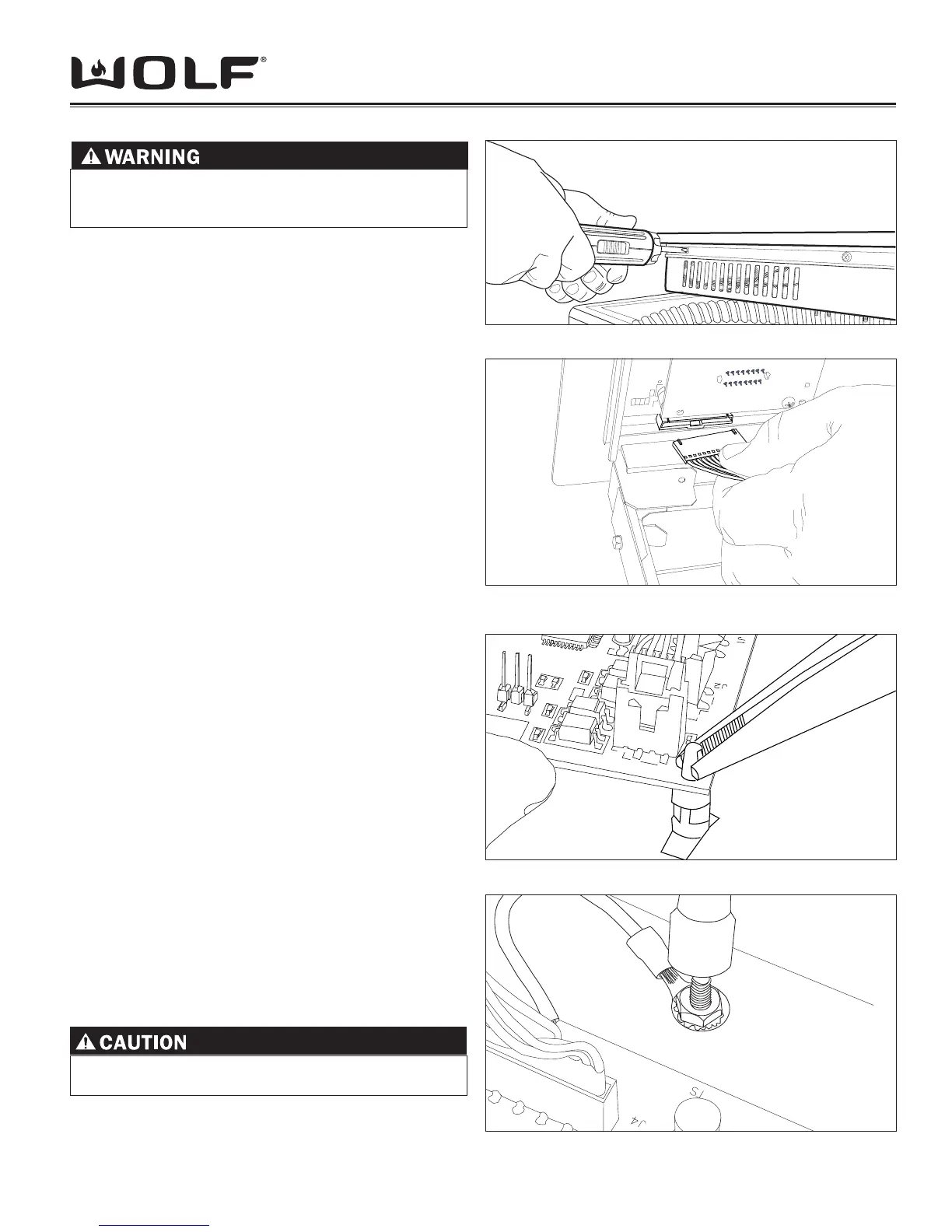

Glass Top Assembly Removal
The cooktop will need to be removed from its installation
in order to remove the glass top assembly.
NOTE: Refer to the installation section of this manual
or the Installation Guide included with the cooktop for
additional information needed.
Extract screws that secure the glass top and trim to 1.
burner box. (See Figure 4-1).
Next, carefully lift glass top up until access to control 2.
board cable connection is obtained.
Locate cable cable connector on glass top, gently 3.
disconnect from control board. (See Figure 4-2)
NOTE: There is a clip that needs to be depressed in
order to disconnect the cable from the display board.
NOTE: Care must be taken to protect glass surface from
scratches or damage. Place on protective surface.
Control Board Removal
Glass top must be fi rst removed - consult removal 1.
procedure in this section.
Disconnect the ribbon cables that connect the control 2.
board to the inductor plate / generator board.
Disconnect the J6 connector that provides power to 3.
the cooling fan.
Now depress the tabs which mount the control 4.
board to the pan assembly. NOTE: Applying a small
amount of pressure under the board with your fi nger
will help in dislodging the board from the pins. (See
Figure 4-3).
Next remove the nut (11/32”) that connects the 5.
ground wire to the induction pan assembly. (See
Figure 4-4)
Lift control board straight up and off of tabs and 6.
remove.
NOTE: Care must be taken to ensure connector pins are
not bent.
Figure 4-1 Glass Top Removal
Figure 4-2 Disconnect Cable from Control Board to Display
Board.
Figure 4-3 Depress Tabs with a needle nose pliers.
Figure 4-4 Remove nut using 11/32” socket or nut driver.
TO AVOID ELECTRICAL SHOCK, POWER TO
THE UNIT MUST BE DISCONNECTED BEFORE
ATTEMPTING TO REMOVE THE GLASS TOP.
To avoid Injury from sharp edges, always wear
gloves when handling sheet metal components.
