Induction Cooktop
Installation Information
2-4
Counter top Cut-out Dimensions (CT15I )
This cooktop is designed to fi t a standard 24” (610 mm)
width base cabinet with a 25” (635 mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. There should be at least 6” (152mm) clearance
between the top counter top surface and any combustible
surface directly below the unit. This includes upper edges
of drawers located directly below unit. If a shelf is installed
below the unit, a 1” (25mm) gap at the rear of the cabinet
shelf is necessary to allow for proper ventilation. Failure
to do so could result in decreased performance or product
damage. (See Figure 2-3 & 2-4)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.

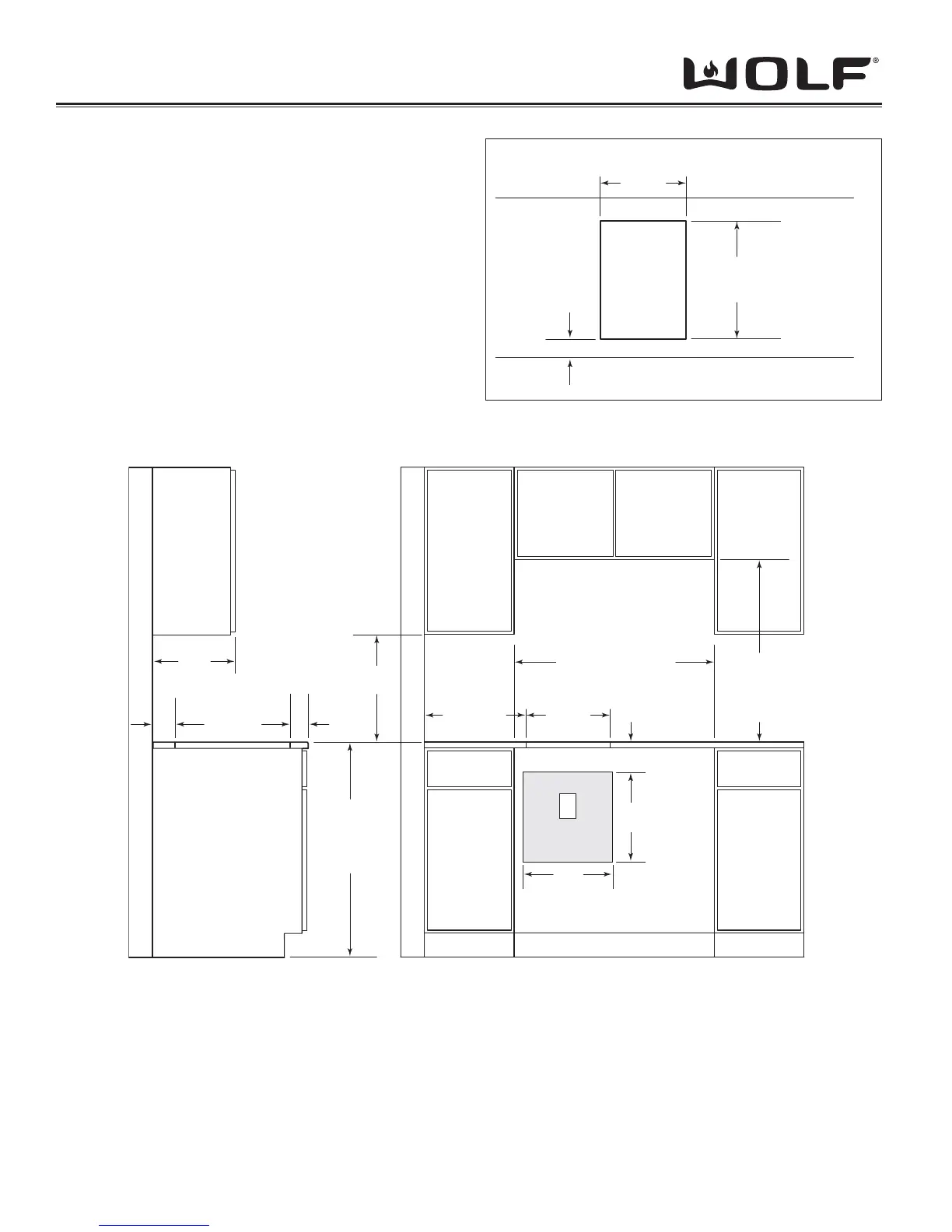

Figure 2-3 CT15I Counter top Cut-Out Top View
WIDTH
(64)
COOKTOP CUT-OUT
13-3/8” (340)
COOKTOP
DEPTH
CUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
E
4-1/2”
(114)
15"
(381)
15"
(381)
2"* min (51)
13-3/8”
(340)
WIDTH
33" (838)
RECOMMENDED
CABINET WIDTH
18"
(457)
19-1/4” (489)
2-1/2” min
(64)
36" (914)
FLOOR TO
HEIGHT
13" max
(330)
30" (762)
2"**
(51)
STANDARD
COUNTER
CUT-OUT
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
COOKTOP
CUT-OUT
DEPTH
NOTE: Application shown allows for installation of two 15” (381mm) modules side-by-side with 33” (838mm)
recommended cabinet width. 18” (457mm) recommended cabinet width for installation of single 15” (381mm) cooktop
or module. *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top.
NOTE: If the cooktop is to be used with any combination of additional cooktops or modules with a fi ller strip, the cut-out
width increases to 14” (356mm).
NOTE: Unit dimensions may vary to ±1/8” (3mm).
Figure 2-4 CT15I Counter top Cut-Out
