Induction Cooktop
Installation Information
2-5

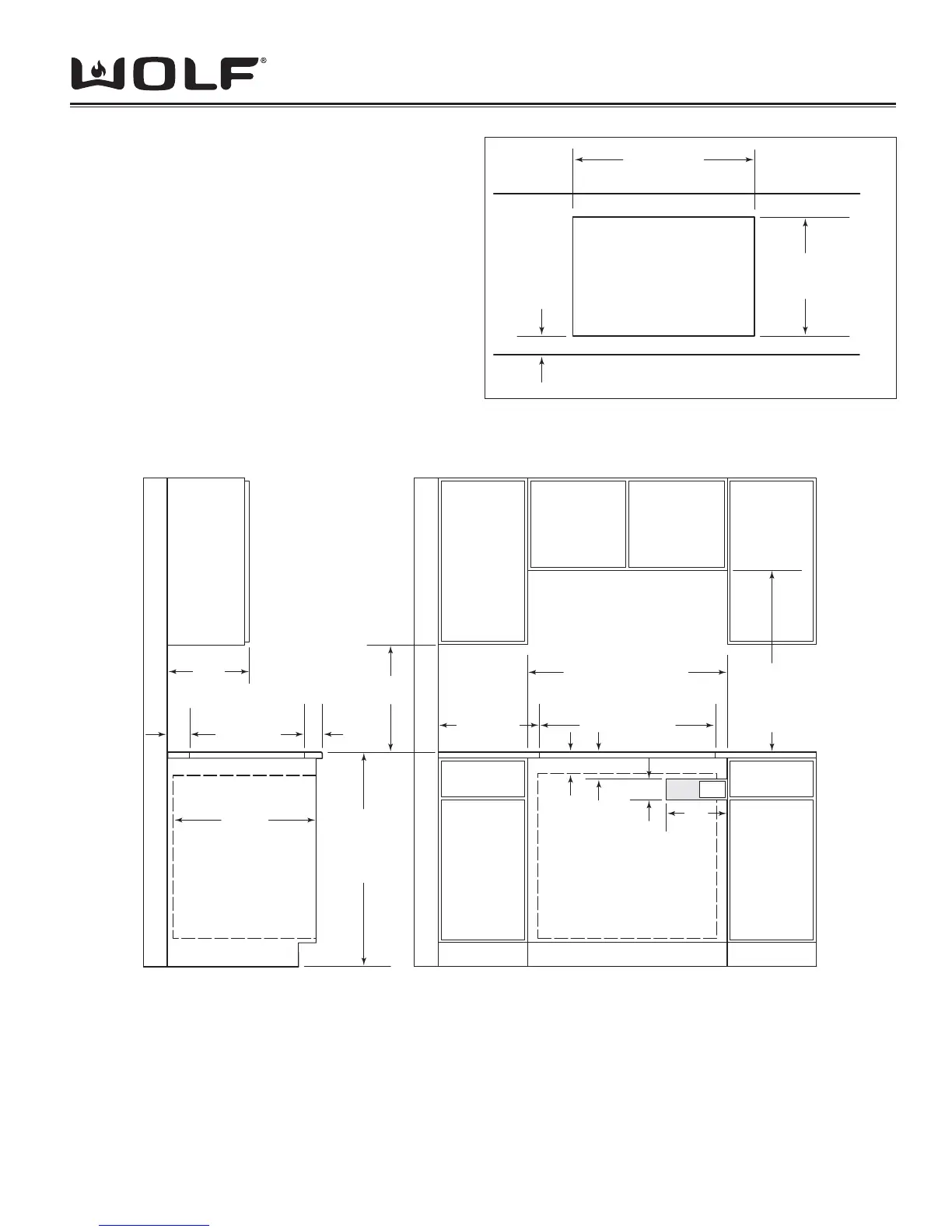

Figure 2-5 CT30I Counter top Cut-Out Top View
(64)
WIDTH
COOKTOP CUT-OUT
COOKTOP
DEPTH
CUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
28-2/8” (721)
Counter top Cut-out Dimensions (CT30I )
This cooktop is designed to fi t a standard 33” (838mm)
width base cabinet with a 25” (635mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. A Wolf 30” (762mm) or 36” (914mm) built-in
single oven may be installed below Model CT30I. For
this installation, unless the cabinets are deeper than 24”
(610mm), it is recommended that the electrical supply be
placed in the base cabinet to the right of the oven. Refer
to installation instructions provided with the built-in oven
for additional specifi cations. (See Figure 2-5 & 2-6)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
Figure 2-6 CT30I Counter top Cut-Out
NOTE: *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top.
NOTE: Unit dimensions may vary to ±1/8” (3mm).
2"* min (51)
18"
(457)
(64)
36" (914)
13" max
(330)
30" (762)
24" min
(610)
3
3
/4" min
(95)
10"
(254)
(89)
E
33" (838)
RECOMMENDED
CABINET WIDTH
30" min (762)
2"**
(51)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
19-1/4”(489)
COOKTOP
CUT-OUT
DEPTH
2-1/2” min
FLOOR TO
HEIGHT
STANDARD
COUNTER
30” OVEN OPENING
28-3/8” (721) COOKTOP
CUT-OUT WIDTH
4-1/2”(114)
3-1/2”
