Cooling

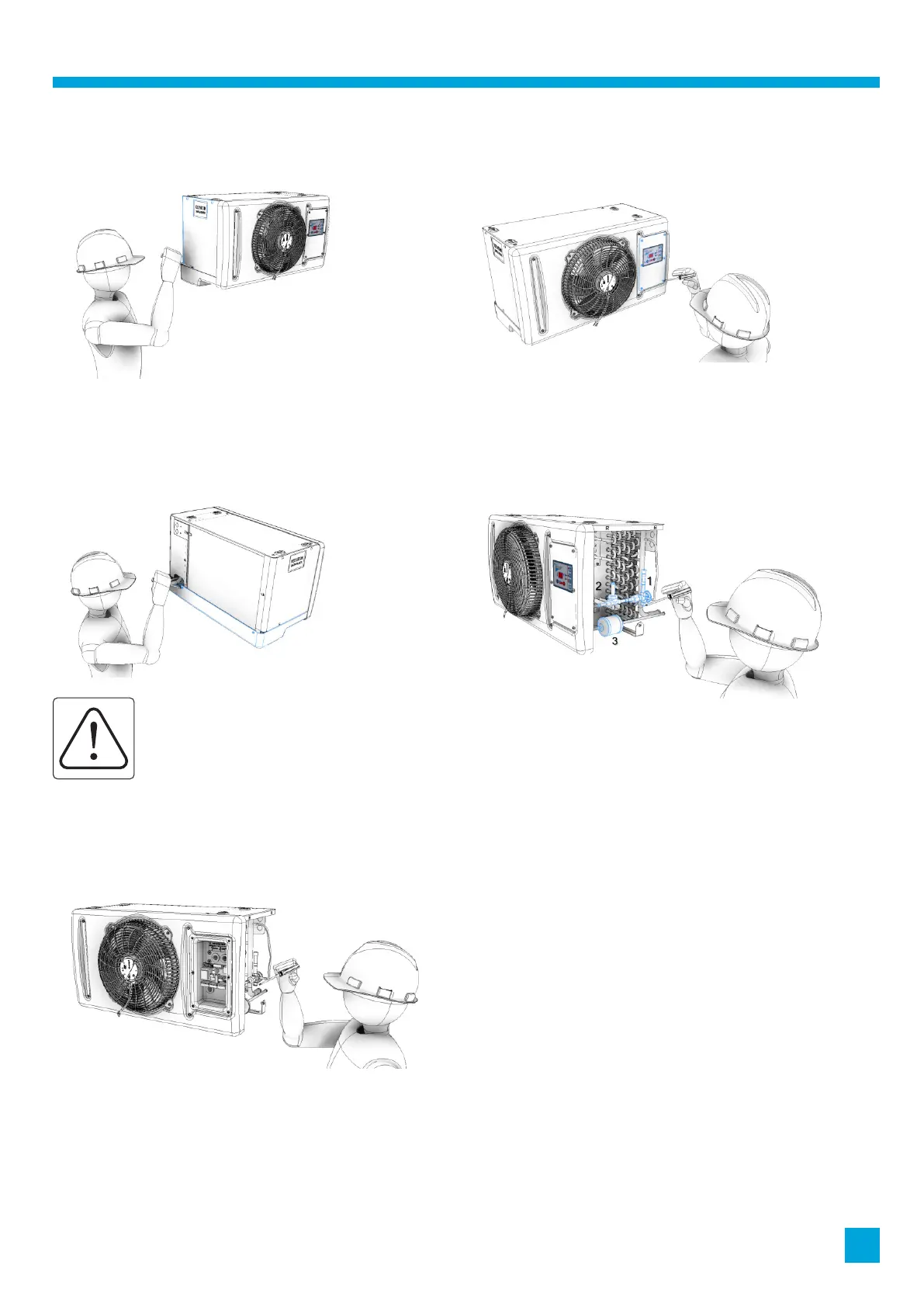

How to gain access to the condensing units
To gain access to the solenoid, filter and TEV, the end covers
will need to be removed. This can be done by loosening and
removing the screws. The end covers then slide out from unit.
To gain access to the controls and enable the installation
of the mains cable. The front controls facia will need to be
removed.
CAUTION
The plastic drain tray will need to be removed
before any brazing is carried out the pipework.
This can be done by removing the rear screws
and sliding the drain tray off the unit.
Once all panels have been removed, the following items:
1. TEV
2. Solenoid
3. Filter Drier
Can be accessed for servicing, maintenance and
superheat adjustment.
With the controls cover removed, the PCB board can
be accessed.
