WOLSELEY Beermaster Plus Series - Positioning The Evaporator

Cooling
6
Positioning the evaporator
The evaporator has a “draw-through” airflow direction and is designed for either ceiling mounting or wall mounting.
For wall mounting, the wall mounting kit (optional) must be used and is supplied as a separate order.

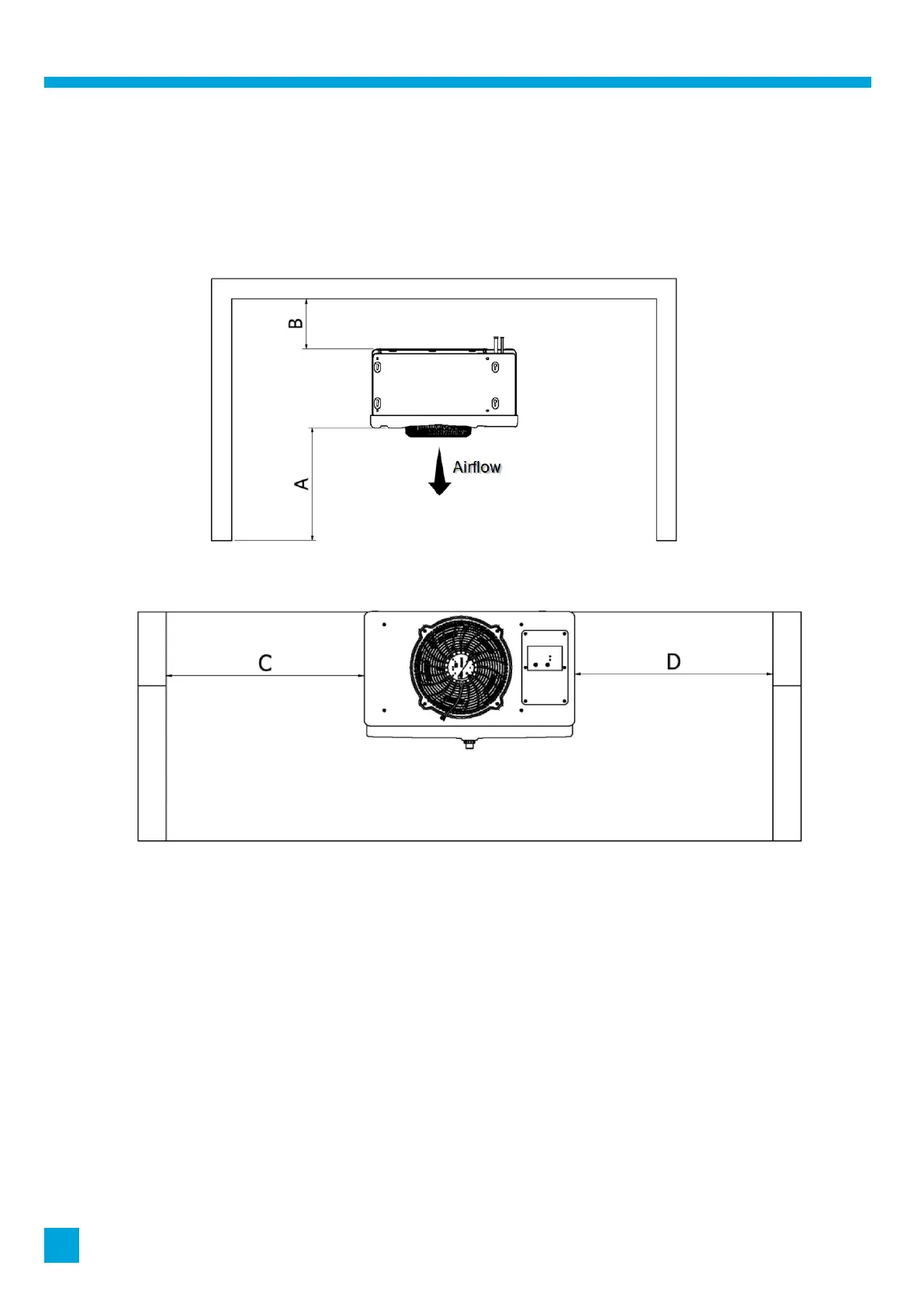

Locate the evaporator in accordance with the minimum clearances as detailed below:
A Air Clearance
B Rear Clearance
C Left Hand Clearance
D Right Hand Clearance
2000 mm
275 mm
150 mm 150 mm
