SETUP & OPERATION
Planning / thicknessing
EGdoc072921 3-5
3
SETTING THE MACHINE FOR PLANNING/THICKNESSING
The top cutter is fixed to the housing and hung at both ends. Two planing knives are mounted in two
cutter sockets in the vertical cutter (planer knife 410 mm HSS).
The planing thickness is adjusted with the planing (top) table handle (A). After adjustment is
done lock the table position with locking handle (B). The set thickness can be read on the scale
(C). Set the protective guard (E) so it covers the workpiece from the upper side (for the
workpiece hight up to 75mm). When angle-planning (or the workpiece is higher than 75mm) the
protective guard shold be completely lowered and set that the workpiece fit between the guard
(E) and the fence (G). The planing angle (0-45 degrees) can be adjusted after loosening the
angle locking hadles (H). The fence position can be changed after loosening the fence locking
handle (I).
See figure 3-3.

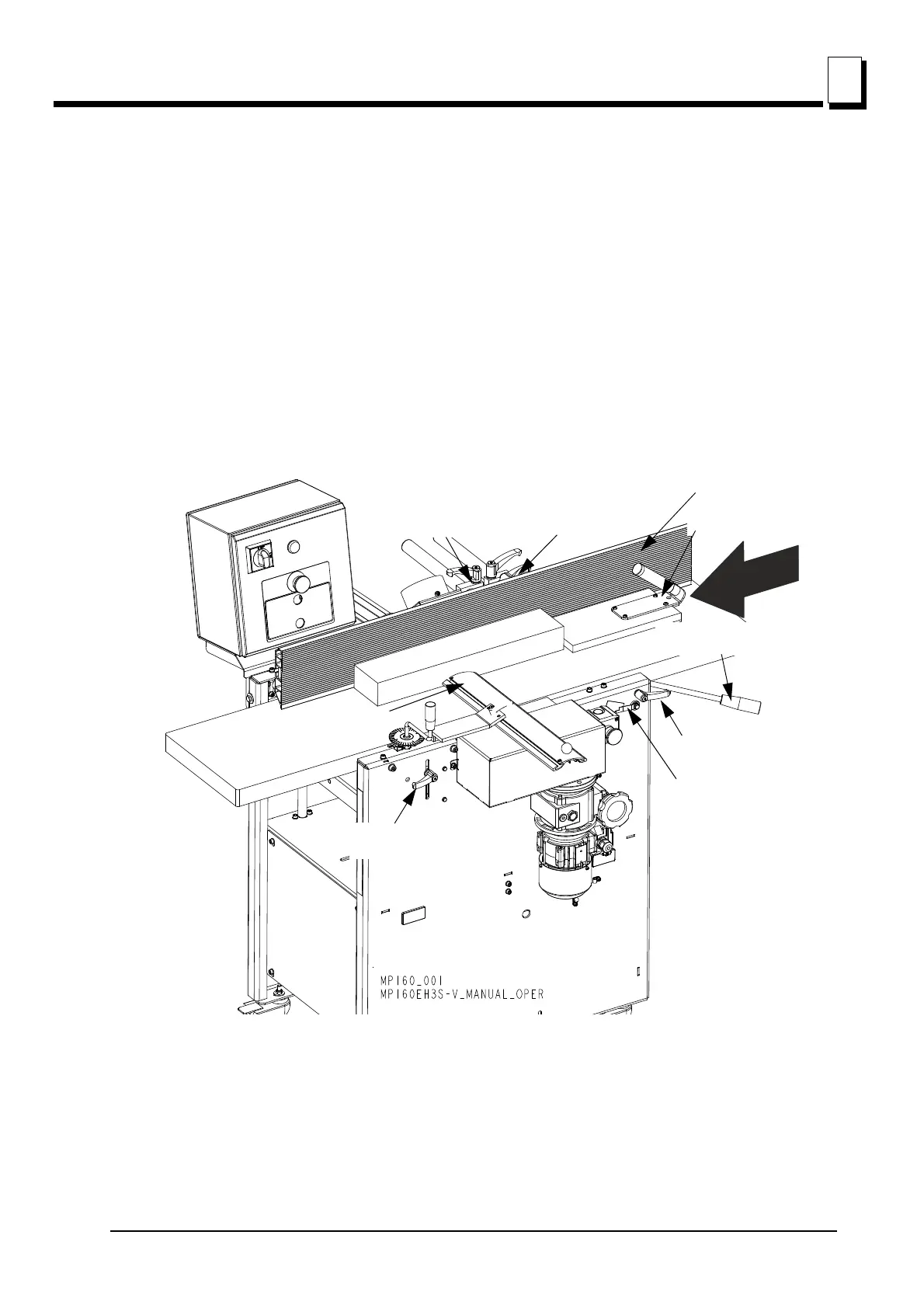

FIG. 3-3 MP160
Top Table Height
Scale (C)
Top Table Height
Adjustment Handle(A)
Top Table Locking
Handle (B)
Protective Guard (E)
Pusher (D)
Fence (G)
Guard Locking
Handle (F)
Angle Locking
Handles (H)
Fence Locking
Handle (I)
