SETUP & OPERATION
Planning / Thicknessing
EGdoc052521 3-9
3
ADJUSTING THE OUTFEED TABLE
The outfeed table is factory adjusted. However, if it is necessary to adjust the outfeed table, it can be
done with the micro adjustment bolt (A - see below). The outfeed table should be adjusted so it is
0.02 - 0.05 mm above the highest position of the knives.
See figure 3-8.
DISASSEMBLING, ASSEMBLING AND GRINDING PLANING KNIVES
DANGER! Before changing the knives or performing any service to the
Multi-Planer, disconnect the power cord from the electrical box.
See figure 3-9.
The planing knife is disassembled by loosening the chip breaker's (A) lock screws (B) and then
unscrewing the planing knife with adjuster screws (C).

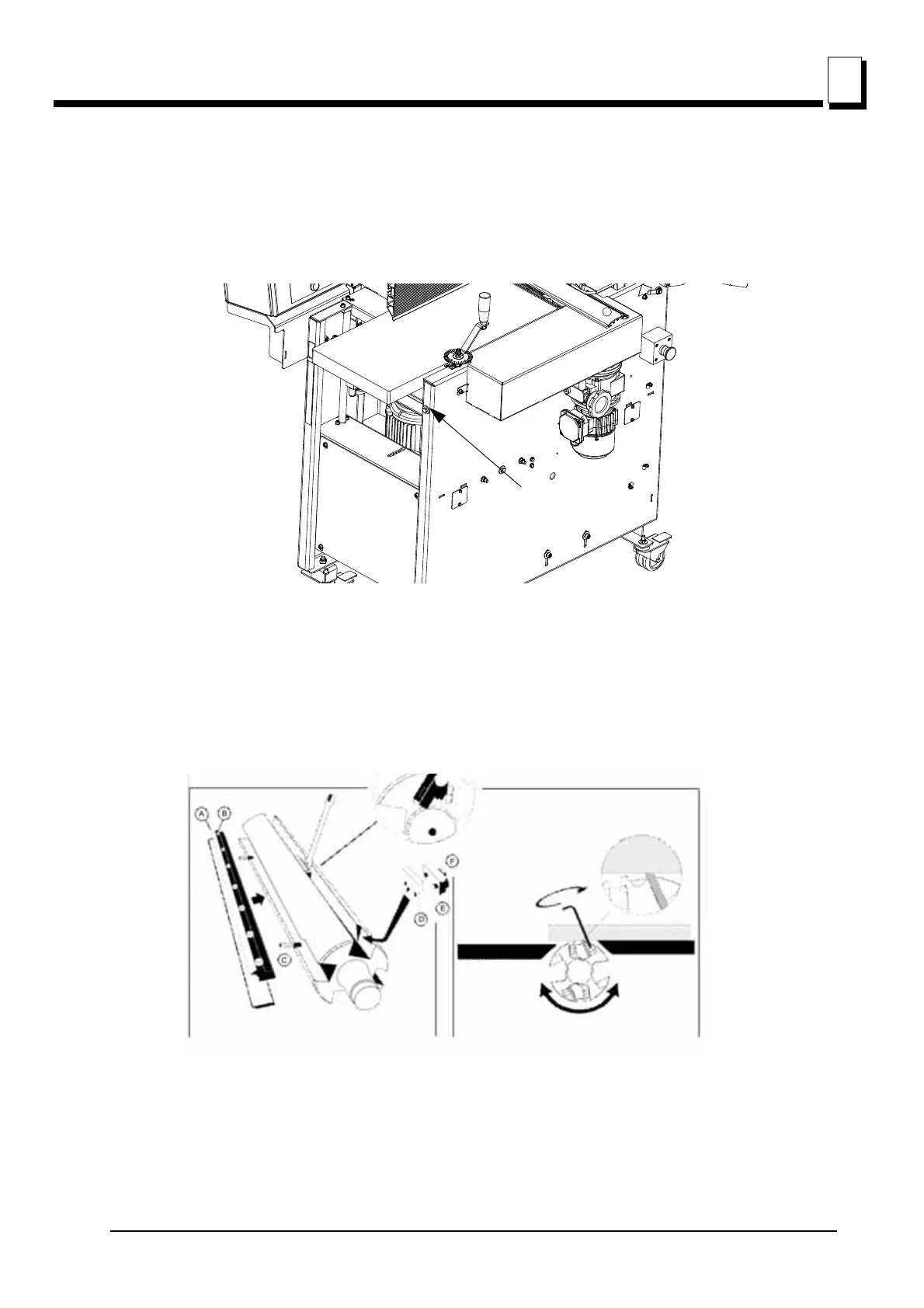

FIG. 3-8
FIG. 3-9
