UNIVERSAL J OINT REPAIR
CD1645A
3
3
3
3
2
2
2
2
4
1
1
1. Yoke
2. Cup and
bearings
3. Snap ring
4. Journal cross

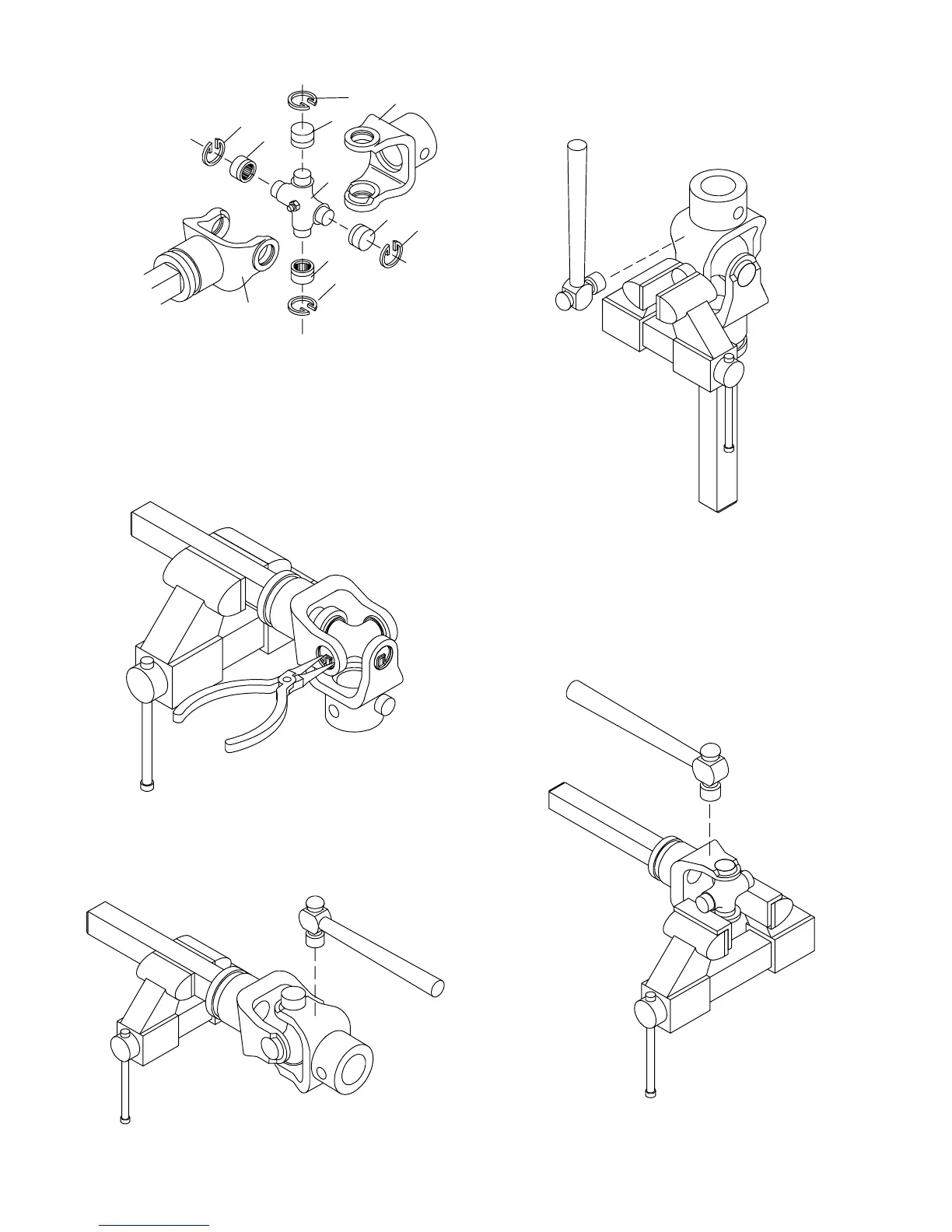

Figure 20. U-Joint Exploded View
U-Joint Disassembly
1. Removesnaprings fromyokesinfourlocationsas
shown in Figure 21.
CD1385A
Figure 21
2. With snap rings removed, support drive in vise,
hold yoke in hand and tap on yoke to drive cup up
out of yoke. See Figure 22.
CD1386
Figure 22
3. Clamp cup in vise as shown in Figure 23 and tap
on yoke to completely remove cup from yoke.
Repeat steps two and three for opposite cup.
CD1387
Figure 23
4. Place universal cross in vise as shown in
Figure 24 and tap on yoke to remove cup. Repeat
step three for final removal. Drive remaining cup
out with drift and hammer.
CD1388
Figure 24
