31PN-52886 (4/97)
Optional Front Roller I nstallation
(Figure 33)
1. Front roller
2. Roller bracket
3. Retainer pin
4. Roller pin
5. 3/8 NC Flange locknut
6. 3/8 NC x 1” Hex head cap screw GR5
7. 3/8 NC x 1” Carriage bolt
CD3552
1
2
5
6
7
5
3
4

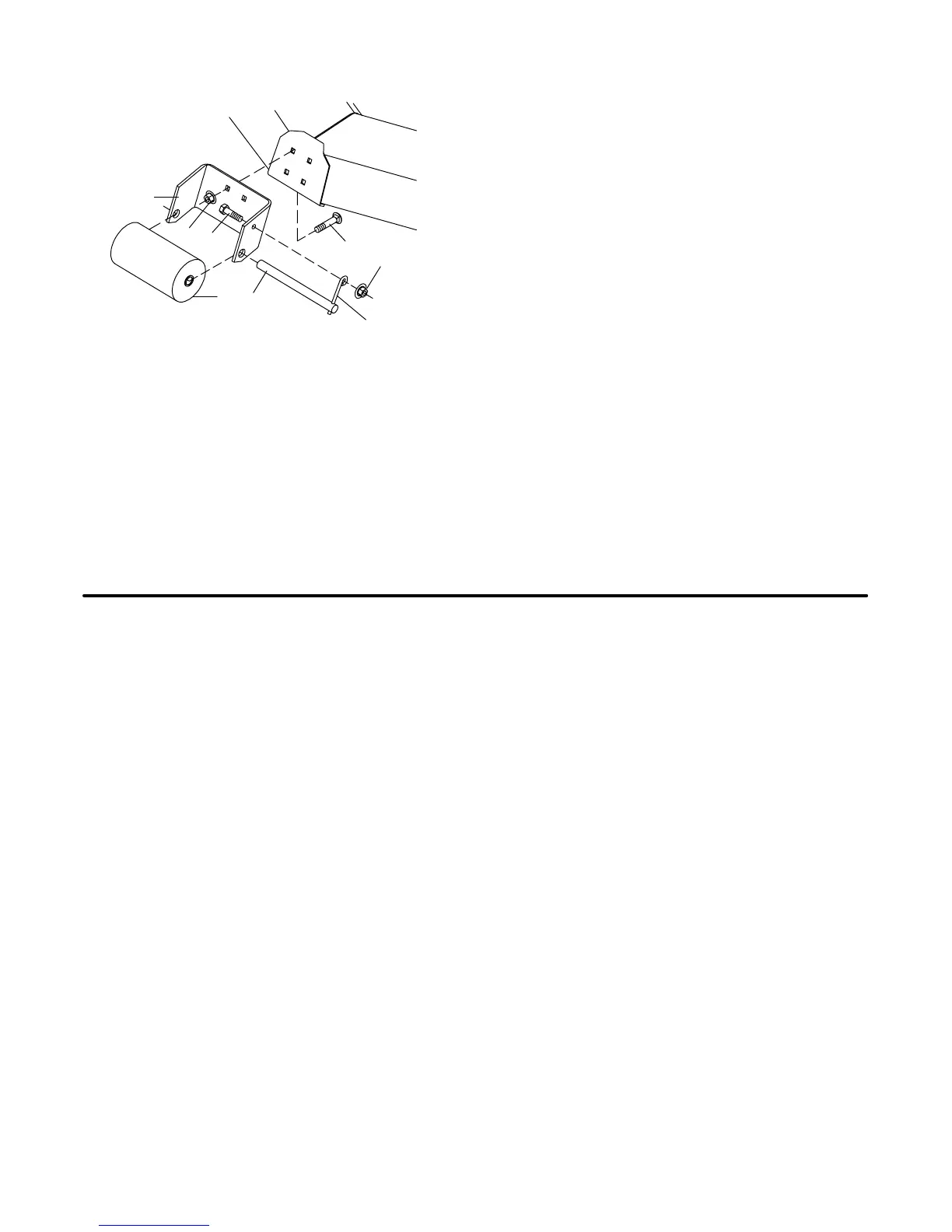

Figure 33. Optional Front Roller Installation
Insert four carriage bolts (7) through the front mower
frame from inside out as shown.
Put roller bracket (2) over bolts then install flange
locknuts (5) on bolts and tighten.
Put front roller (1) in roller bracket and insert roller pin
(4) through bracket and roller.
Install retainer pin (3) in roller pin. Put cap screw (6)
through bracket and retainer pin, install flange locknut
(5) and tighten.
Initial Filling of Gearbox
IMPORTANT
! Gearbox was not filled with oil at facto-
ry. It must be serviced before operating.
Failure to service will result in damage to
gearbox.
The gearbox was not filled at the factory. The initial fill
will take .85 quart (800 ml) of SAE 90W gear lube.
Remove the breather plug and side hole plug. Pour in
one pint of gear lube, wait five minutes and add
additional gear lube until it just comes out of side hole.
Allow an additional five minutes for the lube to flow
through bearings, then check to make sure oil level is
at bottom of side hole. Replace both plugs.
Complete the Safety Check Lists on page 28 before
delivering equipment to customer.
