PN-52886 (4/97)36

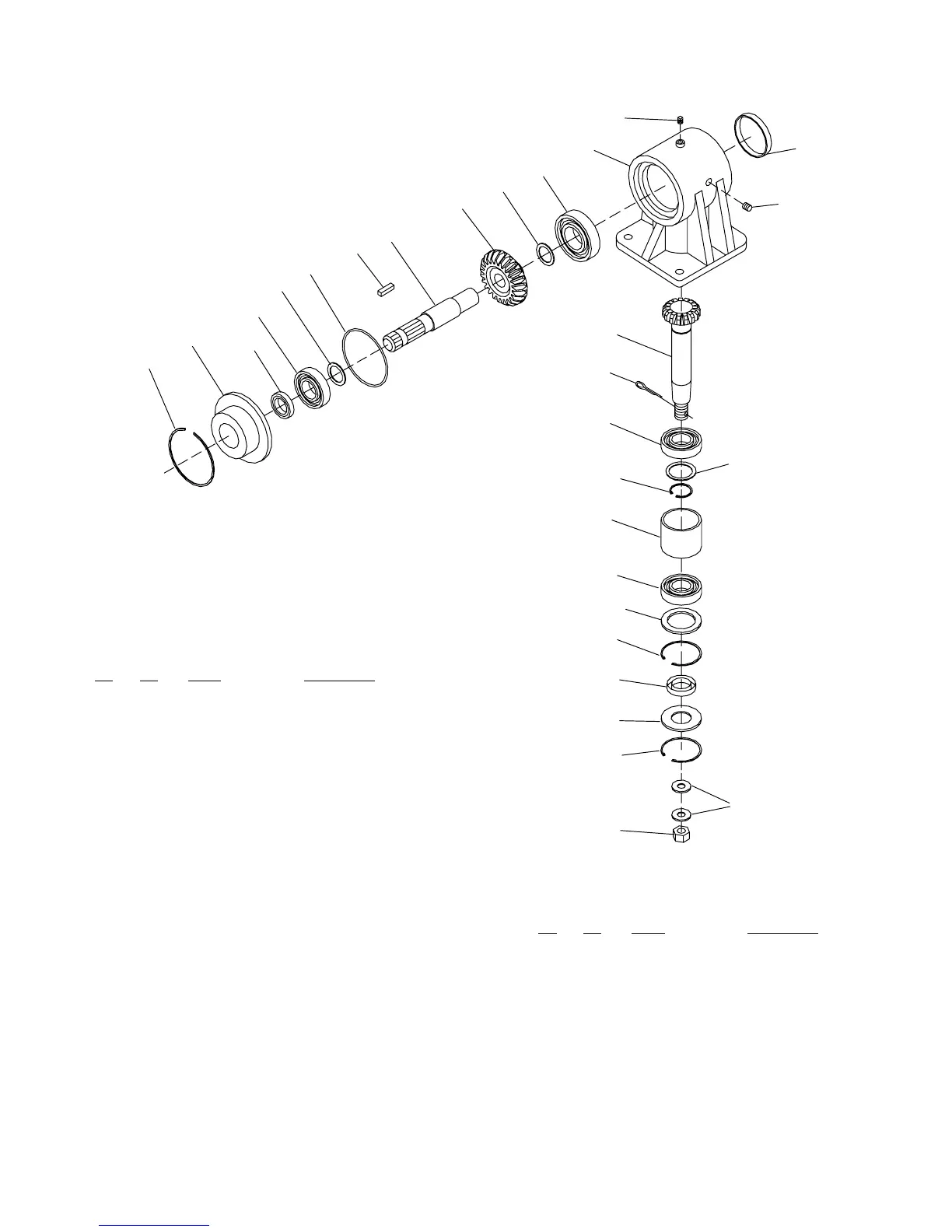

RD6000, RD7200 & RD8400 GEARBOX ASSEMBLY
CD4837C
26
22B
18
13
23
22C
22C
16
21
20
19
25
17
22A
15
14
12
11
10
10
9
8
7
6
5
4
3
2
1
Ref Part No
No
No Used Description
-- 53593 1 1:1.92 Gearbox with decal
1 51949 1 1.38 x 4.5 x 23T Bevel gear
2 ---------- -- Gearbox housing (not sold sepa-
rately)
3 51945 1 .887 Input shaft
4 51944 1 3.0 x 12T Pinion shaft
5 20886 1 2.76 x 3.00 x 3.3 Spacer
6 53594 1 Gearbox cover with decal
7 20888 1 1.58 x 3.13 x .04 Washer
8 51850 1 Ball bearing 6007
9 20890 1 Ball bearing 6207
10 20891 2 Ball bearing 6208
11 51946 1 M24 x 2 Castle nut, metric
12 20893 1 25mm x 44mm x 4mm Washer
13 20894 1 8mm x 10mm x 30mm Key
14 20895 1 45mm Retaining ring
15 39251 1 2.9mm x 80mm Internal retaining
ring
16 20897 1 81mm Internal retaining ring
17 20898 1 125mm Internal retaining ring
18 65294 * 2 3/8 NPT Square head pipe plug
19 20900 1 40 x 80 x 12 Metric seal
20 20901 1 35 x 52 x 7 Metric seal
Ref Part No
No
No Used Description
21 20902 1 .13 x 4.88 OD O -Ring seal
22 20896 1 Shim kit (includes items A--C)
22A ---------- A/R 40.3mm x 51.5mm Shim
22B ---------- A/R 69.0mm x 79.9mm Shim
22C ---------- A/R 35.3mm x 48.0mm Shim
23 64803 * 1 3/16 x 2 Cotter pin
25 39325 1 3/8 NPT Vent plug
26 53592 1 Cap, 52mm dia. x 7mm
* Obtain Locally
(Rev. 7/97)
