37PN-52886 (4/97)

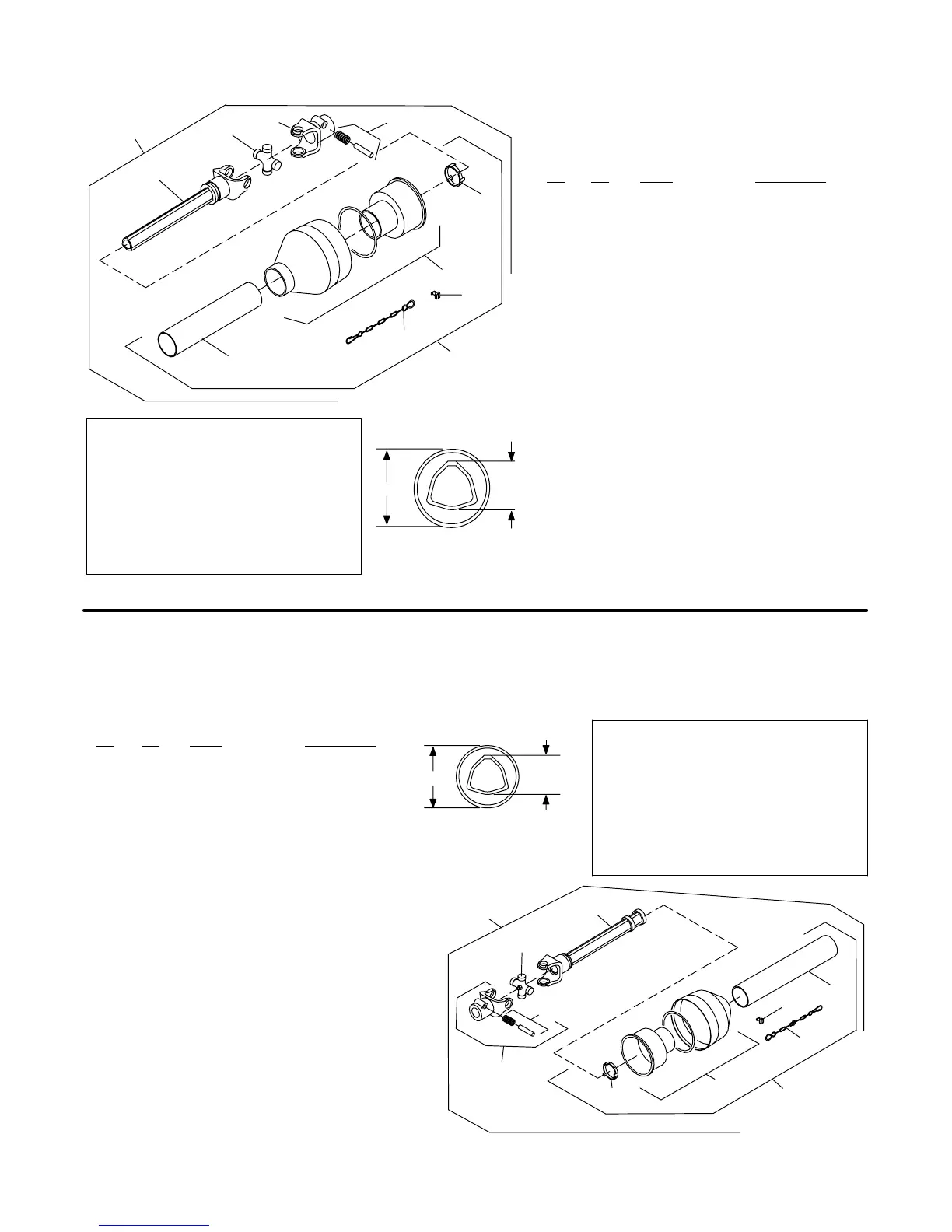

RD6000, RD7200 & RD8400 DRIVE SHAFT -- MALE HALF
COMER (TRI--LOBE SHAFT)
CD4993
11
END VIEW OF
DRIVE SHAFT
10
6
1
2
3
5
7
9
8
4
2.4 1.42
Ref Part No
No
No Used Description
1 51848 1 Drive, Profile shield 40, 26.2,
1.38 SP
2 30912 1 Yoke 40, 1.38 QD (includes
item #11)
3 30916 1 U-Joint repair kit 40
4 30928 1 Yoke and tube, Profile 40 x
26.2
5 30923 1 Shield bearing k it 40
6 ---------- 1 Shieldbellkit40(not sold
separately -- included in item
#10)
7 30922 3 Shield retainer 40
8 30917 1 Shield tether chain
9 ---------- 1 Tube shield,2.40 x2.23 x
22.2 (not sold separately --
included in item #10)
10 30828 1 Inner shield assembly, com-
plete, non-rotating 2.40 x 2.23
x2.69
11 30913 1 1-3/8 Push pin set
TWO TYPES OF DRIVESHAFTS HAVE
BEEN USED FOR RD MOWERS ----
TRI-LOBE AND TWO-LOBE. CHECK
YOUR DRIVESHAFT AND ORDER
REPAIR PARTS FROM THE
CORRESPONDING PARTS LIST.
WHEN REPLACING A COMPLETE
DRIVESHAFT, ORDER THE TWO-LOBE
DRIVESHAFT ON PAGE 40.
RD6000, RD7200 & RD8400 DRIVELINE WITH INTRA-LUBE
COMER (TRI--LOBE SHAFT)
CD4992
END VIEW OF
DRIVE SHAFT
11
2
3
4
5
10
1
7
9
8
6
2.6
1.71
Ref Part No
No
No Used Description
1 53438 1 Drive, Profile shield 40,
25.1, 1.38
2 30912 1 Yoke 40, 1-3/8 QD (includes
item #10)
-- o r -- -- o r --
2 30829 1 Yoke 40, 4.37 x 3.04 x 1-1/8
(includes item #10)
3 30916 1 U-Joint repair kit 40
4 53439 1 Yoke and tube, Profile 40,
25.1
5 30923 1 Shield bearing k it 40
6 ---------- 1 Shieldbellkit40(not sold
separately -- included in
item #11)
7 ---------- 1 Tube shield,2.62 x2.44 x
15.2 (not sold separately --
included in item #11)
8 30922 3 Shield retainer
9 30917 1 Shield tether chain
10 30913 1 1-3/8 Push pin set
11 30827 1 Shield assembly, non-rotat-
ing 2.62 x 2.44 x 26.9
TWO TYPES OF DRIVESHAFTS HAVE
BEEN USED FOR RD MOWERS ----
TRI-LOBE AND TWO-LOBE. CHECK
YOUR DRIVESHAFT AND ORDER
REPAIR PARTS FROM THE
CORRESPONDING PARTS LIST.
WHEN REPLACING A COMPLETE
DRIVESHAFT, ORDER THE TWO-LOBE
DRIVESHAFT ON PAGE 40.
(Rev. 9/1/99)
