PN-52886 (4/97)38

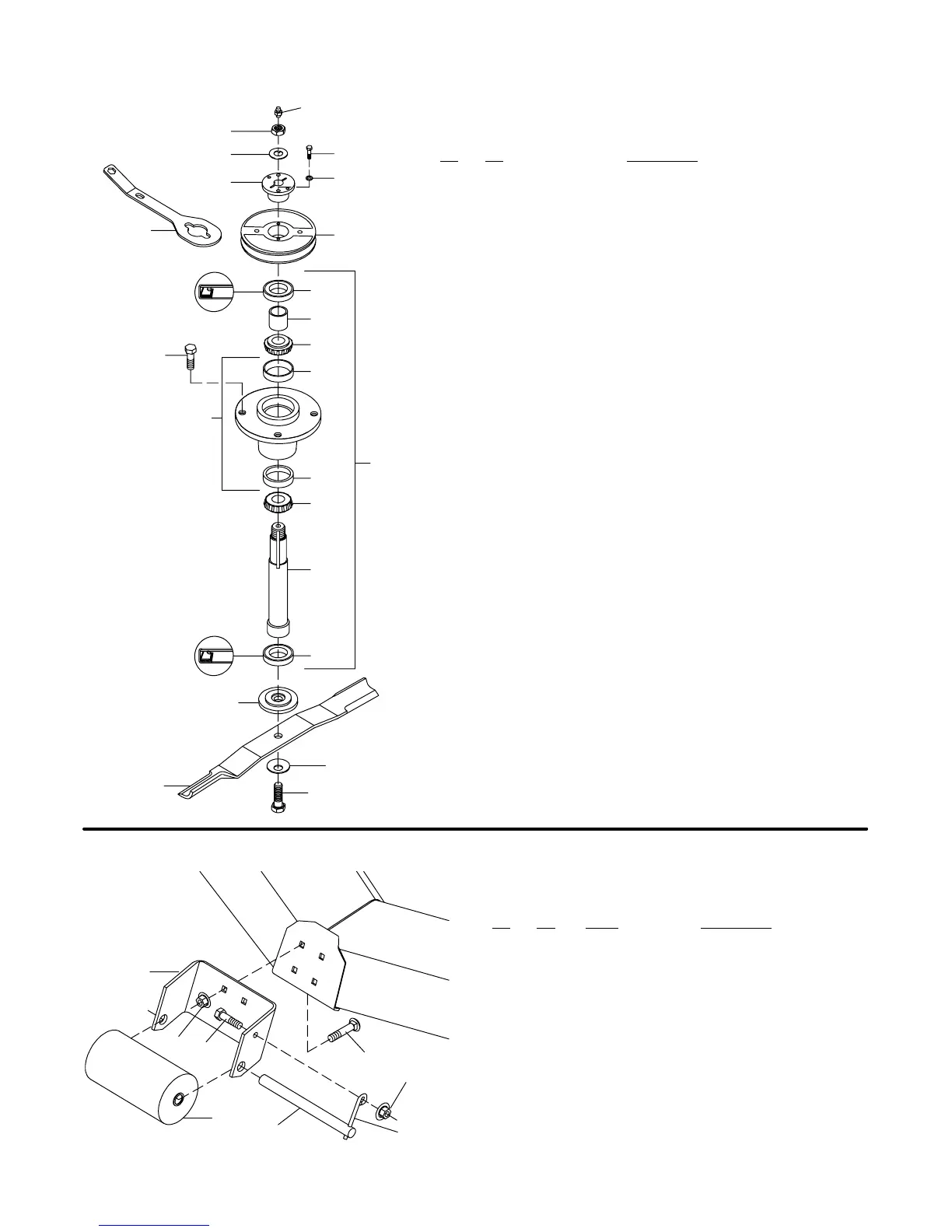

BLADE & SPINDLE ASSEMBLY: RD6000 (SN--793932 AND PRIOR)
& RD7200 (SN--688690 AND PRIOR)
Ref Part
No
No Description
1 38042 5/8--18 UNF Hex jam nut
2 10378 1/4 NC x 1 Hex head cap screw GR5
3 38020 .679 x 1.41 Lockwasher
4 1985 1/4 Standard lockwasher
5 34425 H 3/4 Straight bore bushing with key P.I.
6 66694 1 BK 4.17 H Sheave (RD6000)
-or- -or-
6 12622* 1 BK 5.0 H Sheave (RD7200)
7 53551 Spindle assembly
8 5089 1.06 x 2.0 x .44 Seal
9 24135 27/32 x 1-1/16 x 5/8 Sleeve
10 4107 Bearing cone #M12649
11 38106 Blade spindle housing with cups
12 4106 Bearing cup #M12610
14 53525 Spindle shaft with drilled keyway
15 55333 Shoulder washer (RD6000) -- o r --
15 53580* .641 x 3.0 x .92 Shoulder washer (RD7200 with
single--bolt blades)
16 55319KT CW 21” Medium-suction blade (set of 3) (RD6000)
-- o r --
16 55343KT CW 21” High-suction blade, standard (set of 3)
(RD6000) -- o r --
16 53555KT* CW 25” High-suction blade, standard (set of 3)
(RD7200 with single--bolt blades)
17 53584 .641 x 3 Bellville washer
18 986* 5/8 NC x 2-3/4 Hex head cap screw HT (RD7200)
-- o r --
18 23141 5/8 NC x 3 -1/2 Hex head cap scrrew HT (RD6000)
19 4358 1/2 NF x 1-1/4 Hex head cap screw GR5
20 51760 Spindle wrench
21 1972 1/4--28 Tapered thread grease fitting
* Used for RD7200 mowers SN--688690 and prior. These mowers
use a single capscrew and Bellville washer to attach the blade.
CD4987A
21
20
17
3
1
6
5
4
2
SEAL LIP
SEAL LIP
8
9
10
12
7
8
10
12
14
11
19
18
15
16
RD6000, RD7200 & RD8400 FRONT ROLLER ASSEMBLY (Optional)
CD3552
1
2
5
6
7
5
3
4
Ref Part No
No
No Used Description
---- 53585 1 Front roller and bracket complete
1 63294 1 Front roller
2 53586 1 Roller bracket
3 20668 1 .25 x 3.1 Retainer pin
4 20666 1 Roller pin, drilled .75 x 8.6 x 9
5 70069 5 3/8 NC Whiz nut
6 839 * 1 3/8 NC x 1 Hex head cap screw GR5
7 6697 * 4 3/8 NC x 1 Carriage bolt GR5, plated
* Obtain Locally
(Rev. 4/12/01)
