EGCP-2 Engine Generator Control Package Manual 26174
202 Woodward
Marathon PM 100/200
EGCP-2
Marathon
PM100 /
200

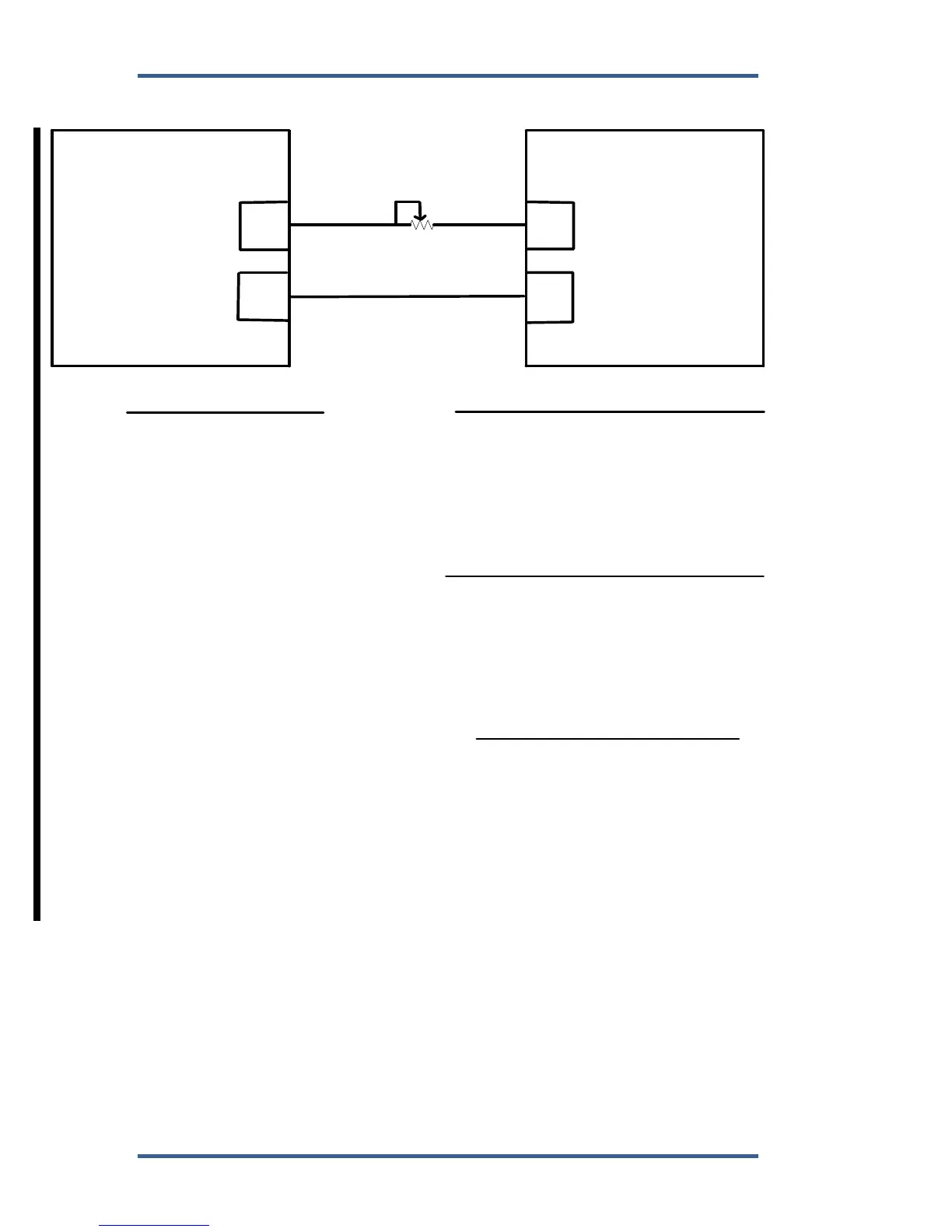

Voltage
Regulator
37
38
7
6
Voltage Trim
Potentiometer
10 K ohm
Voltage Regulator settings:
Droop - set for 2 to 5 %
In a multiple generator system, set
droop the same on all regulators
EGCP-2 Settings:
Configuration Menu
Voltage Bias Type: +/- 1 VDC
Calibration Menu
Volts Bias Offset: 0%
Shutdown & Alarms Menu
Gen Volt Hi Lmt: * 10% above rated
Gen Volt Lo Lmt: * 10% below rated
Reactive Load Control menu
VAR/ PF Gain: 0.3
Volts Ramp Time: 200 Sec
VAR/ PF Sharing Gain: 0.1
VAR/ PF Stability: 4.0
PF Deadband: 0.005
* - these are only suggested settings.
Voltage Trim Potentiometer:
10 K ohm, 10 turn, 1 Watt
Set to Mid-Range
**A 5 K ohm, 0.25 Watt resistor may be
used in place of the pot
Adjustment Procedure:
1. Start Generator
2. Adjust Volts Bias Offset for Rated
Voltage
3. Press ENTER to save this value
4. The items in the Reactive Load menu
may need adjusted for stable Power
Factor control.
To Next Page
