EGCP-2 Engine Generator Control Package Manual 26174
204 Woodward
Mecc Alte UVR
EGCP-2
Mecc Alte
UVR
Voltage
Regulator
37
38
Voltage Trim
Potentiometer
100 K ohm

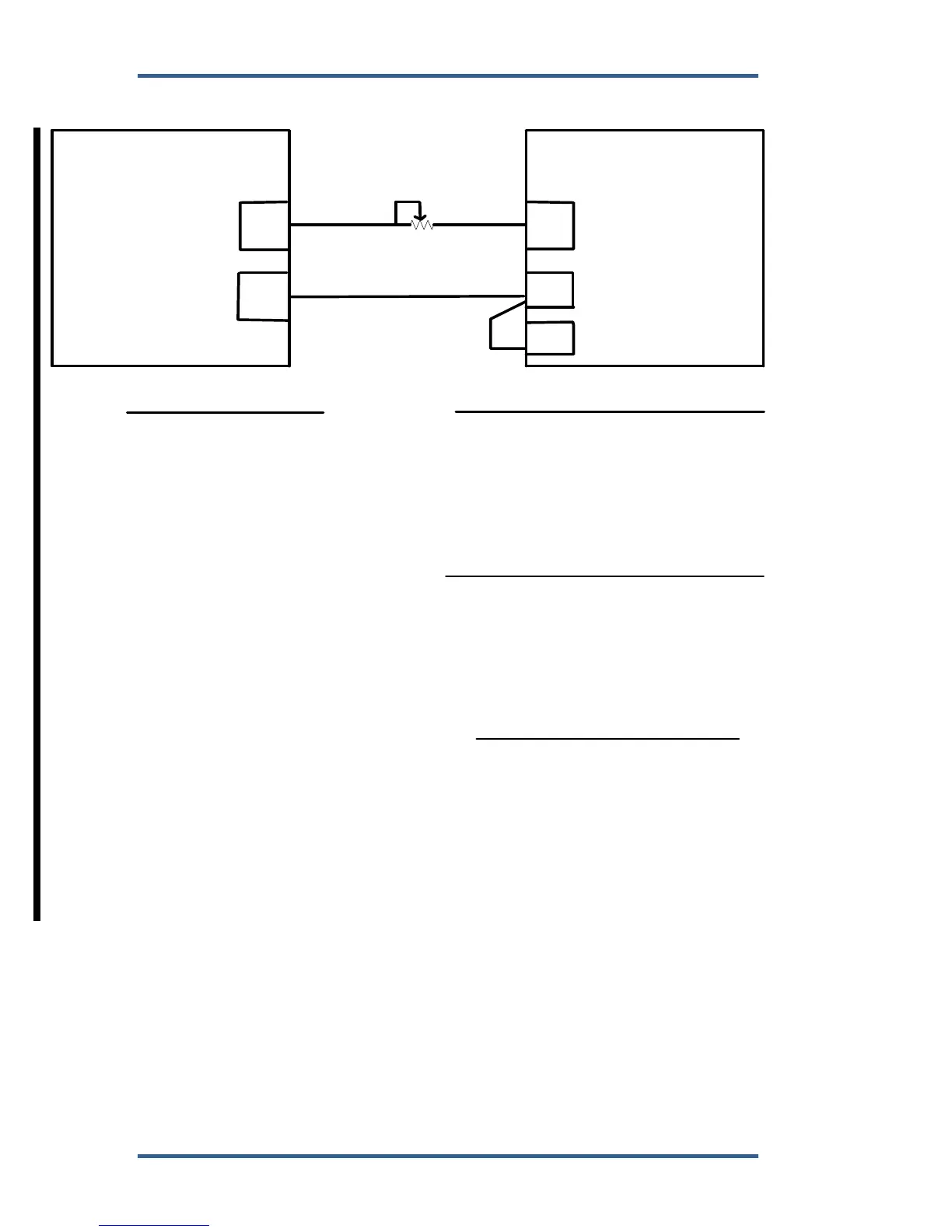

Voltage Regulator settings:
The Mecc-Alte UVR has no terminal
numbers for the remote voltage
control potentiometer. The
connection is placed next to the 50/
60 hertz selection jumper.
EGCP-2 Settings:
Configuration Menu
Voltage Bias Type: +/- 3 VDC
Calibration Menu
Volts Bias Offset: 0%
Shutdown & Alarms Menu
Gen Volt Hi Lmt: * 10% above rated
Gen Volt Lo Lmt: * 10% below rated
Reactive Load Control menu
VAR/ PF Gain: 1.0
Volts Ramp Time: 100 Sec
VAR/ PF Sharing Gain: 0.1
VAR/ PF Stability: 2.0
PF Deadband: 0.005
* - these are only suggested settings.
Voltage Trim Potentiometer:
100 K ohm, 10 turn, 1 Watt
Set to Mid-Range
Adjustment Procedure:
1. Start Generator
2. Adjust Volts Bias Offset for Rated
Voltage
3. Press ENTER to save this value
4. The items in the Reactive Load menu
may need adjusted for stable Power
Factor control.
Connect together only for
60 Hertz operation
