Woodward GCP-31 Series Installation

Manual 37364A GCP-30 Packages - Genset Control
Chapter 3.
Housing
Dimensions
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡
Configuration port
136.0 mm
1
50
90
83
Y1 Y5
48
X5X1
120
8.0 mm
111.0 mm
136.0 mm
54
24
60
25
144.0 mm
32.0 mm
42.0 mm
144.0 mm
12.0 mm
2004-10-04 | GCP30 Dimensions g2ww-4504-ab.skf
128
0
104
93 105 113

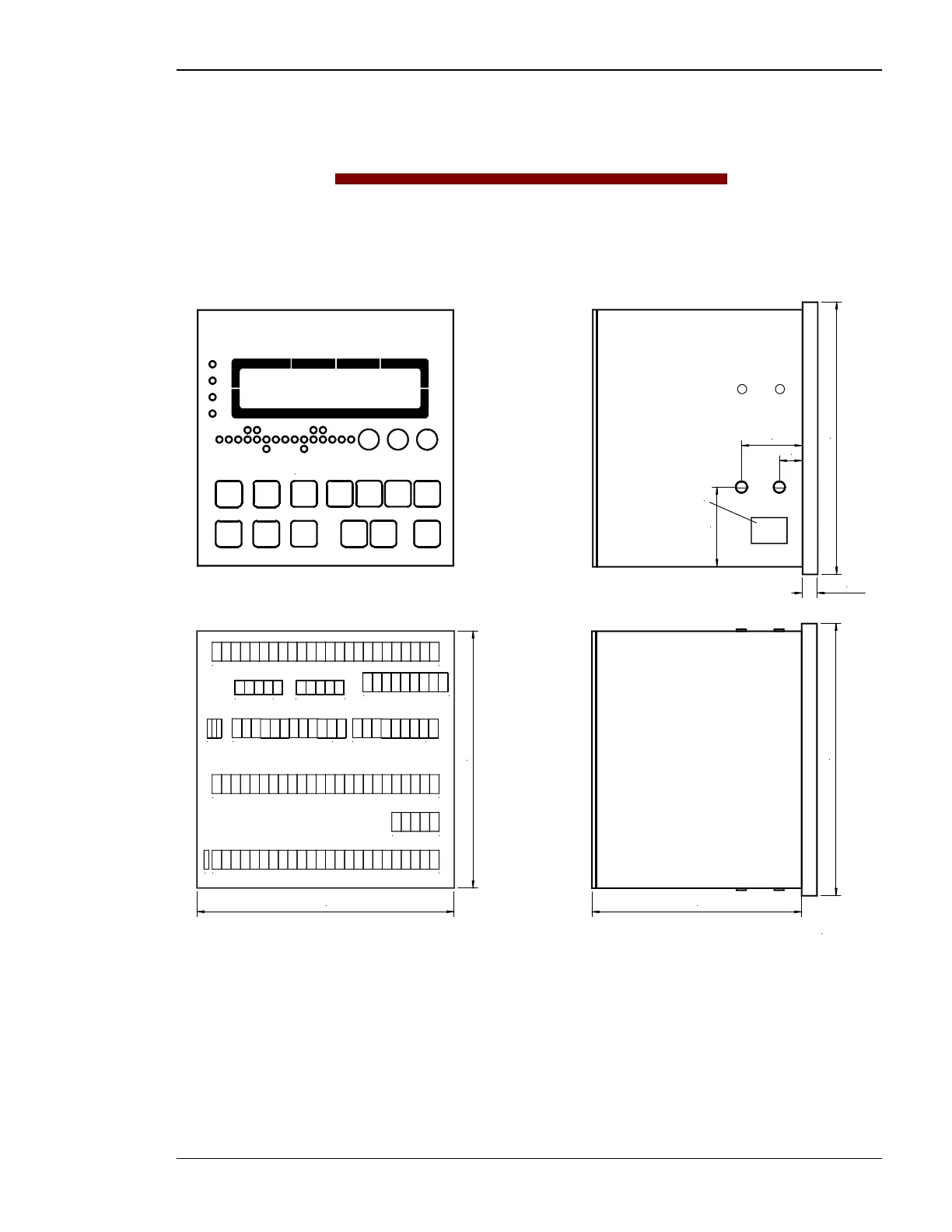

Figure 3-1: Housing - Dimensions
© Woodward Page 9/46
