Dimensions of boiler
6720813171 (2015/04) 13

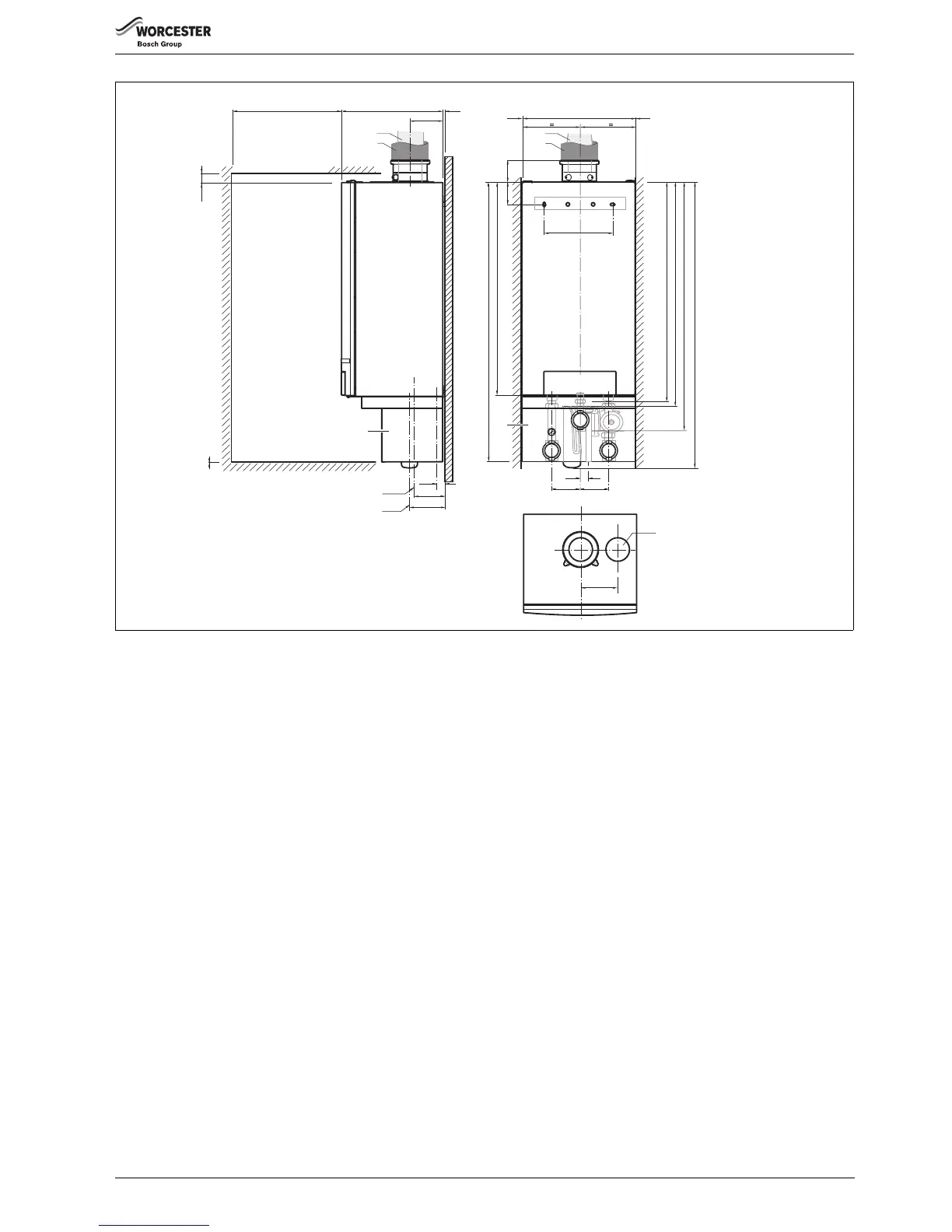

Fig. 7 Dimensions and connections with pump group (dimensions in mm)
1) The pump group is an accessory which has to be ordered separately.
[CDO] Condensate drain outlet; Ø 24 mm O/D
[CHF] CH (boiler) flow; G1½" union nut with female thread
[CHR] CH (boiler) return; G1½" union nut with female thread
[CS] Cap (DO NOT remove)
[FGC/AIC] Flue gas/air intake connection: Ø 80/125 for GB162-50/65 and Ø 100/150 for GB162-80/100
[GAS B] Gas connection to boiler; G1" female thread
[GAS P] Gas connection to pump group; Rp1" female thread
[PF] Pump group flow; G1½" male thread, flat seal
[PR] Pump group return; G1½" male thread, flat seal
The servicing clearances required are:
• in front: 50 mm
• below: 0 mm (250 mm with pump group)
•right side: 0mm
•left side: 0mm
•above: 30mm.
The position selected for installation MUST allow adequate space for servicing in front of the boiler:
• in front: 550 mm
• below: 350 mm
•right side: 0mm
•left side: 0mm
•above: 40mm.
