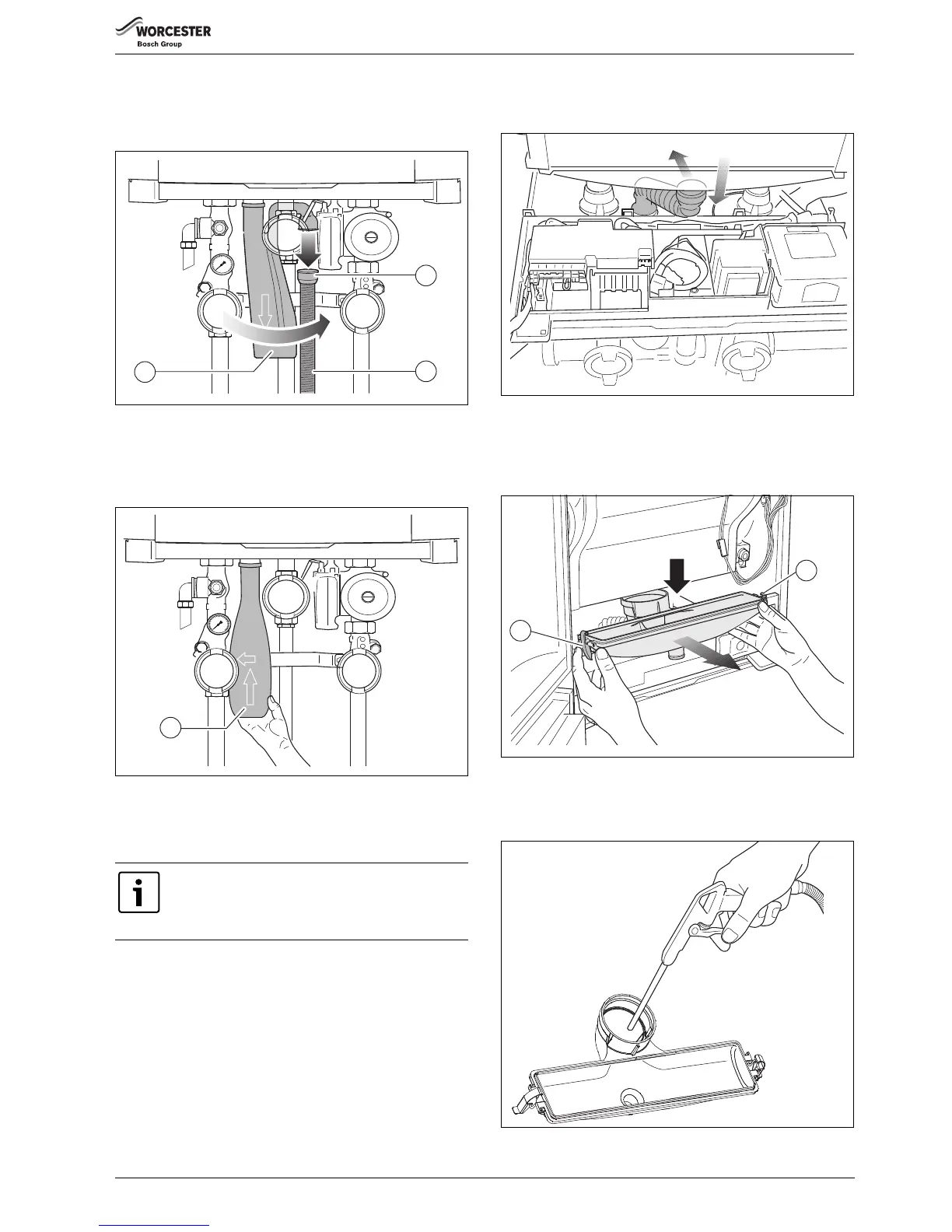

Maintenance
6720813171 (2015/04) 51
13.2.5 Disconnecting the condensate trap
Disconnect the condensate trap hose [3] and the rubber sleeve [2]
from the condensate trap [1].
Turn the trap clockwise a quarter turn.
Fig. 112 Disconnecting the condensate trap hose
[1] Condensate trap
[2] Rubber sleeve
[3] Condensate trap hose
Disconnect the condensate trap from the coupling and remove it [1].
Fig. 113 Disconnecting the condensate trap in the pump group
Rinse the condensate trap to clean it.
Fill the condensate trap with approximately 1.0 l. water before
refitting it.
13.2.6 Removing the condensate collector
Disconnect the flexible condensate drain hose and bend it
backwards.
Fig. 114 Removing the condensate trap hose
Open the 2 clamps on the right and left at the bottom of the
condensate collector [1].
Pull the condensate collector down (step 1) and remove it by pulling
it towards you (step 2).
Fig. 115 Removing the condensate collector
Check the condensate collector for damage and replace it if required.
Clean the condensate collector mechanically (using compressed air
or a soft brush) and rinse it with clean water.
Fig. 116 Cleaning the condensate collector
The condensate trap has a bayonet connector. After
inserting it, the condensate trap must be turned
clockwise through ¼ rotation until it clicks into place
( fig. 17, page 17).
6 720 648 726-113.1TD
3
2
1
1
6 720 648 726-114.1TD
6 720 648 726-115.1TD
1
2
1
6 720 648 726-116.1TD
1
6 720 648 726-117.1TD
