Pre-Installation
19
Greenstar 8000 Style – 6720883864 (2019/02)
WARNING:
Minimum plume management length:
The minimum distance of 500mm must be maintained between air inlet
and exhaust.
▶ Do not terminate the plume management inside the terminal
exclusion zone (shaded area) shown in figure 25.

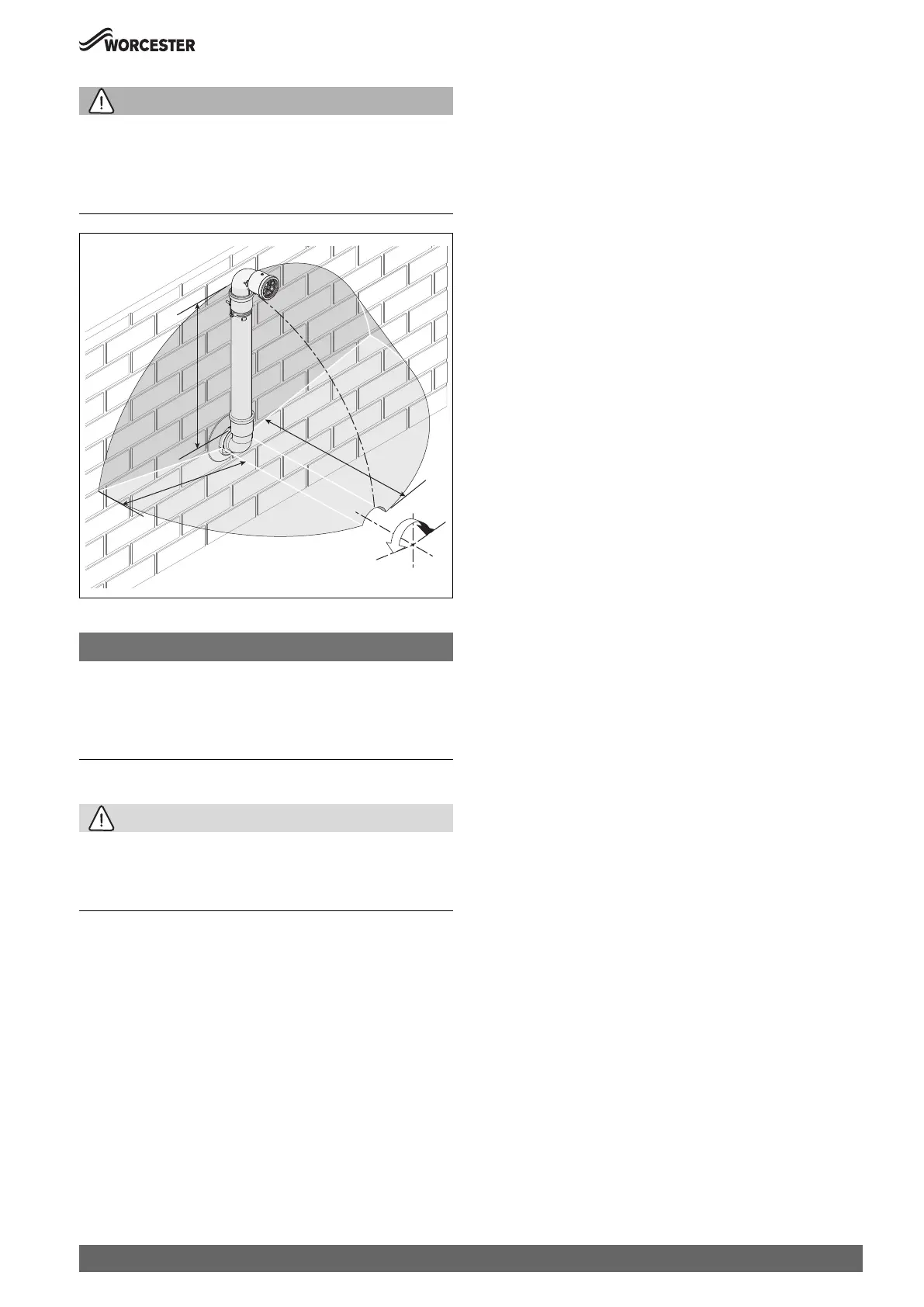

Fig. 25 Terminal exclusion zone
NOTICE:
Cutting the 500mm pipe
If the 500mm plume management pipe kit is cut, an additional elbow will
be required to join the pipe work.
▶ The Plume management extension kit contains the components
required for such a configuration.
4.4.4 Flue terminal positions
CAUTION:
Flue terminal positions
▶ All measurements are the minimum clearances required.
▶ Terminals must be positioned so to avoid combustion products
entering the building.
0010013548-001
5
0
0
m
m
5
00
mm
5
00
m
m
±80°
