Greenstar regular boiler range
horizontal fluing options
The Greenstar regular boiler range have the choice of
2 differently sized horizontal RSF flue systems, a 100mm
diameter telescopic flue kit including a plume management
kit and a 125mm diameter telescopic flue kit. Both systems
have different maximum lengths. Options 1 to 6 detail the
permissible lengths.
Horizontal RS flue
100mm dia. standard telescopic flue kit
Comprises:
1 x flue turret elbow
570mm (100mm dia.) of flue duct
1 x weather sealing ring
1 x internal collar
Part No. 7 716 191 082
125mm dia. standard telescopic flue kit
1 x flue turret elbow
600mm (125mm dia.) of flue duct including terminal
(as measured from centre of flue outlet)
1 x weather sealing plate
1 x internal plate
Part No. 7 719 003 702
The following criteria should be noted when planning
the installation.
•
The concentric flue system must be inclined at 3º
(50mm per metre) from the appliance, to allow
condensate to drain back into the boiler.
•
Because the appliance operates at high efficiency a
white plume of condensation will be emitted from the
terminal. Care must be taken when selecting the flue
terminal position.
Note: The maximum flue length must be reduced by the
following amounts for each bend used.
Greenstar CDi Greenstar CDi
Greenstar Ri Classic Regular Classic Regular
– all size flues 60/100mm flues 80/125mm flues
45º bend 1m 0.75m 1m
90º bend 2m 1.5m 2m

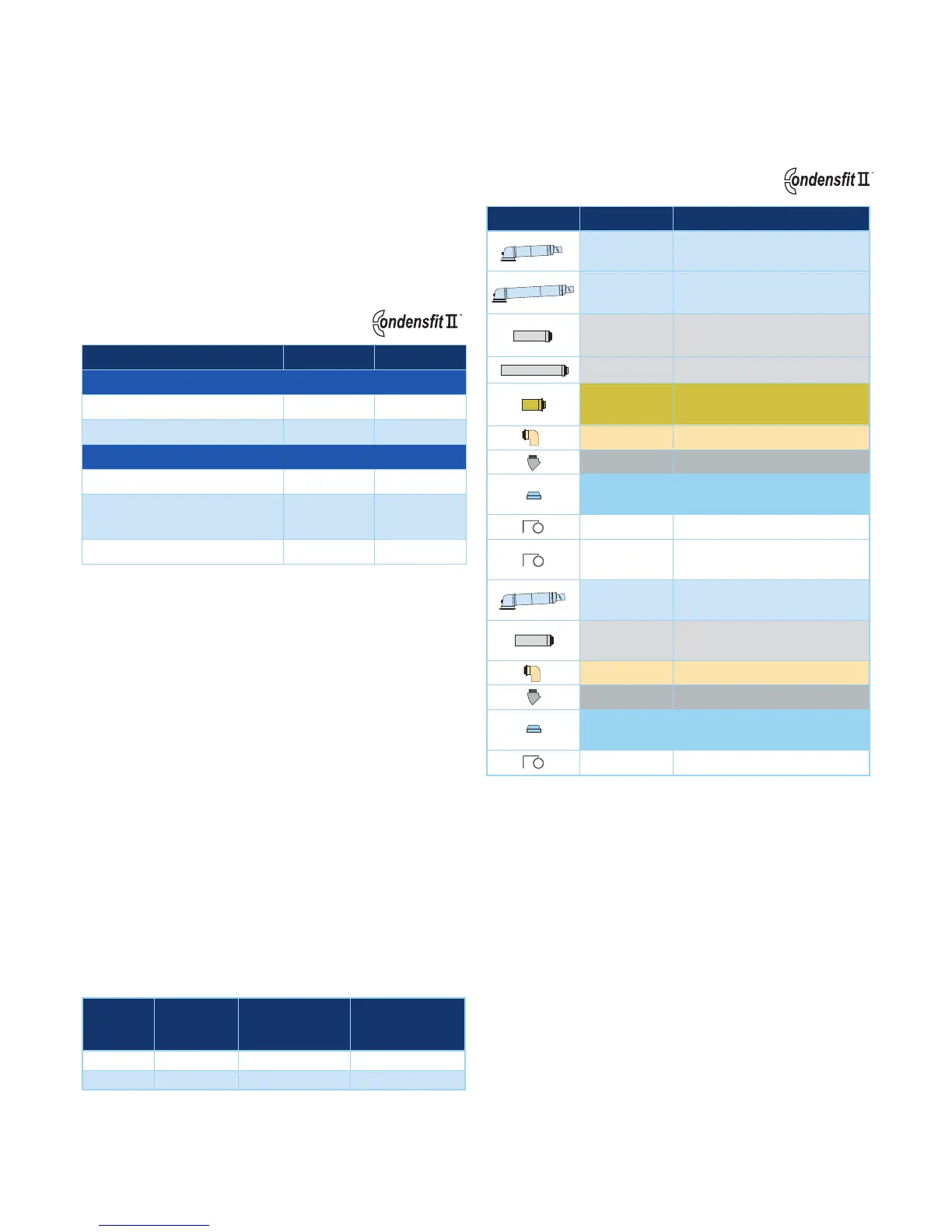

Components Part no. Description
7 716 191 082
100mm dia. standard telescopic
flue kit (350 - 570mm)
7 716 191 171
100mm dia. long telescopic
flue kit (570 - 790mm)
7 716 191 083
100mm dia. extension flue kit
(960mm*)
7 716 191 172 100mm dia. 2m flue extension
7 716 191 133
100mm dia. short flue extension
(220mm*)
7 716 191 084 100mm dia. 90º bend
7 716 191 085 100mm dia. 45º bend
7 719 002 432
100mm dia. high level
horizontal adaptor
7 716 191 092 100mm dia. support bracket kit
7 716 191 173
100mm dia. support bracket kit
(6 pack)
7 719 003 702
125mm dia. standard telescopic
flue kit
7 719 003 666
125mm dia. extension flue kit
(960mm*)
7 719 003 664 125mm dia. 90º bend
7 719 003 665 125mm dia. 45º bend
7 719 002 433
125mm dia. high level
horizontal adaptor
7 716 191 174 125mm dia. support bracket kit
Accessories
*Dimensions when fitted
Flue diameter 100mm 125mm
Greenstar Ri series
Minimum flue length 350mm* 405mm
Maximum flue length 4,600mm 13,000mm
Greenstar CDi Classic Regular series
Minimum flue length 350mm* 405mm
Maximum flue length
30CDi Classic Regular 7,900mm 18,500mm
40CDi Classic Regular 6,000mm 12,500mm
*Can be cut to 130mm. Please refer to instructions.
