Worcester Greenstar 40CDi Classic Regular - Greenstar Regular Boiler Range Plume Management System Options; Plume Management System; Standard Plume Management System

32
Greenstar regular boiler range
plume management system options

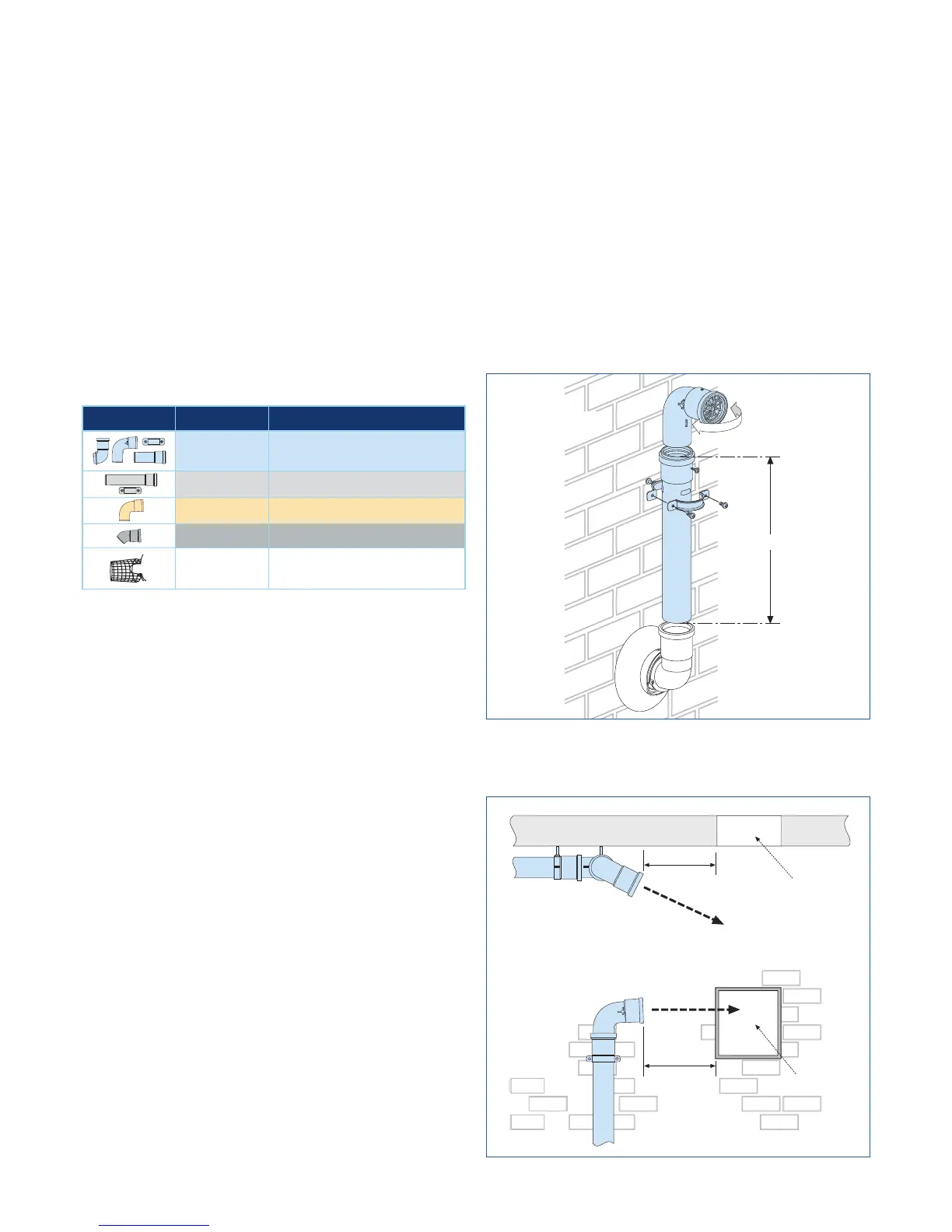

Standard plume management system
The flue terminal outlet has built-in stops to limit rotation
for horizontal fluing to allow condensate to run back into
the boiler for safe disposal. Do not attempt to force beyond
the limit stops.
All plume management sections must rise by at least
173mm per metre (10º) from the terminal to ensure that
condensate flows back into the boiler.
500mm (M)
Plume management system
60mm dia. plume management kit
Comprises:
1 x terminal bend
1 x extension 500mm
1 x outlet assembly
1 x clamp pack
Part No. 7 716 191 086
Accessories
Opening in building
e.g. window
Opening in building
e.g. window
Direction of
flue discharge
Plume deflector
Min.
1,500mm
Direction of
flue discharge
Min. 1,500mm
Opening in building
e.g. window
Direction of
flue discharge
Min. 1,500mm
Re-directing flue discharge from a 60mm dia. plume
management outlet
Components Part no. Description
7 716 191 086
60mm dia.
plume management kit
7 716 191 087 60mm dia. extension (1,000mm)
7 716 191 088 60mm dia. 90º bend
7 716 191 089 60mm dia. 45º bend (pair)
7 716 191 176
60mm dia. plume management
terminal guard round
