Worcester Greenstar FS 30CDi ErP User Manual

5
Controls
Greenstar FS CDi
ErP
– 6720818078 (2015/12)
3 Controls
▶ To gain access to the controls, pull the flap towards you and swing down.

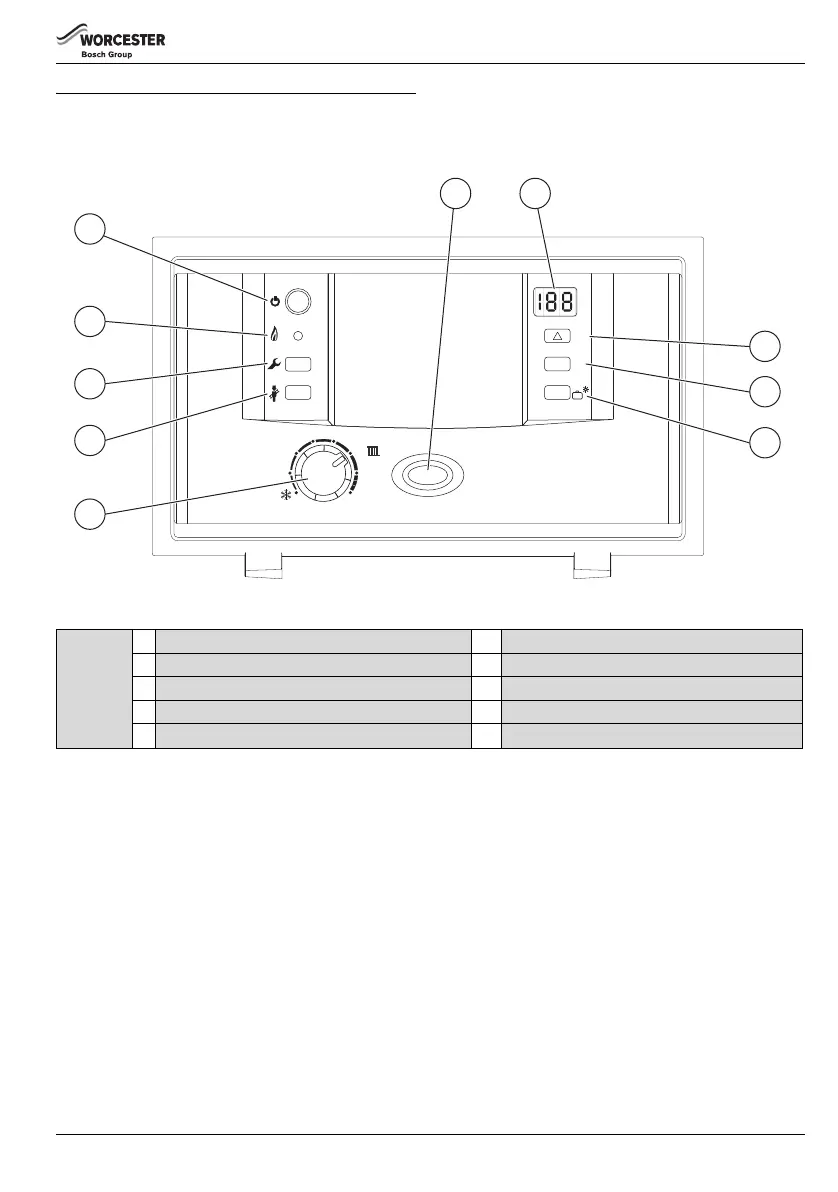

Fig. 1 Basic boiler controls
Boiler
Controls
1
Master switch for ON/OFF 6 Not used
2
Power ON and fault indicator (blue) 7 Central heating temperature control
3
Boiler display 8 Service Engineer button only
4
Reset button 9 Service Engineer button only
5
Not used 10 Burner ON indicator light (green)
6720808851-01.1Wo
1
2
3
4
5
6
max
reset
eco
7
8
9
1
10
6
5
2
3
4

Worcester Greenstar FS 30CDi ErP Specifications

General

Model	Greenstar FS 30CDi ErP
Category	Boiler
Output	30kW
ErP Rating	A
Fuel Type	Natural Gas
Mounting	Floor Standing
Type	Condensing
Max. working pressure	3 bar
Flow rate at 35°C rise	12.3 l/min
Central heating flow temperature range	30 - 80°C
Gas supply pressure	20 mbar
