Boiler/compartment clearances
Greenstar FS CDi
ErP
– 6720818078 (2015/12)
4 Boiler/compartment clearances

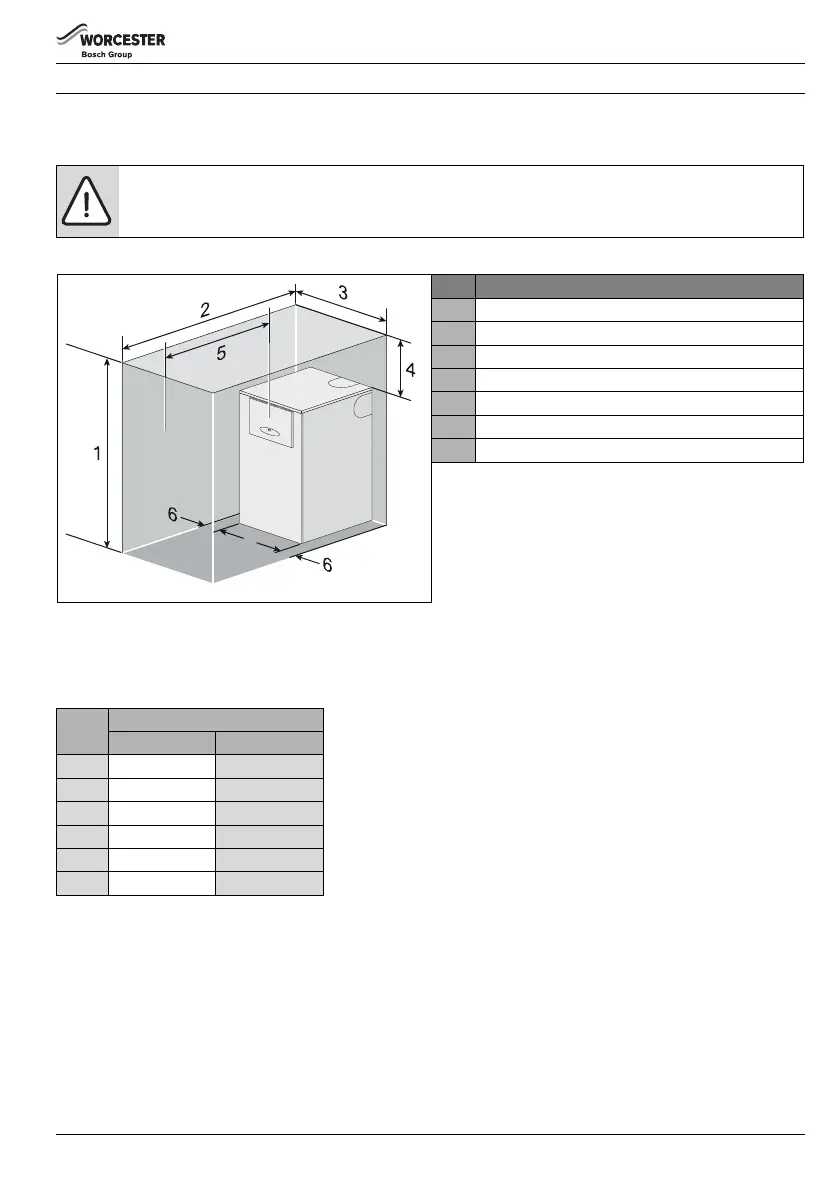

Your installer will have provided adequate space around the boiler for safety and servicing access.
4.1 Boiler clearances
Clearances
Refer to the figure above and the table below for the minimum
clearances to service the boiler and for an unventilated
compartment.
CAUTION: Restricted space.
The boiler may overheat.
▶ Do not restrict this space with the addition of cupboards, shelves etc. next to the boiler.
item Minimum distance requirements for compartments
1 Overall height of compartment
2 Overall depth of compartment
3 Overall width of compartment
4 Height above the boiler to top of compartment
5 Depth to front of boiler (or shelf)
6 Gap between sides of boiler and compartment
7 Gap between shelf and back of compartment
Compartment clearances (mm)
item Servicing Unventilated
1865 900
2 1200 800
3410 600
415 50
5600
1)
1) Can be reduced to 25mm to a removable
surface
200
65 100
2)
2) Can be reduced to 50mm on one side but
maintaining the overall 200 minimum
