Worcester GREENSTAR UTILITY 32/50

H
RESET
J
RIELLO CONTROL BOX
ELECTRICS

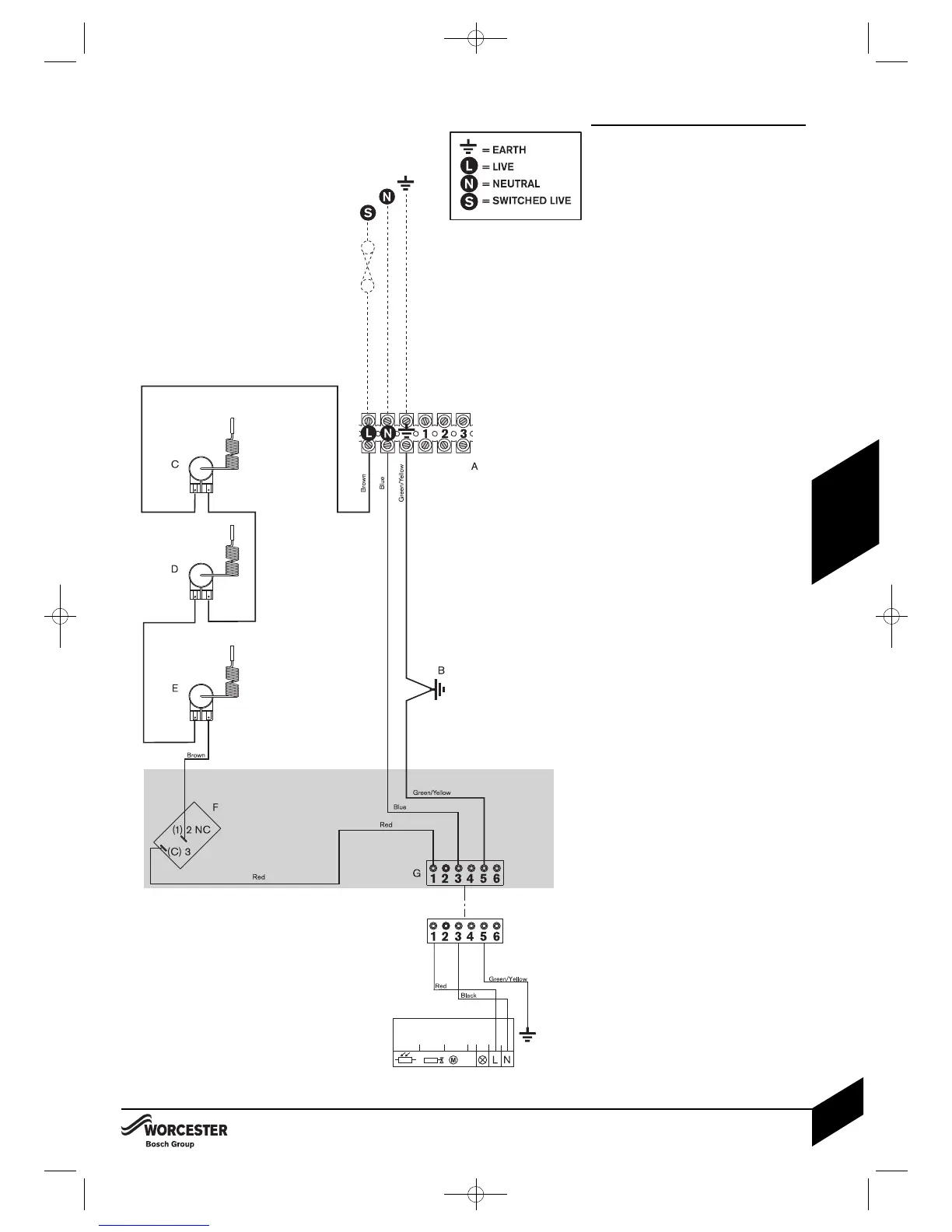

230V STANDARD WIRING DIAGRAM:
Key to components:
A - TERMINAL CONNECTOR BLOCK.
B - EARTH CONNECTOR.
C - FLUE THERMOSTAT (MANUAL RESET)
D - HEATING THERMOSTAT (AUTOMATIC
RESET)
E - HEATING THERMOSTAT (MANUAL
RESET).
F - CONTROL THERMOSTAT.
G - BURNER SOCKET.
H - BURNER PLUG.
J - BURNER CONTROL BOX.
ELECTRICS
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR UTILITY 32/50 & 50/708 716
109 711B 07.2010
29
