Worcester GREENSTAR UTILITY 32/50

78
11
13
12
14
2
3456
910
1
15
16 17
2a
RIELLO RDB BURNERS

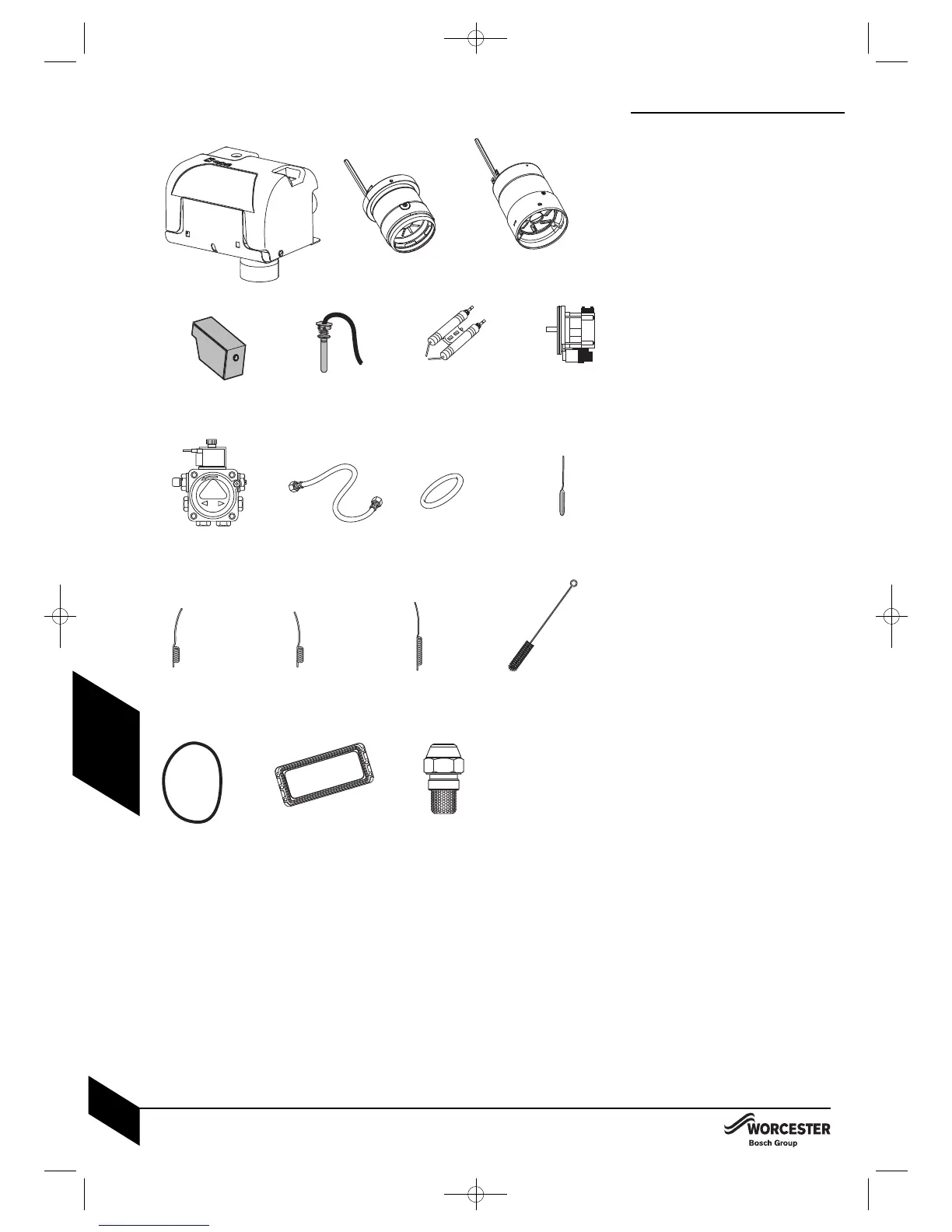

SHORT PARTS LIST
1 Burner - Riello RDB 3.2 32/50
Part Number: 8 718 686 583 0
Burner - Riello RDB 4.2 50/70
Part Number: 8 718 686 726 0
2 Combustion head - ELICA G3 32/50
Part Number: 8 716 116 102 0
2a Combustion head - ELICA G10 50/70
Part Number: 8 716 116 105 0
3 Control box 535 RSE/LD
Part Number: 8 716 109 230 0
4 Photocell
Part Number: 8 716 109 193 0
5 Ignition electrode
Part Number: 8 716 109 183 0
6 Motor
Part Number: 8 718 687 343 0
7 Oil pump - Riello RDB
Part Number: 8 716 109 182 0
8 Flexible oil hose kit
Part Number: 8 716 116 103 0
9 Burner 'O' ring gasket
Part Number: 8 718 687 347 0
10 Heating control thermostat
Part Number: 8 716 107 621 0
11 Auto reset High Limit thermostat
Part Number: 8 716 107 798 0
12 Manual reset High Limit thermostat
Part Number: 8 716 107 621 0
13 Manual reset flue thermostat
Part Number: 8 716 107 624 0
14 Cleaning brush
Part Number: 8 716 109 428 0
15 Gasket manifold 32/50
Part Number: 8 718 680 315 0
Gasket manifold 50/70
Part Number: 8 718 680 344 0
16 Secondary Heat Exchanger gasket 32/50
Part Number: 7 747 009 829 0
Secondary Heat Exchanger gasket 50/70
Part Number: 8 718 680 093 0
17 Oil nozzle 32/50
1.0 60° ES (32kW output)
Part Number: 8 716 156 675 0
1.10 60° S (41kW output)
Part Number: 8 716 142 795 0
1.35 45° S (50kW output)
Part Number: 8 716 142 796 0
Oil nozzle 50/70
1.25 60° S (50kW output)
Part Number: 8 716 156 511 0
1.50 45° S (60kW output)
Part Number: 8 716 108 098 0
2.00 45° S (70kW output)
Part Number: 8 716 110 047 0
SHORT PARTS LIST
REILLO RDB BURNERS
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR UTILITY 32/50 & 50/708 716
109 711B 07.2010
