USER MANUAL FOR WTS TOWERS
HOW TO USE STEP BY STEP
LINE ARRAY ELEVATION IN
MECHANISM MODE

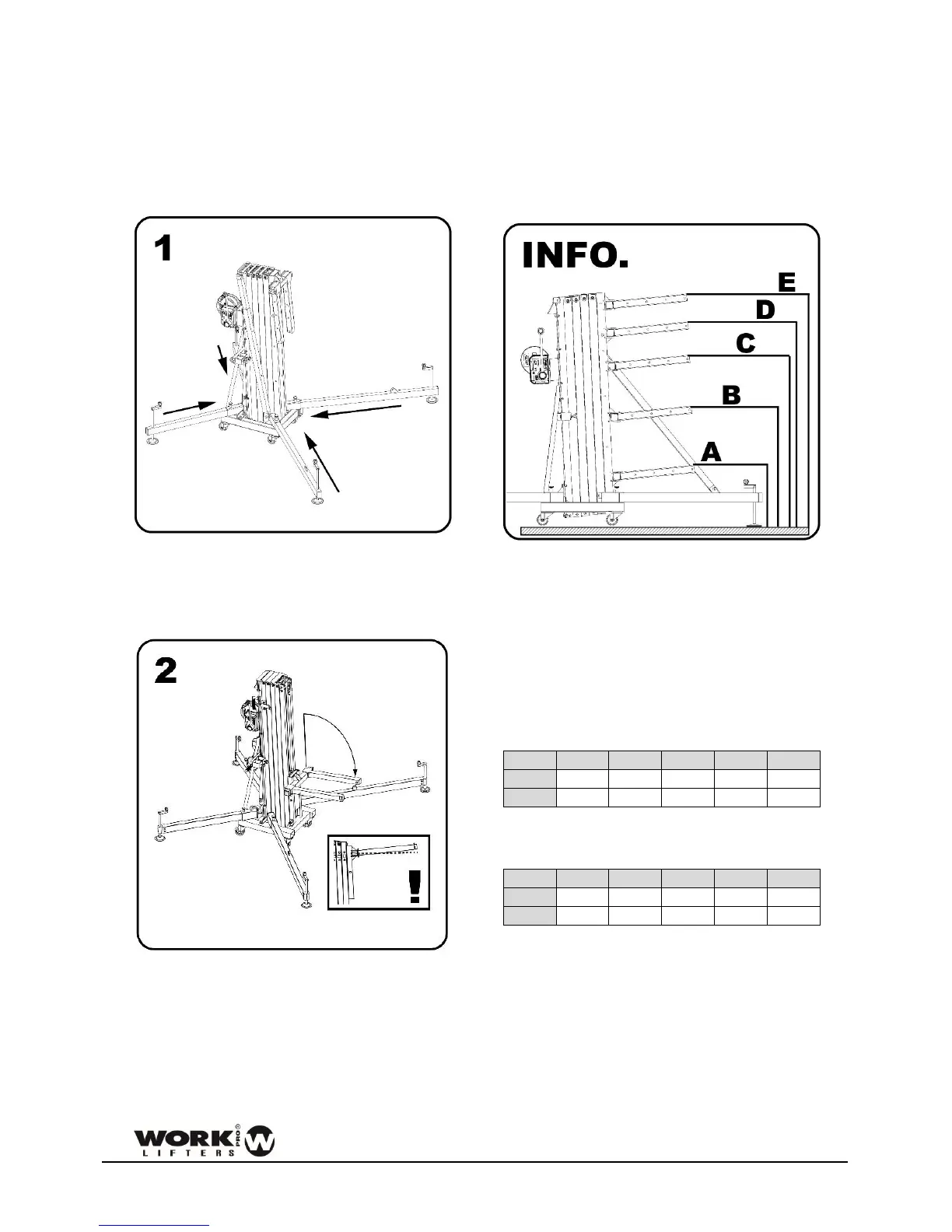

Figure 27
Fix and secure the stabilizer legs to the base.
Figure 28
Turn the forks and adjust to the desired width.
Ensure it with the pins.
Figure 29
WTS towers have the option of changing the
position of the carriage. Therefore, depending on
the use, the load can be raised from different
heights. The carriage can be rotated to obtain the
required height.
WTS
A
B
C
D
E
256
435
695
1105
1315
1505
375
435
695
1105
1315
1505
Dimensions in mm.
Figure 30
WTS
A
B
C
D
E
256
17,13
27,36
43,5
51,77
59,25
375
17,13
27,36
43,5
51,77
59,25
Dimensions in inches.
Figure 31
