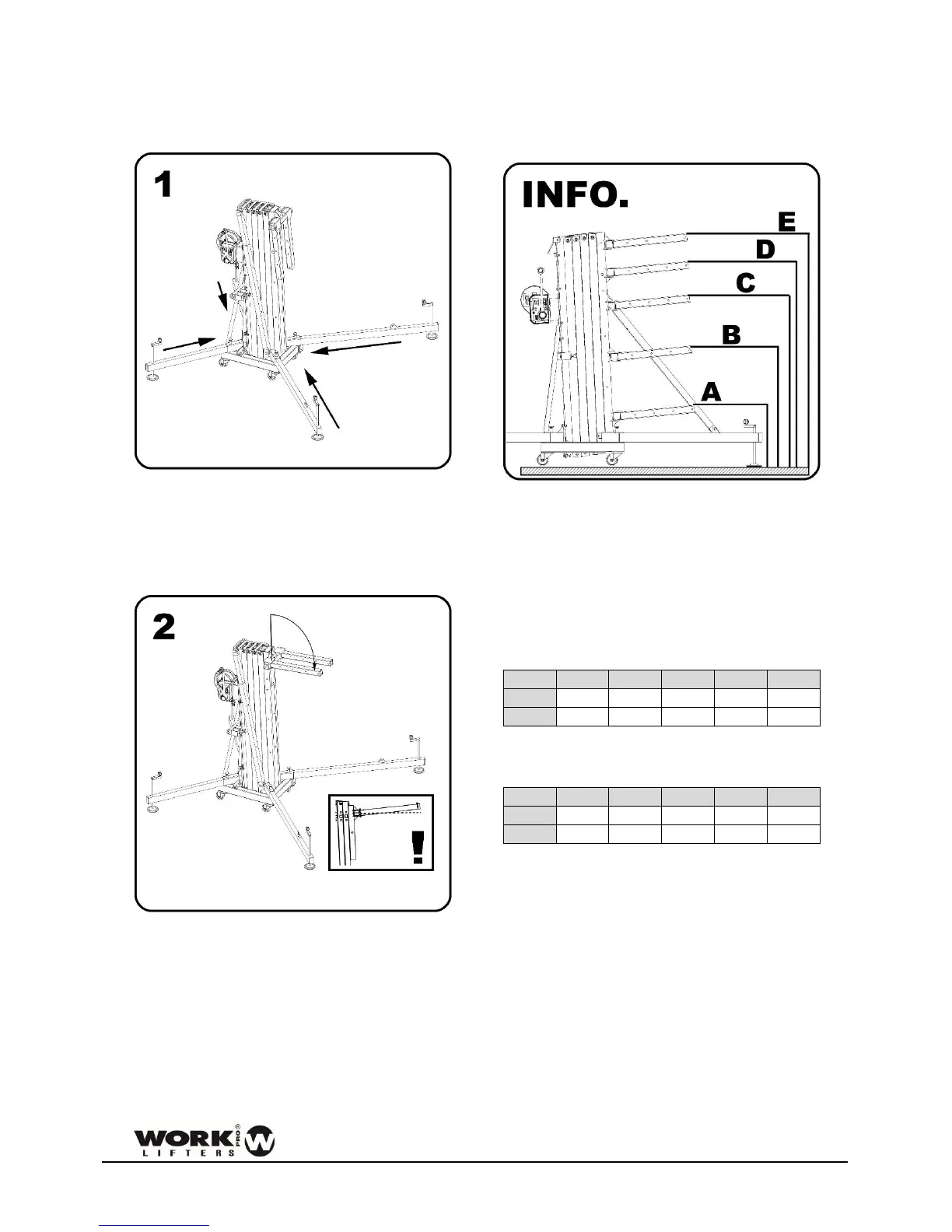

USER MANUAL FOR WTS TOWERS
LINE ARRAY ELEVATION IN
STRUCTURAL MODE
Figure 43
Fix and secure the stabilizer legs to the base.
Figure 44
Turn the forks and adjust to the desired width.
Ensure it with the pins.
Figure 45
WTS towers have the option of changing the
position of the carriage. Therefore, depending on
the use, the load can be raised from different
heights. The carriage can be rotated to obtain the
required height.
WTS
A
B
C
D
E
256
435
695
1105
1315
1505
375
435
695
1105
1315
1505
Dimensions in mm.
Figure 46
WTS
A
B
C
D
E
256
17,13
27,36
43,5
51,77
59,25
375
17,13
27,36
43,5
51,77
59,25
Dimensions in inches.
Figure 47
