USER MANUAL FOR WTS TOWERS
OPERATION WITH OVERLOAD
In the event that the tower has to raise a load higher than the one marked in features, the tower would
enter overload mode. Under these conditions, the following occurs:

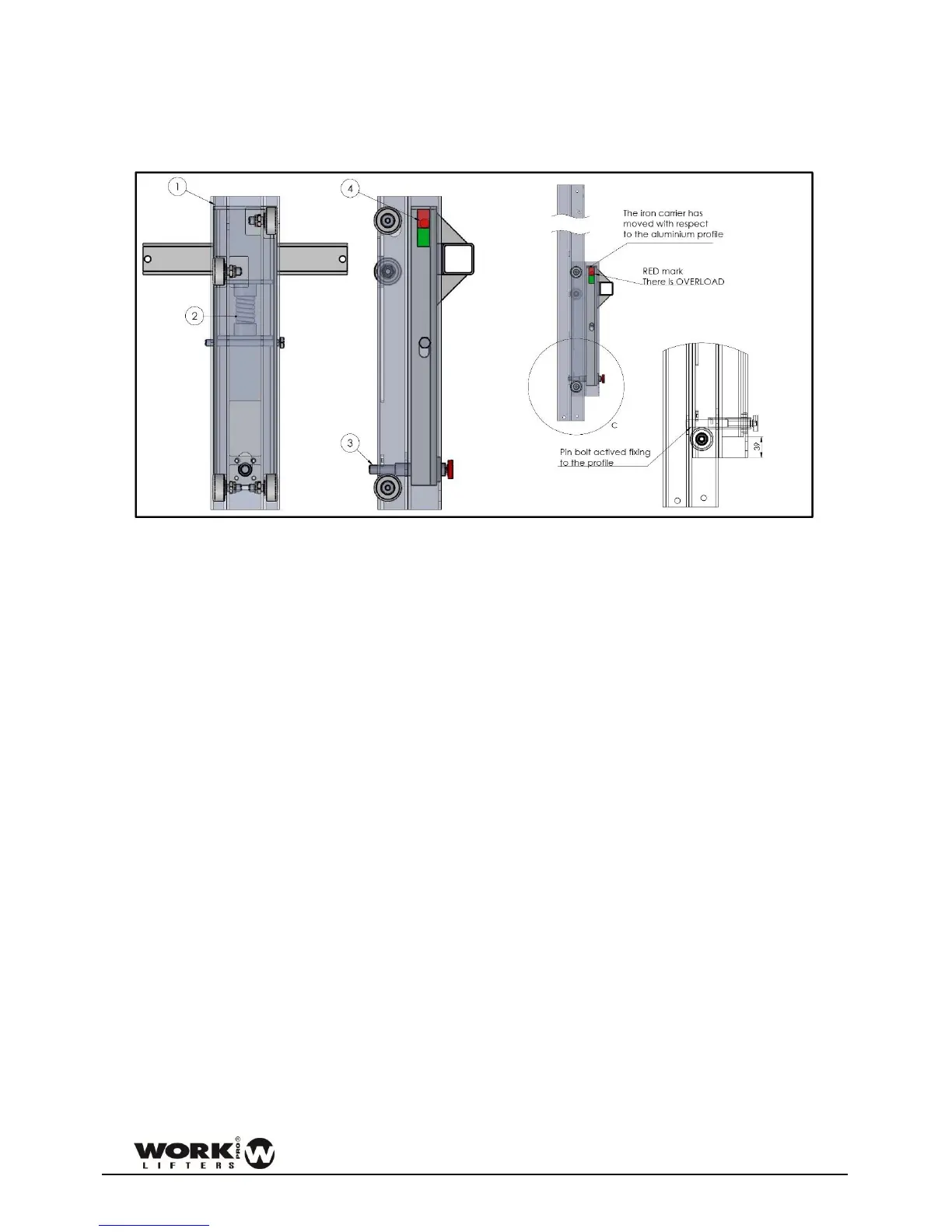

Figure 106
- There is a more pronounced vertical displacement in the iron carriage (1).
- The internal spring (2) shrinks due to this additional pressure.
- The safety pin (3) is released from its resting position and entered the first free hole found in the
aluminum profile, blocking the tower and preventing any attempt to raise the load.
- In the same way, the own characteristics of the exclusive DYNSYS handle prevents to force the winch.
- The status dial window (4) shows the RED color of overload.
To get out of this state of overload, it is necessary to lower the load and adjust it to the weight supported
by the tower.
To do this, pull the safety pin (3) to release it and, keeping it, turn the hand winch handle to lower the
load. Throughout this process, the spring (2), will be relaxed by reducing the pressure exerted on it and
the iron car will go back to the initial position. At the end of the descent of the load, you can release the
safety pin that will remain in its resting position.
