USER MANUAL FOR WTS TOWERS
Figure 67
Place the reinforcement bars and fix them with
its pins to frontal legs.
Figure 68
Place the tower in its working position and level
until the bubble level is centered. Wheels should
not get in contact with the ground
Calculate the load to be lifted with the tower. An
example of basic load calculation is attached.

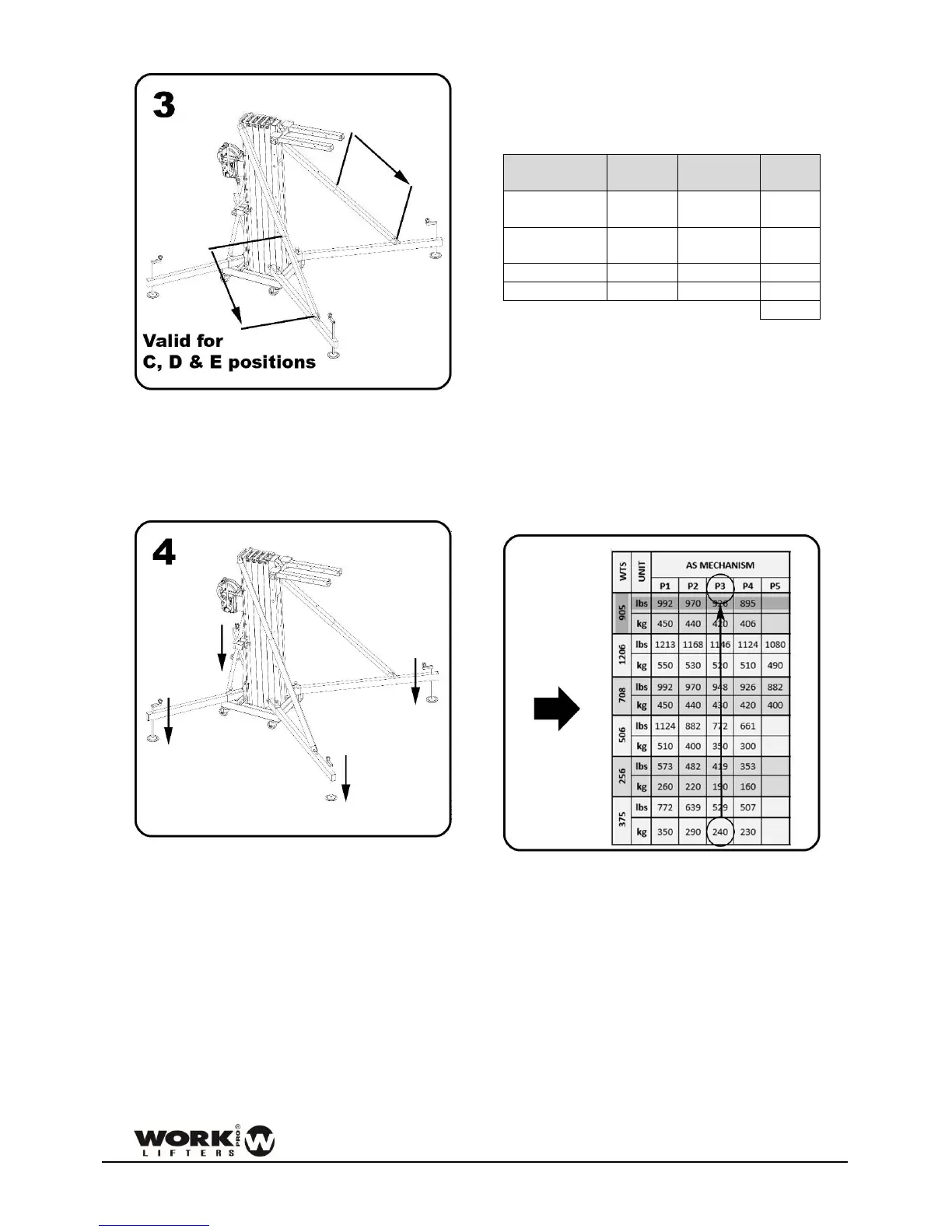

Figure 69
In this example we have a weight of 231,15 kg.
With that load, check what position the load
should have on the tower fork. Take into account
that the truss is supported by two points of the
fork. To find out which is the largest load, take
the farthest position from the base of the fork.
Figure 70
Choose the WTS tower model. Check for the
value immediately above the load you need.
With this value, take the exact position to which
the accessory for fixing the truss must be placed.
To Next Page
