WorkPro WTS 905/DY - Placing the Load

31
USER MANUAL FOR WTS TOWERS
PLACING THE LOAD
1. Determine the position where the load will be placed and consult the tower capacity. Never
exceed it.
2. The “X” distance between the load is taken from the carriage to the end of the horns.
3. When possible, place the load as close to the carriage as possible. This prolongs the life of the
tower.
TOWER
X in P1
(mm / inch)
X in P2
(mm / inch)
X in P3
(mm / inch)
X in P4
(mm / inch)
X in P5
(mm / inch)
WTS 1206/DY
WTS 905/DY
WTS 708/DY
85
270
450
635
820
3.34
10.63
17.72
25
32.33
WTS 506/DY
100
260
425
580
3.93
10.23
16.73
22.83
WTS 375/DY
WTS 256/DY
95
225
355
485
3.74
8.85
13.97
19.1

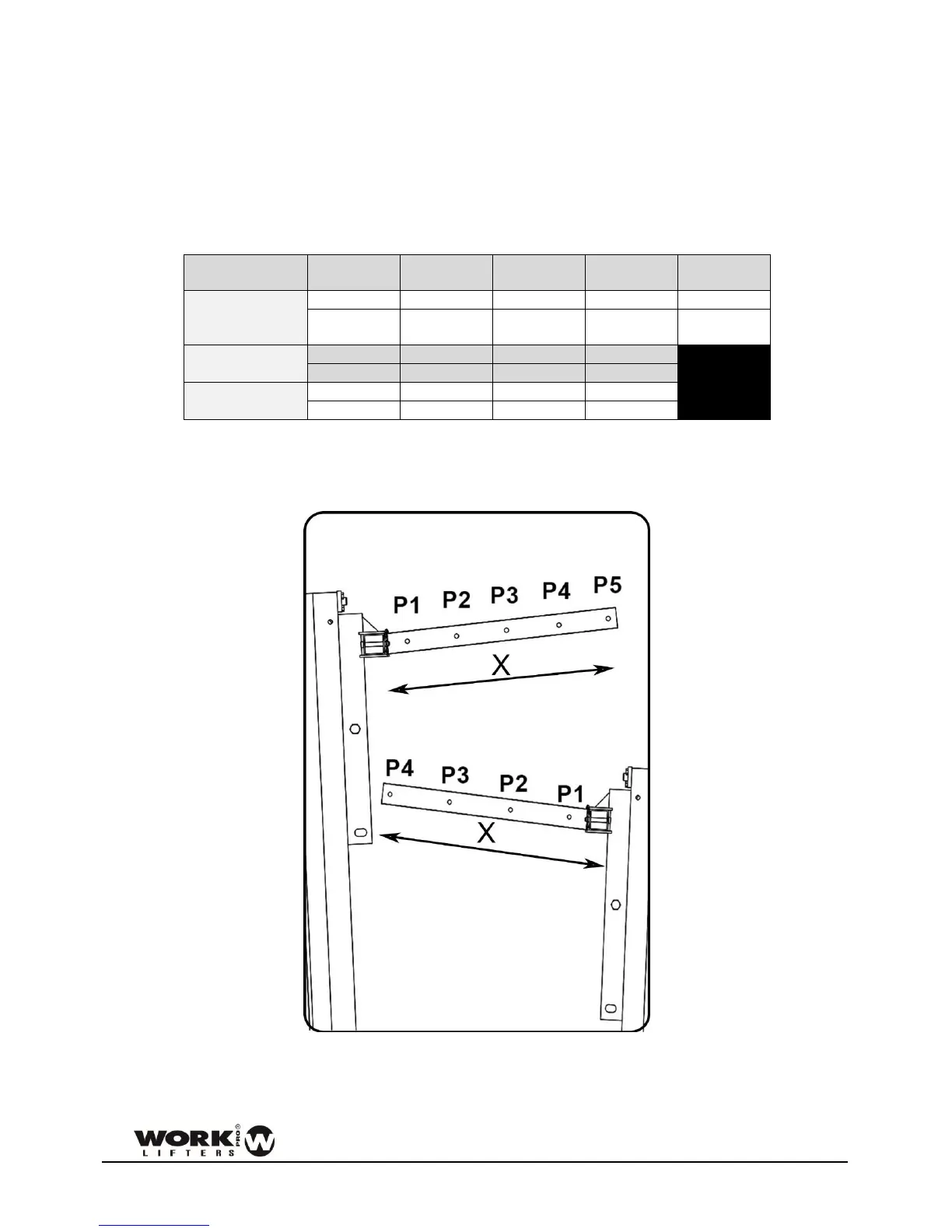

Figure 98
Detail of the position of all points of load.
Figure 99
Detail of load positions.
