USER MANUAL FOR WTS TOWERS
OPERATING
NORMAL OPERATION, WITHOUT OVERLOAD

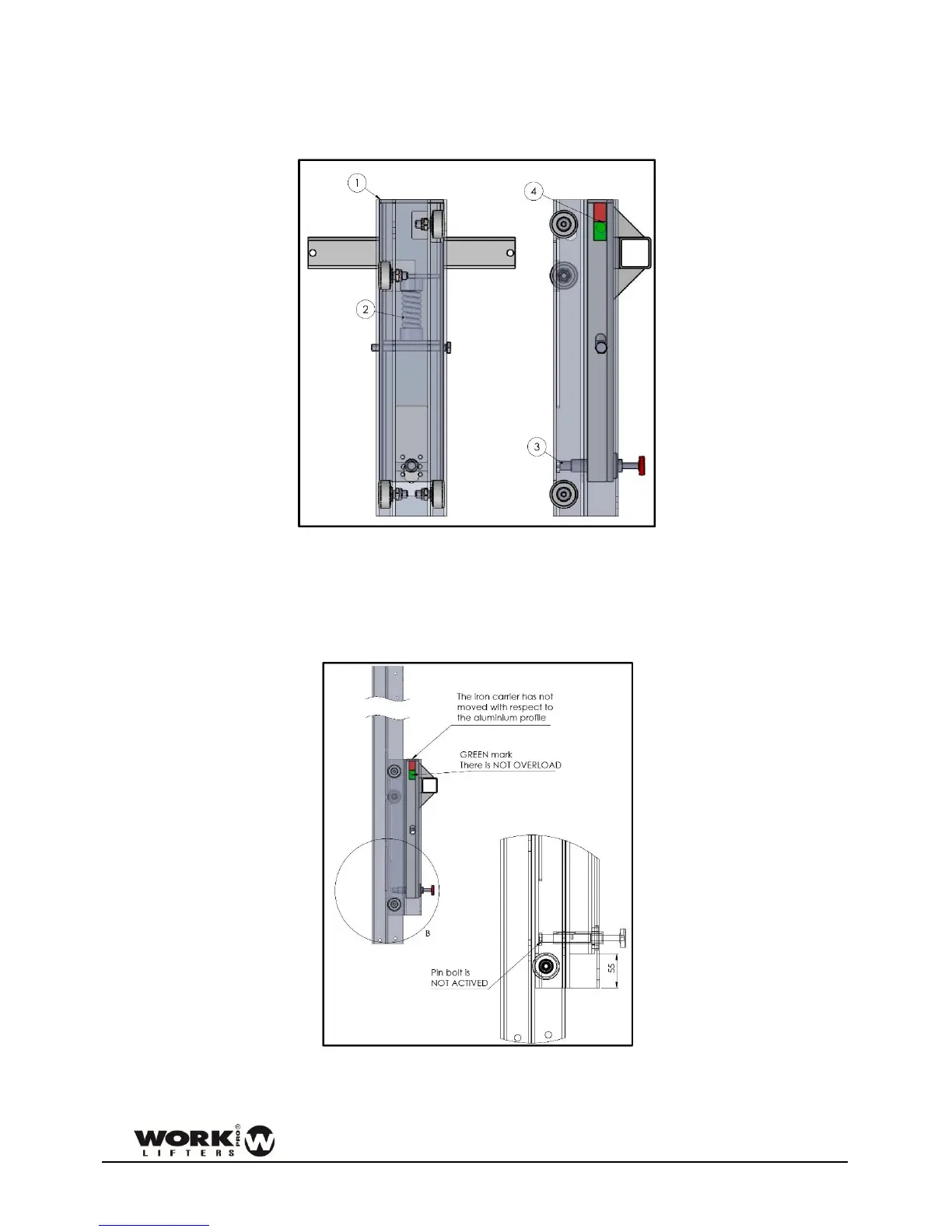

Figure 104
Under these conditions, the tower raises the coupled load and no vertical displacement occurs in the
carriage (1) so that the inner spring (2) does not compress and the safety pin (3) does not act. The winch
handle allows the user to raise or lower the load with ease and the window of the status marker (4) shows
the color GREEN.
Figure 105
