TO ATTACH THE PADS TO A LOAD
Make sure the contact surfaces of the load and vacuum pads are clean (see
“Pad Cleaning”).

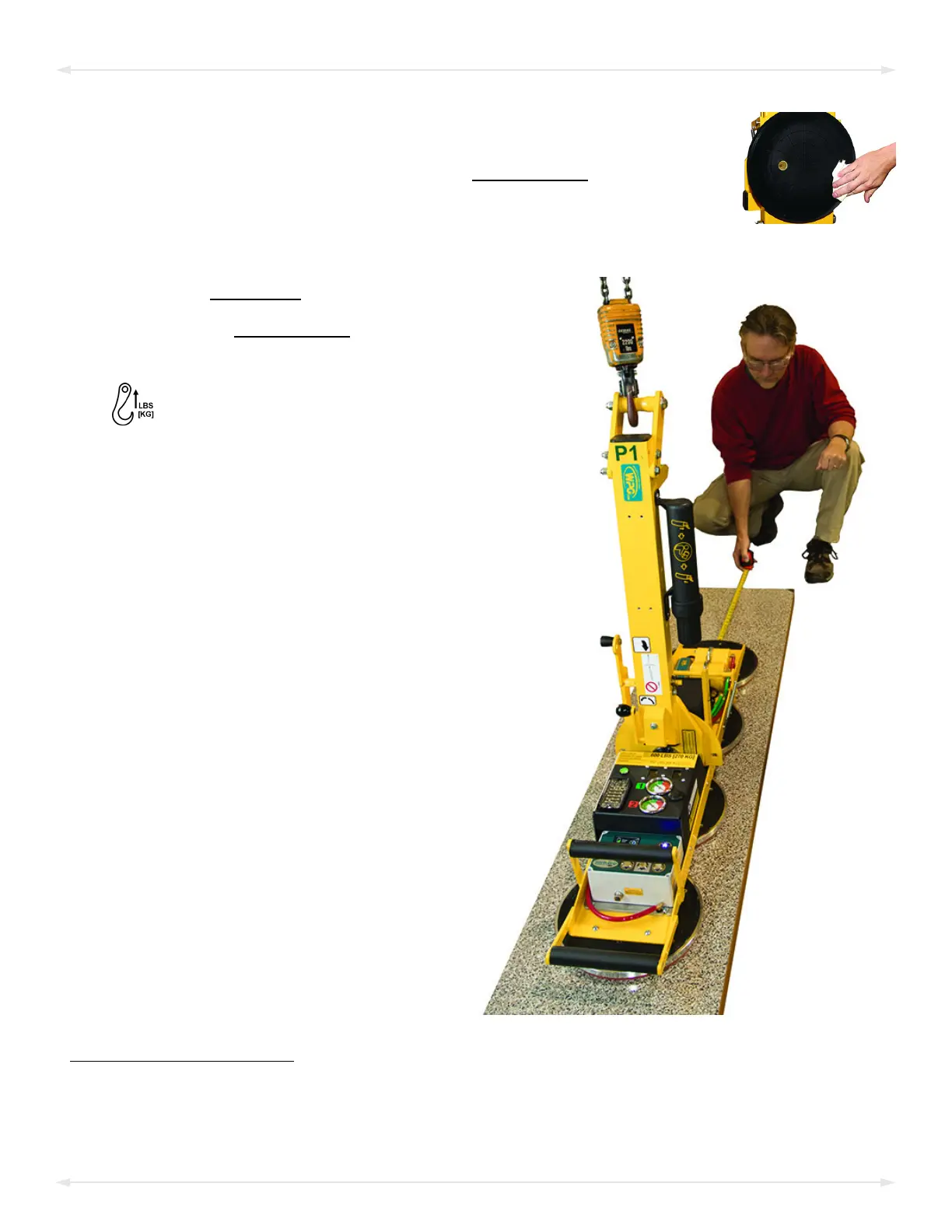

Positioning the Lifter on the Load
1) Center the pad frame on the load.
1
2) Make sure all vacuum pads will fit on
the load and will be loaded evenly.
Consult the Per-Pad Load
Capacity.
3) Place the vacuum pads in contact with
the load surface.
1..... The lifter is designed to handle the maximum load weight when the load’s center of gravity is positioned within 2" [5 cm] of the lifter’s rotation
axis. Uncentered loads may rotate or tilt unexpectedly.
