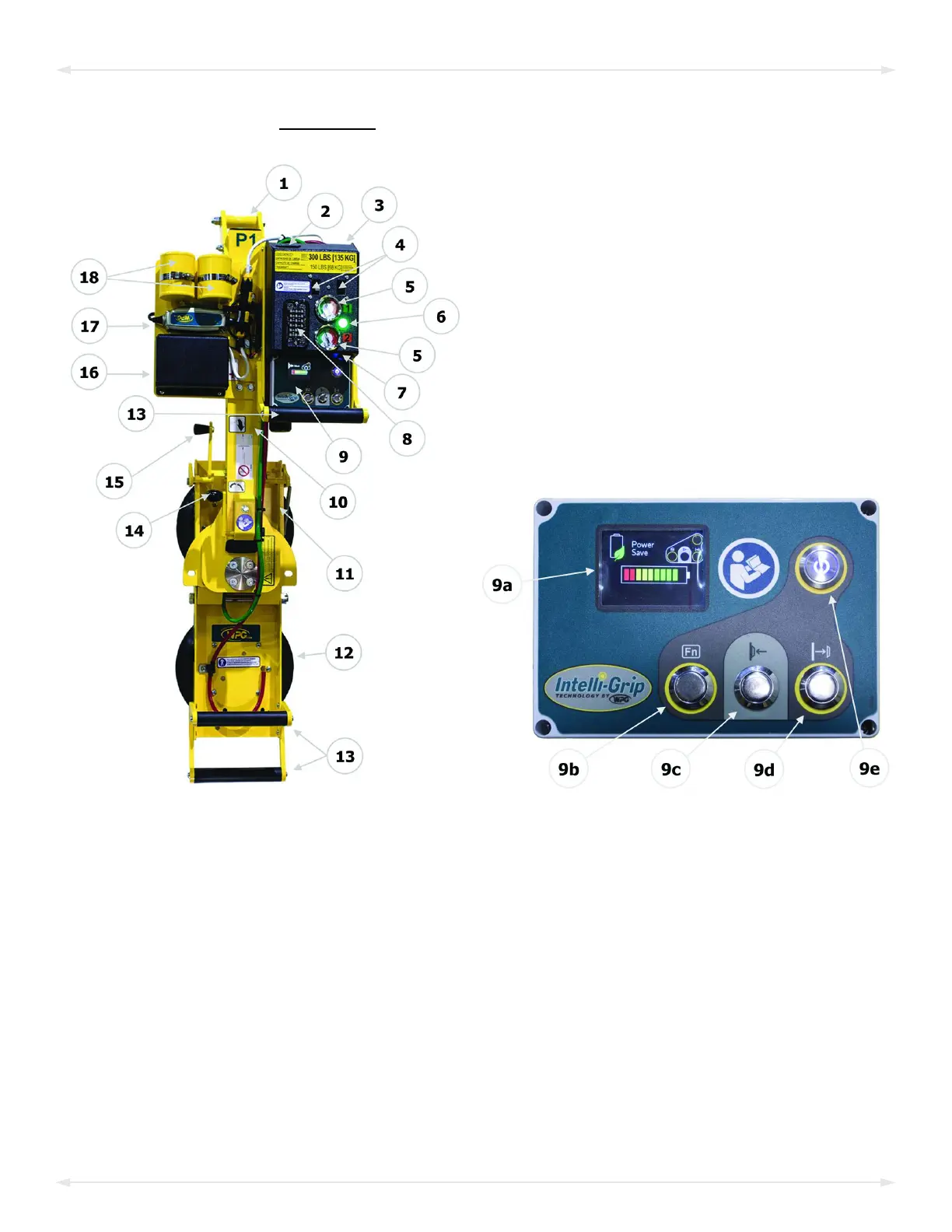

Features shown here are underlined on their first appearance in each section following.
1 LIFT POINT 2 BUZZER BATTERY HOLDER
3 COVER for VACUUM PUMP, VACUUM
SENSORS and AIR FILTERS
4 Windows for AIR FILTERS 5 VACUUM GAUGES 6 VACUUM LIFT LIGHT
7 NOTIFICATION BUZZER 8 STROBE LIGHT 9 INTELLI-GRIP® CONTROL UNIT
9a LCD SCREEN with BATTERY GAUGE 9b “FUNCTION” BUTTON 9c “ATTACH” BUTTON
9d “RELEASE” BUTTON 9e POWER BUTTON 10 LIFT BAR
11 PAD FRAME 12 VACUUM PAD 13 CONTROL HANDLES
14 ROTATION RELEASE LEVER 15 TILT RELEASE LEVER 16 BATTERY
17 BATTERY CHARGER 18 VACUUM RESERVE TANKS Not shown: INSTRUCTIONS
CANISTER
Note: A standard P1HV1102DC3 is shown. Although some of the following photos do not show
this specific lifter, they all illustrate how this kind of lifter functions.
For information about specific parts, see “REPLACEMENT PARTS” and/
or any separate
instructions for Product Options.
