Rev 2.2/12-21 P1-02DC3: #351227
1) Remove all shipping materials and save them with the shipping container for future use.
2)
Adjust the lift point to optimize the lifter's
hang angle:

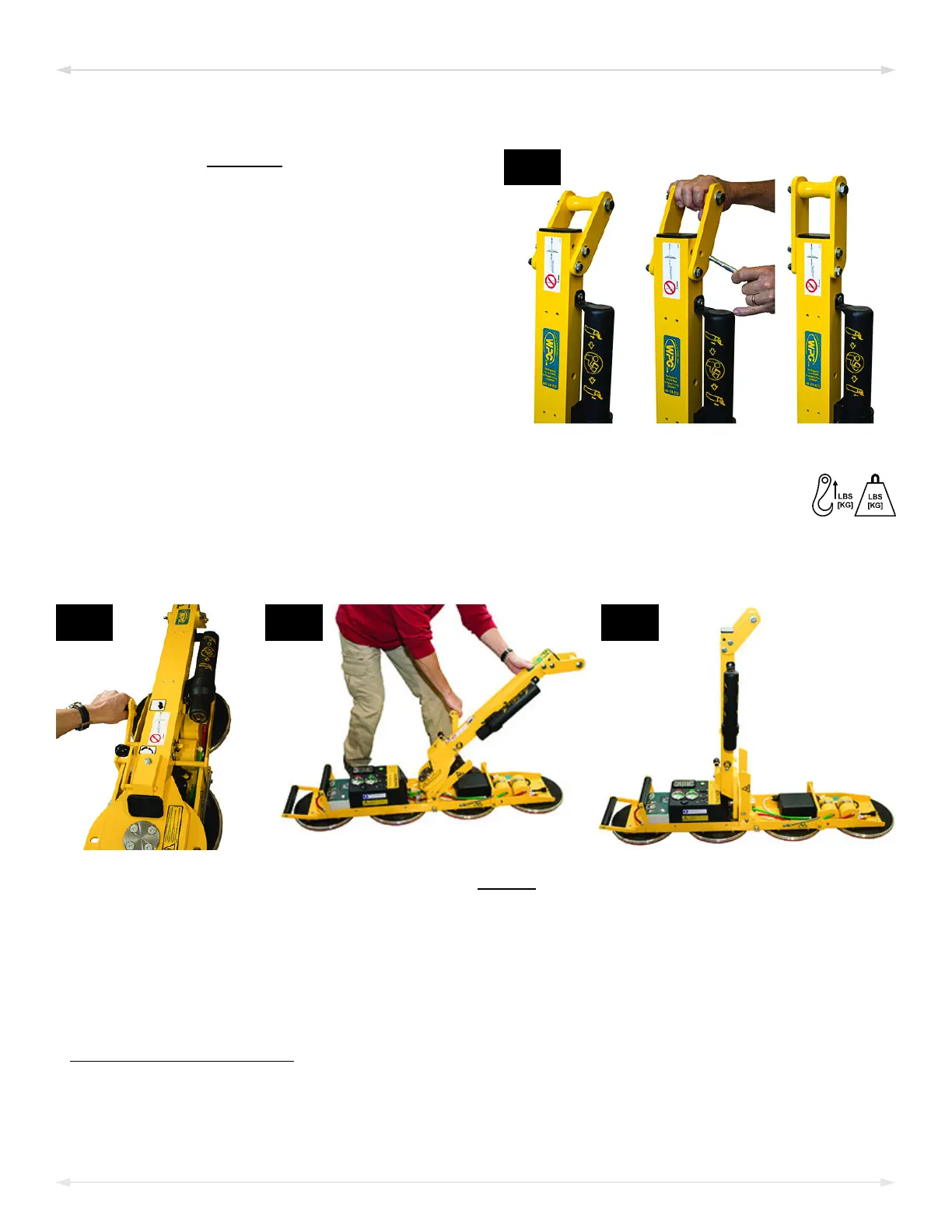

2.1) Remove the retaining bolt and loosen
the pivot bolt (fig. 2A).
2.2) Move the lift poin
t to the appropriate
position.
1
2.3) Reinstall the retaining bolt and tighten
both bolts securely.
3) Suspend the lifter from appropriate
hois
ting equipment:
3.1)
Select a crane and/or hoist rated for the Maximum Load Capacity plus the
Lifter Weight.
Note: Any lifter use must comply with all statutory or regulatory standards for hoisting
equipment in your region.
3.2) Disengage the tilt latch and raise the lift bar (fig. 3A-C).
1..... Moving the lift point forward (away from operator) helps keep the hang angle vertical while the lifter is loaded; moving the lift point rearward
(towards operator) helps keep the hang angle vertical while the lifter is unloaded.
ASSEMBLY
