GENERAL
WG972-E4, WSM
G-32

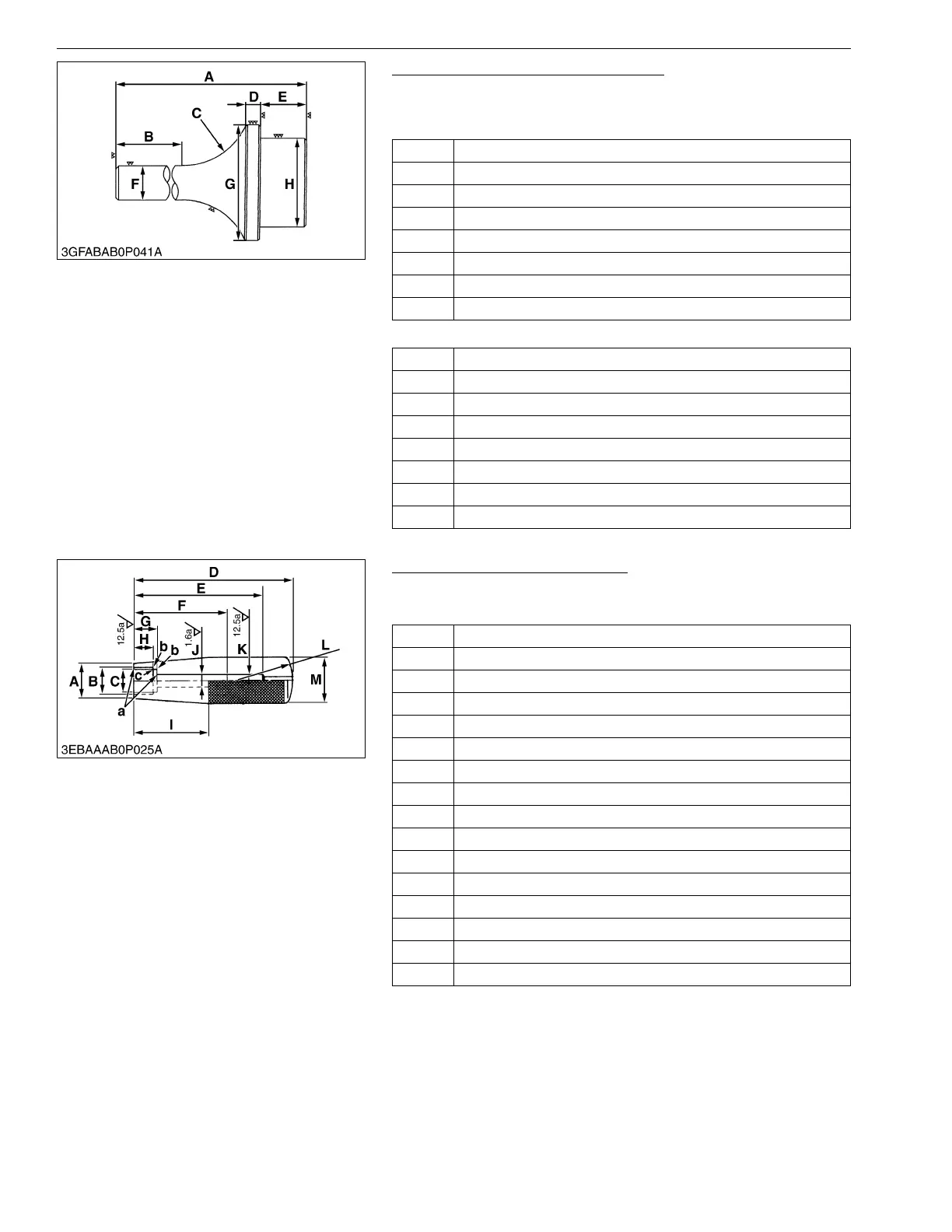

Crankshaft Bearing 1 Replacing Tool
Application
• Use to press out and press fit the crankshaft bearing 1.
[Press Out]
[Press Fit]
9Y1211108GEG0012US0
Valve Stem Seal Replacing Tool
Application
• Use to press fit the valve stem seal.
9Y1211108GEG0013US0
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 22 mm (0.87 in.)
F 20 mm dia. (0.79 in. dia.)
G 47.90 to 47.95 mm dia. (1.886 to 1.887 in. dia.)
H 43.90 to 43.95 mm dia. (1.729 to 1.730 in. dia.)
A 130 mm (5.12 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 9 mm (0.4 in.)
E 24 mm (0.94 in.)
F 20 mm (0.79 in.)
G 68 mm dia. (2.7 in. dia.)
H 43.90 to 43.95 mm dia. (1.729 to 1.730 in. dia.)
A 17.5 mm dia. (0.689 in. dia.)
B 13.7 to 13.9 mm dia. (0.540 to 0.547 in. dia.)
C 11.0 to 11.2 mm dia. (0.433 to 0.440 in. dia.)
D 75 mm (3.0 in.)
E 60 mm (2.4 in.)
F 45 mm (1.8 in.)
G 11.5 to 11.6 mm (0.453 to 0.456 in.)
H 8.5 mm (0.33 in.)
I 37.5 mm (1.48 in.)
J 6 mm dia. (0.2 in. dia.)
K 6 mm dia. (0.2 in. dia.)
L R 30
M 26 mm dia. (1.0 in. dia.)
a Chamfer 0.3 mm (0.01 in.)
b Chamfer 0.4 mm (0.02 in.)
c Chamfer 0.2 mm (0.008 in.)
KiSC issued 07, 2015 A
