Instrument configuration (CONFIG mode) Turb 2000 Series
32 ba75695e03 10/2013

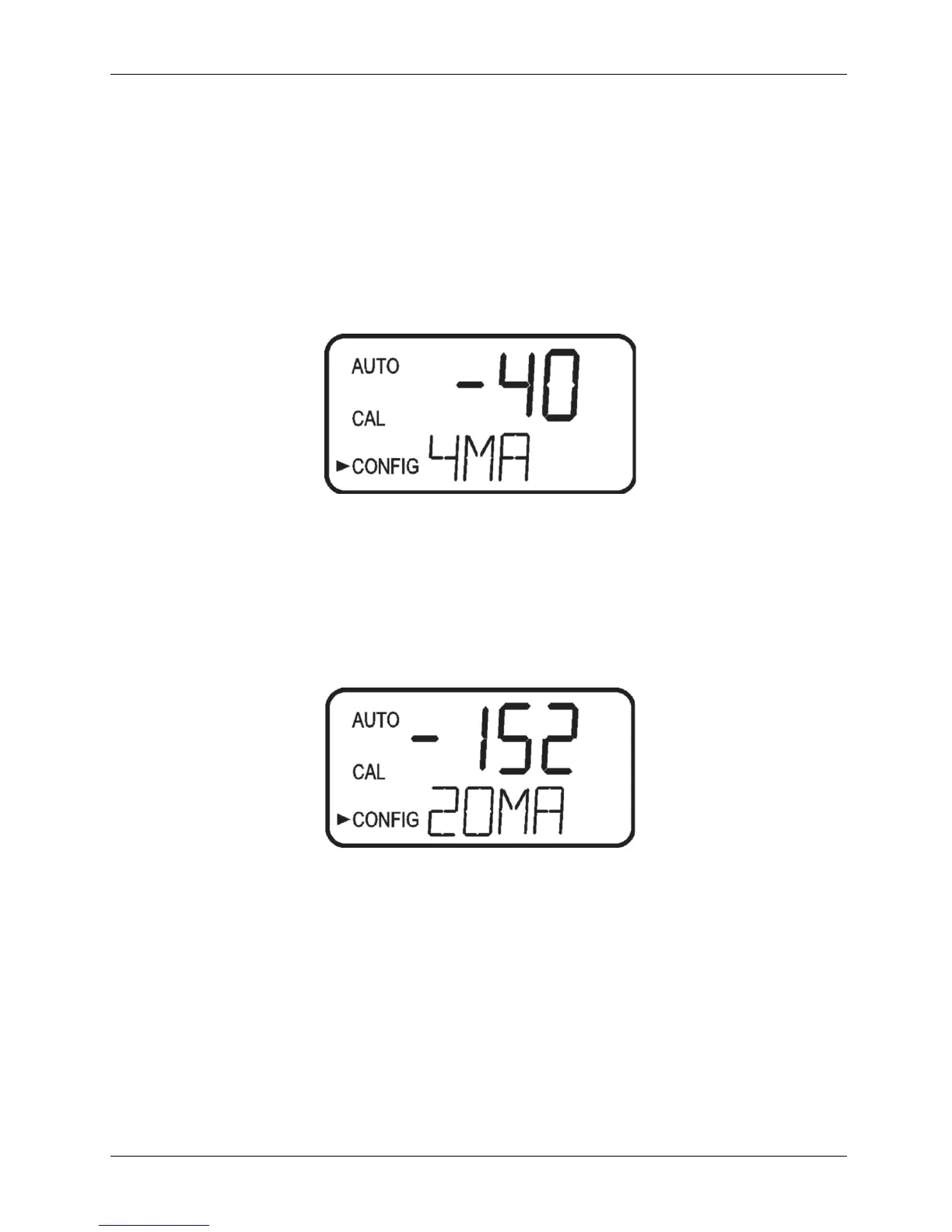

6.16 4 mA Adjustment
If the 4-20 mA setting is turned ON (see section 6.2 S
ETTING THE 4-20 MA), the following two menus will
appear. The first menu outputs a constant 4 mA while allowing for a small amount of adjustment. The
adjustment can be made using the and buttons. This adjustment will allow the operator to make
the Turb 2000 series agree with a PLC or SCADA system. The adjustment limits are ± 200 counts or
about ± 0.2 mA.
This setting will be slightly different on each instrument as each Turb 2000 series will be factory set to
4.00 mA. Press the OK button when adjustments are complete to save this setting and move on to the
20 mA adjustment.
6.17 20 mA Adjustment
This menu operates similar to the previous menu. This menu outputs a constant 20 mA while allowing
for a small amount of adjustment. The adjustment can be made using the and buttons. The
adjustment limits are ± 1000 counts or about ± 1 mA.
This setting will be slightly different on each instrument as each Turb 2000 series will be factory set to
20.00 mA.
6.18 Saving configuration settings
If extended settings are set to OFF, pressing the OK button will save all settings and the instrument will
automatically return to the normal AUTO mode of the instrument.
If extended settings are set to On, after the last menu of the extended settings, pressing the OK button
will save all settings and the instrument will automatically return to the normal AUTO mode of the
instrument.
The CONFIG menu may be used at any time to reset or change any of the parameters. The CONFIG
menu may be exited at any point in the menu by using the MODE/EXIT key. Any features that have
been modified will be saved.
