Publication No. 150-049106 Page 41/42
Section 3 – Electrical Installation

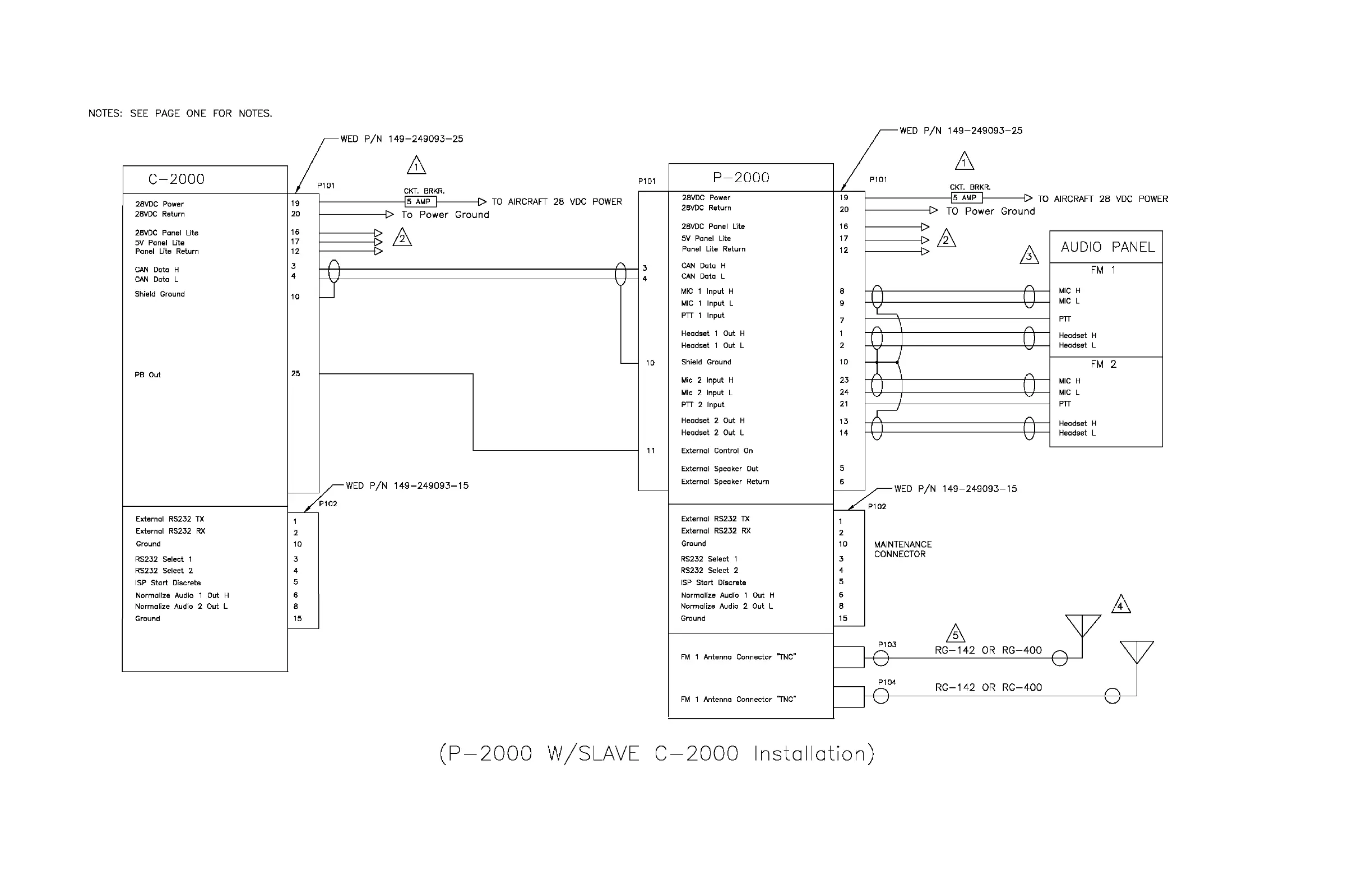

Figure 3-1c. Installation Wiring Diagram (Sheet 3 of 3) (Dwg. No. 152-249109, Rev C)
These commodities, technology or software are controlled in accordance with the United
States Export Administration Regulations, Export Classification Control Number (ECCN)
7E994. When exporting, diversion contrary to U.S. law is prohibited.
