Operation -- “Express” Hot Pressure Washer Trailer
Filling The Tank
The water tank on the “Express” Hot Pressure Washer
Trailer can be lled by two means: (1) through the anti-
siphon ll tube (2) through the garden hose tting.
Note: Open the ball valves by turning the handle parallel
to the ow. Close the valve by turning the handle perpen-
dicular to the ow.
To ll the tank through the anti-siphon ll, remove the tank
lid, couple the ll hose to the anti-siphon coupler and turn
the water source on as shown in Figure B1.
The tank can be lled though the garden hose tting. This
should only be used when the water source is a closed
system such as a private well. Most municipal water sys-
tems require the use of the anti-siphon ll to prevent any
possibility of any water siphoning from the tank back into
the water system.
To ll the tank through the garden hose tting, remove
the hose from the hose wrap and couple the hose to the
garden hose tting as shown in Figure B2. Open the tank
valve and open the ll valve.

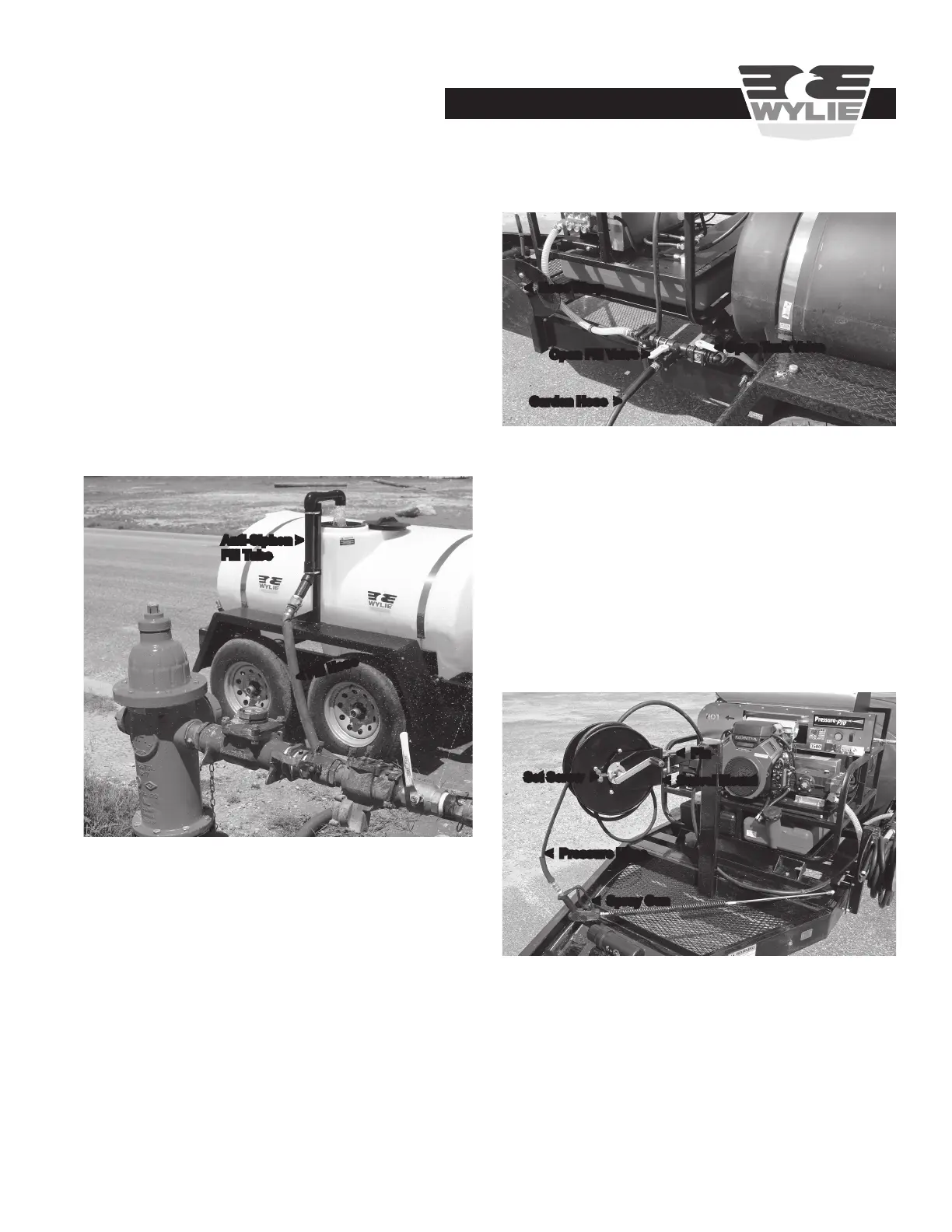

Figure B1
Filling Through the Anti-Siphon Fill
Anti-Siphon >
Fill Tube
< Fill Hose
< Open Tank Valve
Garden Hose >
Open Fill Valve >
< Hose Wrap
Figure B2
Filling Through the Garden Hose Fitting
When the tank is full, close the ll valve. Remove the hose
from the tting and roll up on the hose wrap.
Operating the Pressure Washer
It is recommended to roll out the pressure hose before
starting the pressure washer. Remove the pins and swivel
the hose reel in the desired direction. Loosen the set screw
to release the hose reel. Quick couple the spray gun to the
pressure hose.
Operation -- “Express”
Set Screw >
< Pin
< Swivel Mount
< Pressure Hose
< Spray Gun
Figure B3
Pressure Hose 180º Swivel Hose Reel
