Wylie Express - 1,250 Gallon Trailer Assembly

26

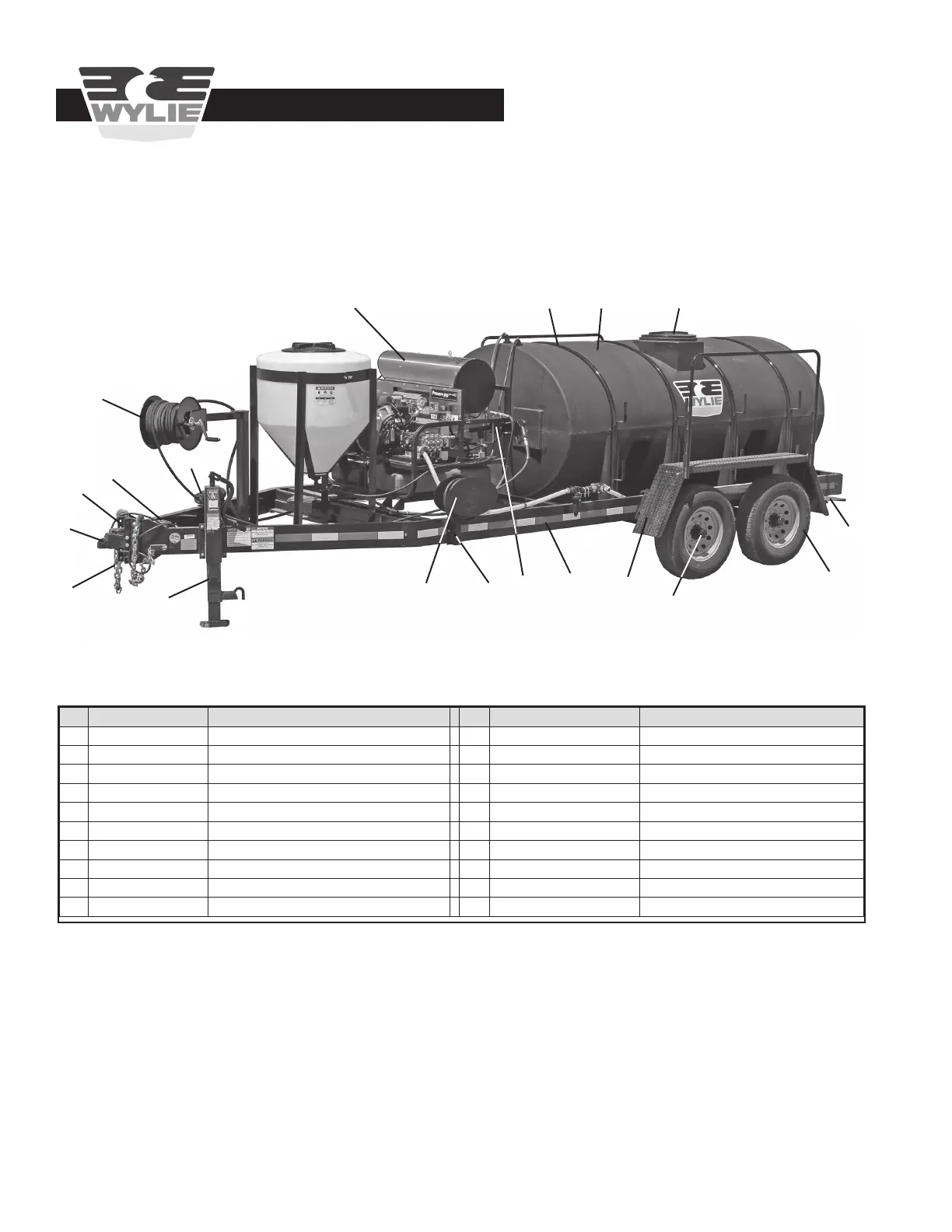

“Express” Trailer Frame
EXP-1250-HOTG 1,250 Gallon w/gas engine hot pressure washer
No. Part No. Description No. Part No. Description
1 07678-81K 2 5/16” Ball Hitch, 20K 10 352060 16” Tank Lid
2 W121124-K Bolt-on Hitch Kit 11 W1241-STEP/7 Bolt-on Step
3 SC70-39 Safety Chain Kit 12 660865831314115 235/80R16E Wheel & Tire
4 W127802-7 7” Channel Dropleg Jack, 10K 13 TS70895730865EBC 7K Electric Brake Axle, Accu-Lube
5 50-85-315 Breakaway Brake Control 14 W1203-T3/7 Fender
6 M10-5-14K Hose Reel, 100’x½”, 3,000 PSI 15 W127203 Frame
7 6012PRO-20G Pressure Washer, Gas, GX630 Honda
16
W930126K Gun Holder
8 W124305 Tank Hoop 17 W124562 Garden Hose Wrap Mount
9 T1250LDBK 1,250 Gal. Eliptical Leg Tank
18
W540105 Hose Wrap
19
67670-K Operator Manual Canister
13
12
3
2
4
6
5
7 98
1
10
11
Axles & Hubs
on Page 27
See Page 29, 30
For Plumbing
Breakdown
17
16
15
14
See Pressure
Washer manual
for pressure
washer parts
18
19
