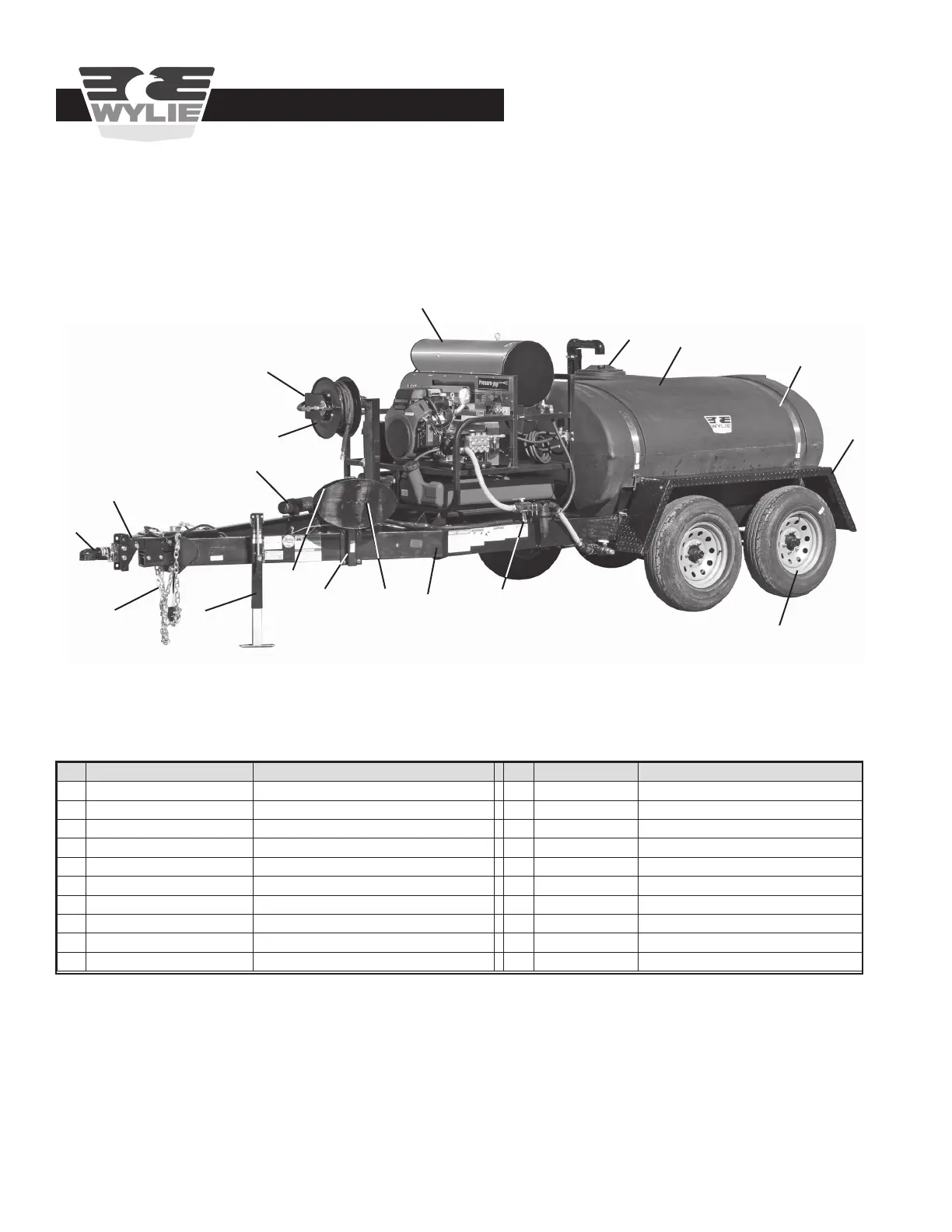

Wylie Express - 500 Gallon Trailer Assembly

24
“Express” Trailer Frame
EXP-500L-S-HOTG 500 Gallon w/gas engine pressure washer
EXP-500L-S-HOTD 500 Gallon w/diesel engine pressure washer
13
12
3
2
4
6
5
7
9
8
1
No. Part No. Description No. Part No. Description
1 05557-81 2 5/16” Ball Hitch 10 T500HELNK 500 Gal. Ellip. Leg Tank w/lid
2 8759138 DA91 Surge Brake Actuator 11 W720109 #12-T-2” x 92” (88”) Tank Band
3 SC43-49 Safety Chain Kit 12 W124547 LH Fender
4 HD500-SWL-TMR-PZ-M Side Wind Jack W124548 RH Fender
5 67670-K Operator Manual Canister 13
34774 ST225/75D15 Wheel & Tire
6 M5-5-14K Hose Reel, 50’x½”, 3,000 PSI 14 W520107 Strainer Mount
7 W930207K Hose Reel Mount 15 W124561 Frame
8 6012PRO-20G Pressure Washer, Gas, GX630 Honda 16 W540105 Hose Wrap
6012PRO-40KLDG Pressure Washer, Diesel 26 Kohler
17
W124562 Garden Hose Mount
9 TLVA10 10” Tank Lid 18
98108797 5/8”x25’ Water Hose
10
11
Axles & Hubs
on Page 27
See Page 29, 30
For Plumbing
Breakdown
18
17 16
15
14
See Pressure
Washer manual
for pressure
washer parts
