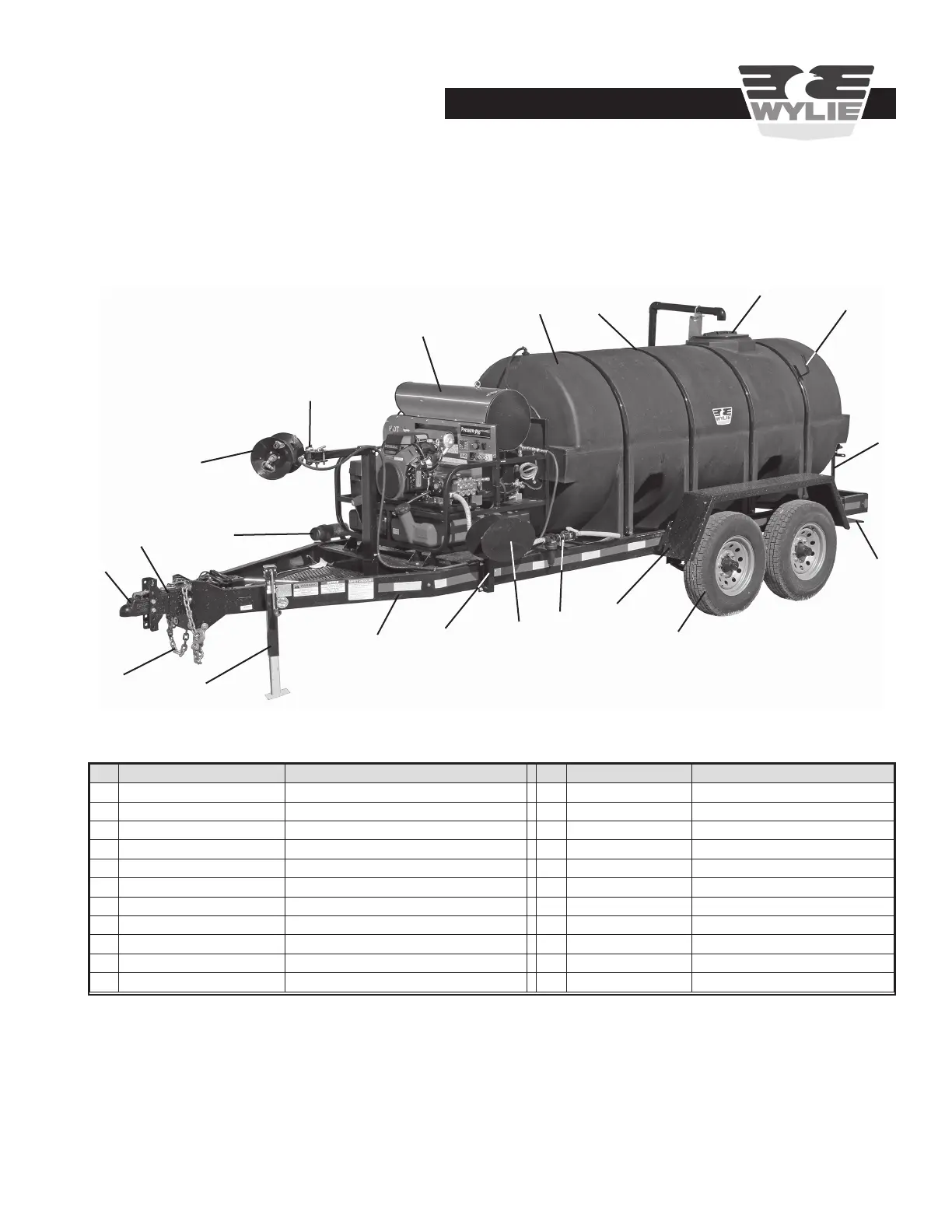

“Express” Trailer Frame
EXP-1025-HOTG 1,025 Gallon w/gas engine pressure washer
12
11
3
2
4
6
5
7
9
8
1
10
See Page 29, 30
For Plumbing
Breakdown
No. Part No. Description No. Part No. Description
1 07678-81K 2 5/16” Ball Hitch, 20K 12 W120502 Tank Hoop w/Hose Hook
2 W121121 20K Surge Brake Actuator 13 W124541 License Plate Bracket
3 SC70-49 Safety Chain Kit 14 W1241-STEP Bolt-on Step
4 HD500-SWL-TMR-PZ-M Side Wind Jack 15 660865831314115 235/80R16E Wheel & Tire
5 67670-K Operator Manual Canister 16 W124113 LH Fender
6 M5-5-14K Hose Reel, 50’x½”, 3,000 PSI W124114 RH Fender
7 W930207K Hose Reel Mount 17 W520107 Strainer Mount
8 6012PRO-20G Pressure Washer, Gas, GX630 Honda 18 W540105 Hose Wrap
9 T1025LSBK 1,025 Gal. Black Slope Tank
19
W124562 Garden Hose Mount
10 W120502 Tank Hoop 20 W124128 Frame
11 352060 16” Tank Lid
13
20
19
18
17
16
15
14
Axles & Hubs
on Page 27
See Pressure
Washer manual
for pressure
washer parts
