Sight Gauge/Bypass Plumbing

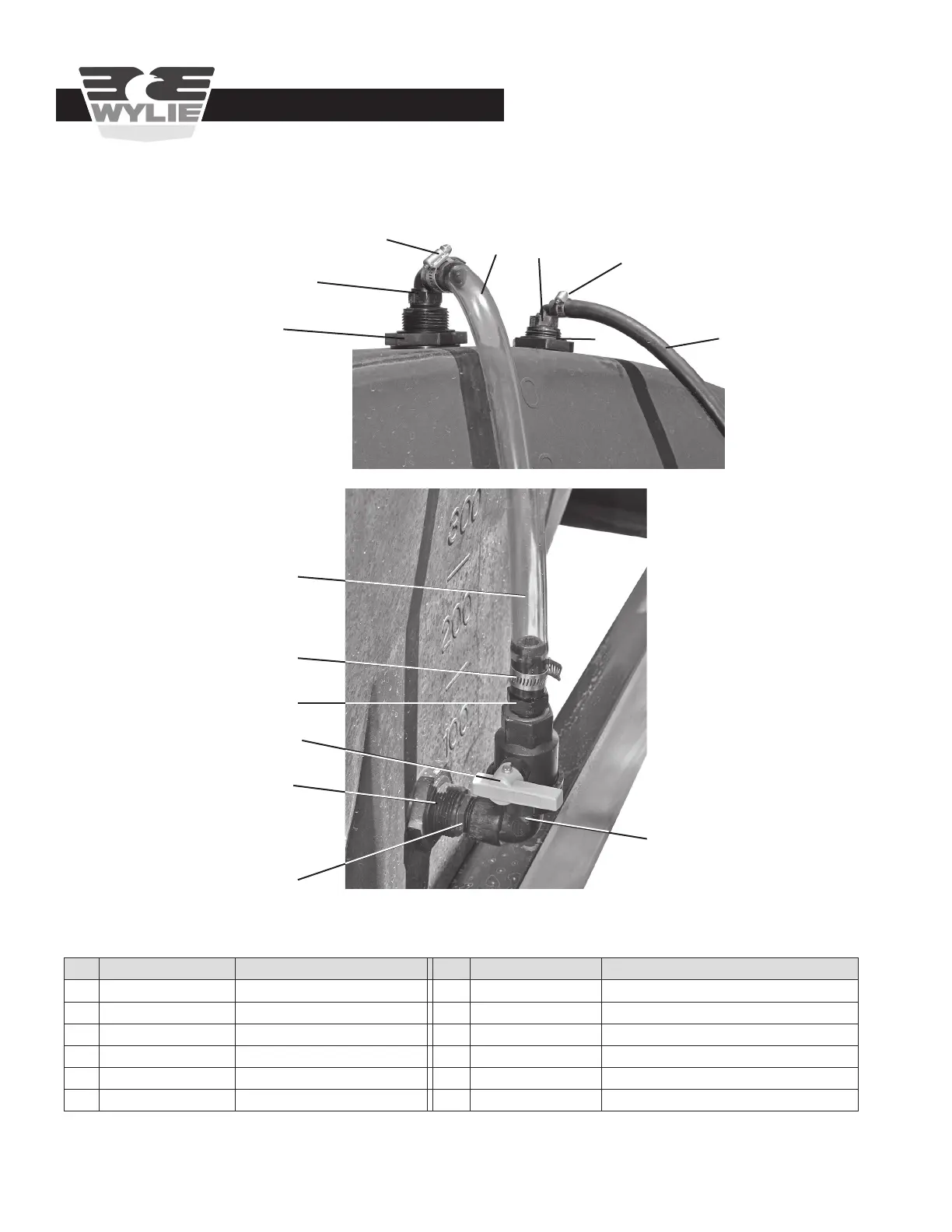

“Express” Plumbing
No. Part No. Description No. Part No. Description
1 62798 ¾” Bulkhead Fitting 7 SL075-90 ¾” Street El
2 HB075-90 ¾” Hose Barb, 90º 8 NIP075-SH ¾” Short Nipple
3 1012 ¾” Hose Clamp 9 2-200-050 ½” Rubber Hose
4 4-035-075 ¾” Vinyl Tubing 10 08-MC ½” Hose Clamp
5 HB-075 ¾” Hose Barb 11 HB050-90 ½” Hose Barb, 90º
6 UV-075FP ¾” Single Union Valve 12 62834 ½” Bulkhead Fitting
12
7
11 10
8
9
4
5
6
3
1
2
4
3
1
