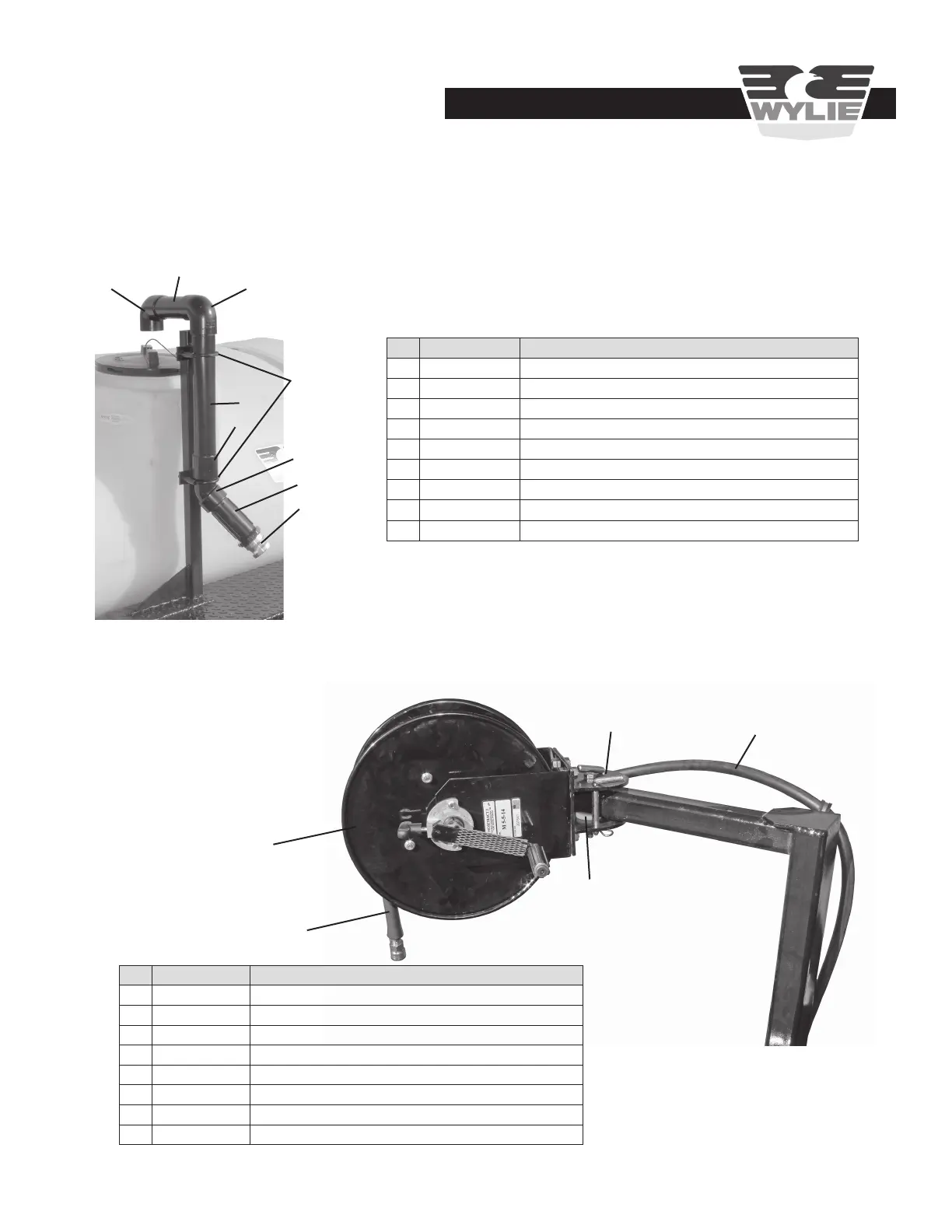

Wylie Express - Anti-Siphon Fill Kit; Hose Reel Assembly

31
“Express” Accessories
W1245FILL Anti-Siphon Fill Kit (500 gal.)
W1241WT-FILL Anti-Siphon Fill Kit (1,025, 1,250 gal.)
1
3
4
5
6
7
2
2
No. Part No. Description
1 406-020 2” 90º PVC Elbow
2 2”PVC PIPE 2” PVC Pipe, Sch 40
3 3042T33 2½” Mu󰀪er Clamp
4 435-020 2”FPTx2” Slip Adap. PVC
5 SL200-45 2” Street Elbow 45
6 NIP200-6 2” x 6” Poly Pipe Nipple
7 AL-A200 2” AL Male Coupler w/ 2” FPT
W124509 Stabilizer Bracket, 1025, 1,600 (not shown)
W124507 Mount Bracket, 1,025, 1,600 (not shown)
1
M5-5-14K Hose Reel Assembly (50’ hose)
M10-5-14K Hose Reel Assembly (100’ hose)
No. Part No. Description
1 AHS230 50’ 3/8” 4,200 PSI Pressure Hose
AHS235 100’ 3/8” 4,200 PSI Pressure Hose
2 M5-5-14 Hose Reel, 50’ Hose
M10-5-14 Hose Reel, 100’ Hose
3 W930207K Hose Reel Mount, 50’ Reel
W930206K Hose Reel Mount, 100’ Reel
4 HR2C08-500 ½” High Pressure Hose
5 V0169 2” UHMW Washer
1
2
4
3
5
