XAG P40 - Cable Connection Guide; ESC Power Cable Connection

www.xa.com/en
8
Cable Connection
Connect ESC Power Cables

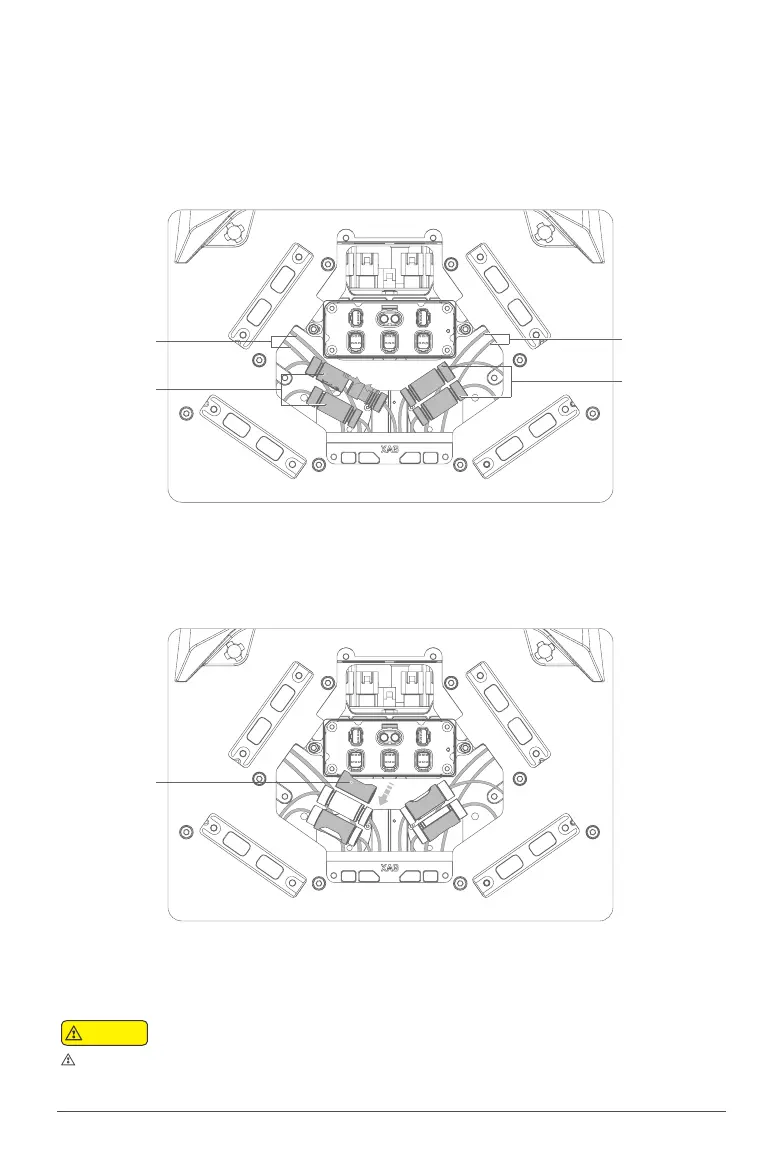

Upon Arms assembly, push the ESC Power Cables of Arm No.1 & No.2 into the hole of the Bottom Central
Compartment and connect to those of arm No.3 & No.4. (The red connector 󽗉ts only to the other red
connector while the black one connects to the other black one).
Lock ESC Power Cables of Arm No.3 & No.4 with Fastener.
Please remove the Fastener preceding connection of ESC Power Cables of Arm No.1 & No.2 and
lock the Fastener back upon connection lest the connector get loose.
Fastener
Arm No.2
ESC Power Cable
Arm No.3
ESC Power Cable
Arm No.4
ESC Power Cable
Arm No.1
ESC Power Cable
Warning
